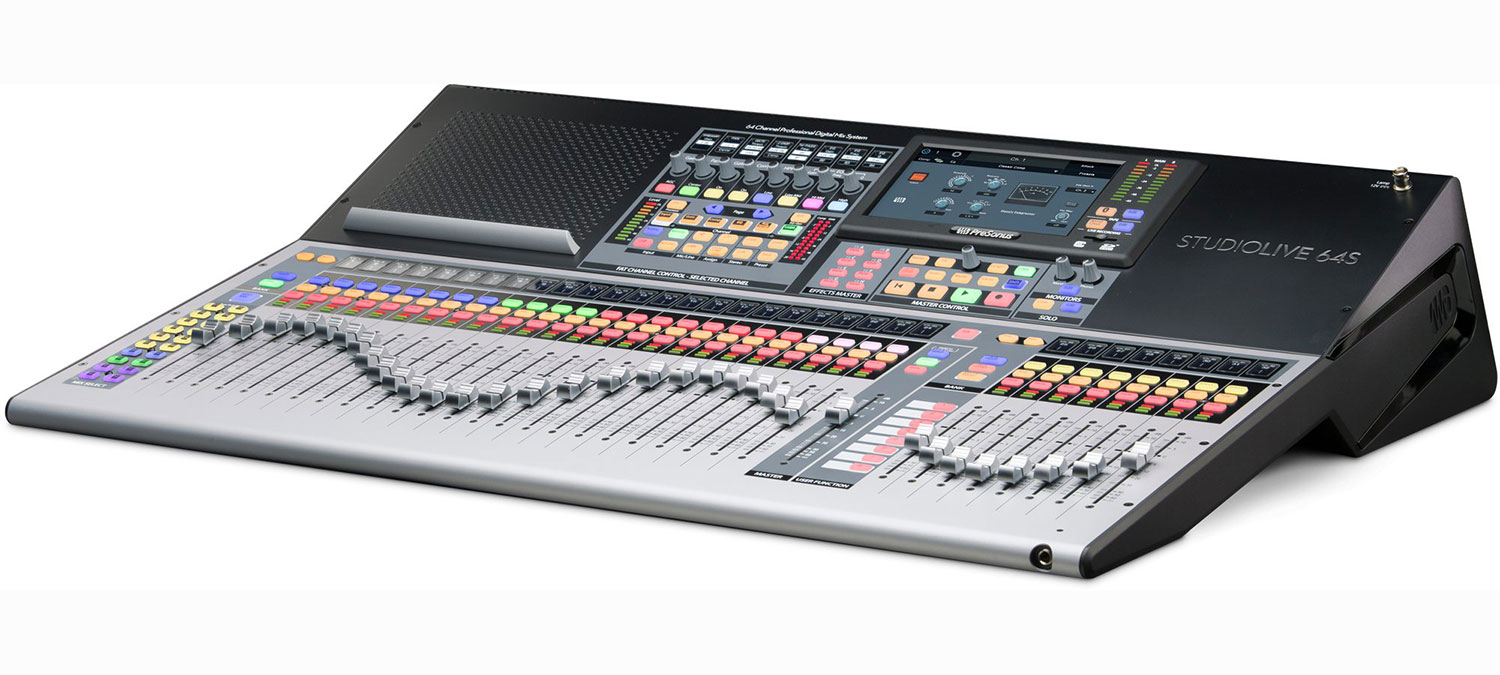

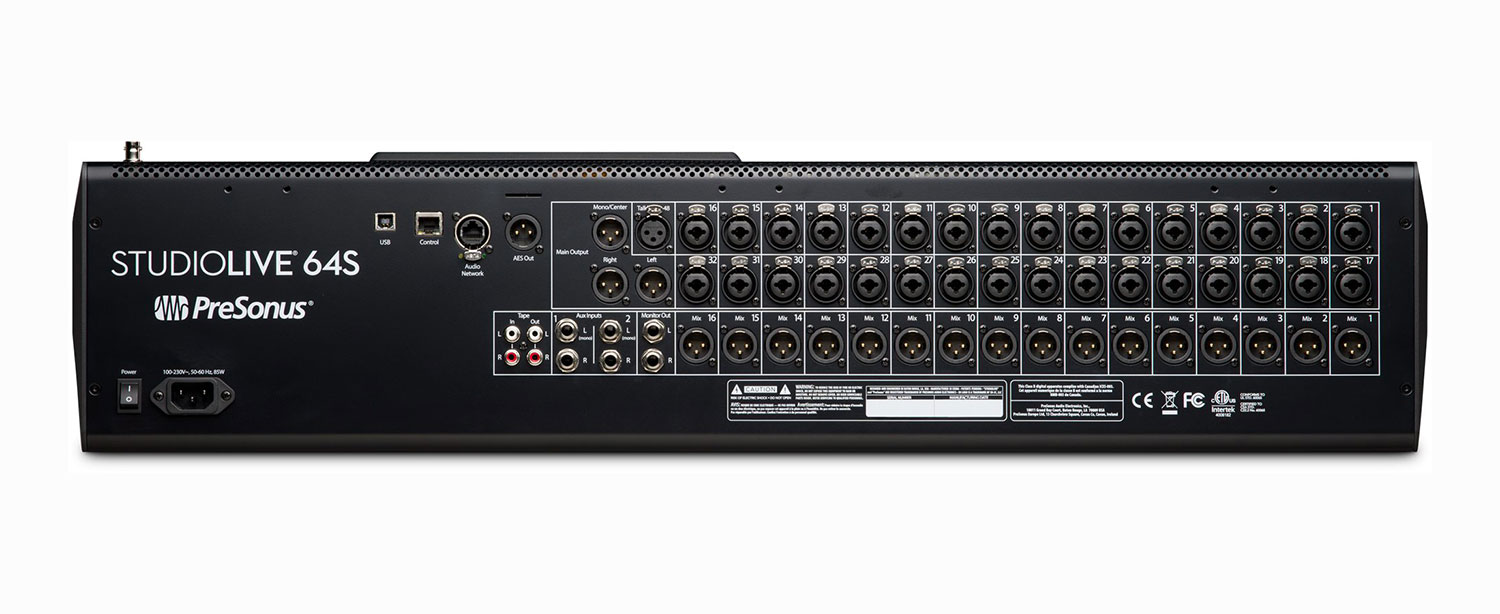

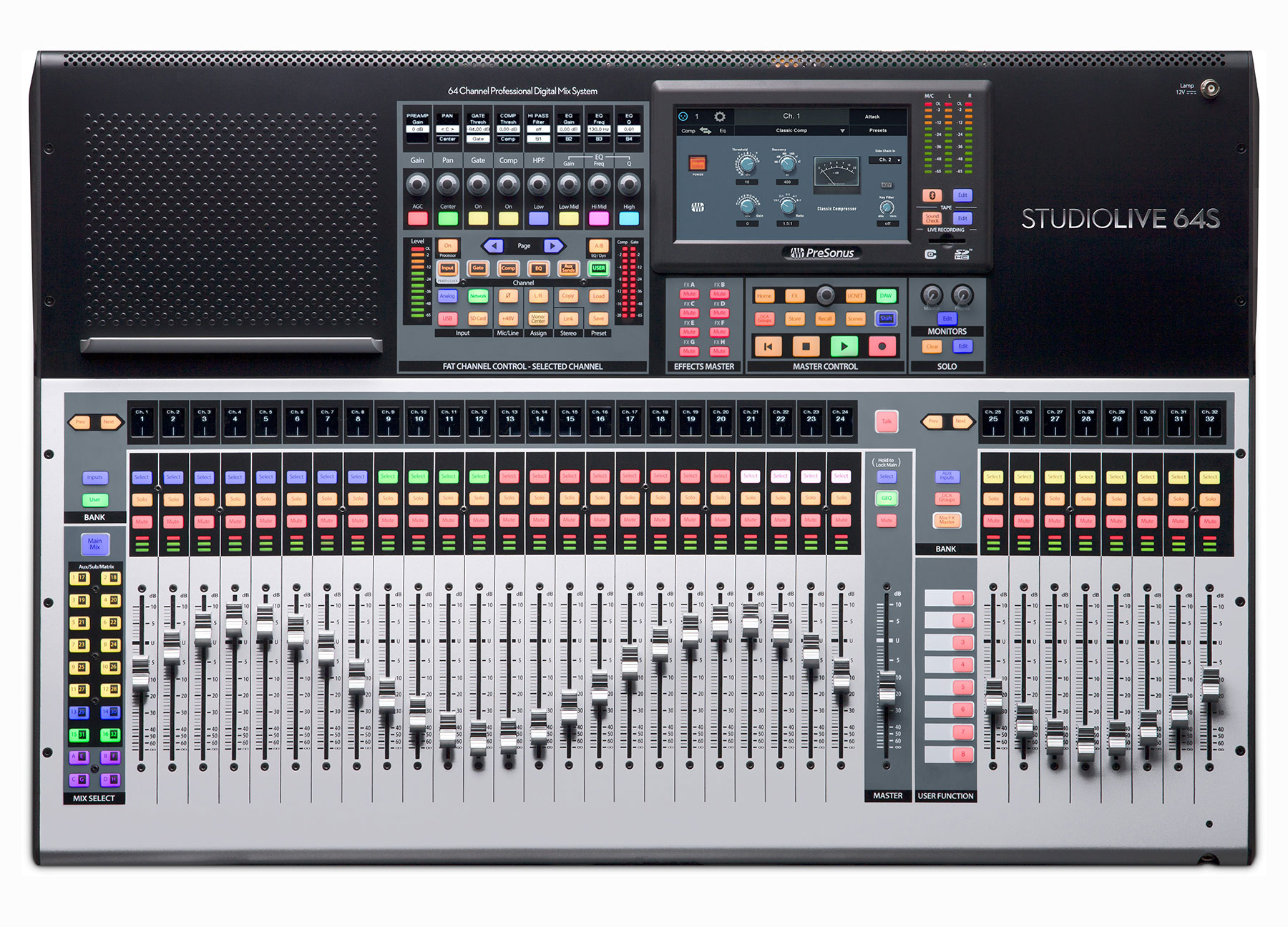

Presonus StudioLive 64S, digital audio mixer with 64 channels that offers the processing power of large consoles in a compact format. Equipped with the new quad-core PreSonus FLEX DSP engine, the StudioLive 64S is capable of processing 76 channels, 43 mix buses, and 526 simultaneous processors - including 8 stereo reverb systems and Fat Channel plugin models on each input channel and mix bus.
With 128 (64x64) USB channels for recording, 128 AVB I/O channels, flexible routing options, and studio-level audio quality, the StudioLive 64S mixer provides an exceptional experience.
Viewed as an integrated module within a complex ecosystem, Presonus StudioLive 64S also efficiently and ergonomically integrates recorder components, multichannel USB audio interface, SD card reader, Bluetooth communication module, and AVB-compliant equipment interconnectivity interface (avoiding a proprietary standard that would require the purchase of additional modules or accessories to ensure compatibility, relevant in the case of exiting the manufacturer's ecosystem), dedicated DSPs for audio processing, and software. The implementation set makes redundant any purchase of equipment that would be complementary in other competing cases (audio interface, recorder, external audio processors, communication modules, etc.), directly contributing to environmental protection.
33 motorised faders, touch-sensitive
76 input channels, 32 XMAXX preamps:
64 x individually controllable channels via the 32 analog inputs with XMAX preamps or/and AVB, USB or SD
2 x stereo auxiliary inputs, balanced
1 x stereo tape (RCA, Bluetooth, USB, AVB or SD)
8 x Flex FX returns
1 x Talkback
43 x mix buses:
32 x FlexMix that can be Aux, Subgroup, Matrix
8 x dedicated Flex FX buses
Main stereo bus
Main Mono/Center bus with channel sends and Center Divergence allowing LCR mode
526 simultaneous processors:
HPF
Gate / Expander
Compressor with Fat Channel plugin models
Parametric EQ with 4 or 6 bands with Fat Channel plugin models
Limiter
Graphic EQ with 31 bands
8 x Flex FX slots with emulations of renowned reverbs and delays
compressor and EQ plugins State Space-Modeled Fat Channel available on each input and output bus
Flex FX multi-effects processor with 8 locations and 8 dedicated effect buses
24 x DCAs for controlling channel groups
USB recording on 128 channels, 64 x 64
integrated SD recorder 34 x 34 with Virtual Soundcheck mode
networking via AVB, 64 x 64 channels for connecting to NSB stage boxes, EarMix 16M, other mixers etc.
user profile system: allows setting different rights for different operators
digital patching per channel from any analog source, AVB, USB or SD
7" touchscreen
Bluetooth 4.1 Stereo on the Tape channel
dynamic range: 115 dB (A-wtd, 48 kHz)
AES/EBU Output
internal processing: 32-bit, floating point
sampling rate: 24 bits 48 kHz, 44.1 kHz
DAW control:
advanced integration with Studio One
MCU emulation mode for Logic
HUI emulation for ProTools
software:
UC Surface: fully controllable remotely via computer, iPad or Android tablets
QMix-UC: monitoring software via Android/iOS tablets/phones
Capture: with Automated Virtual Soundcheck and scene storage along with the audio source
