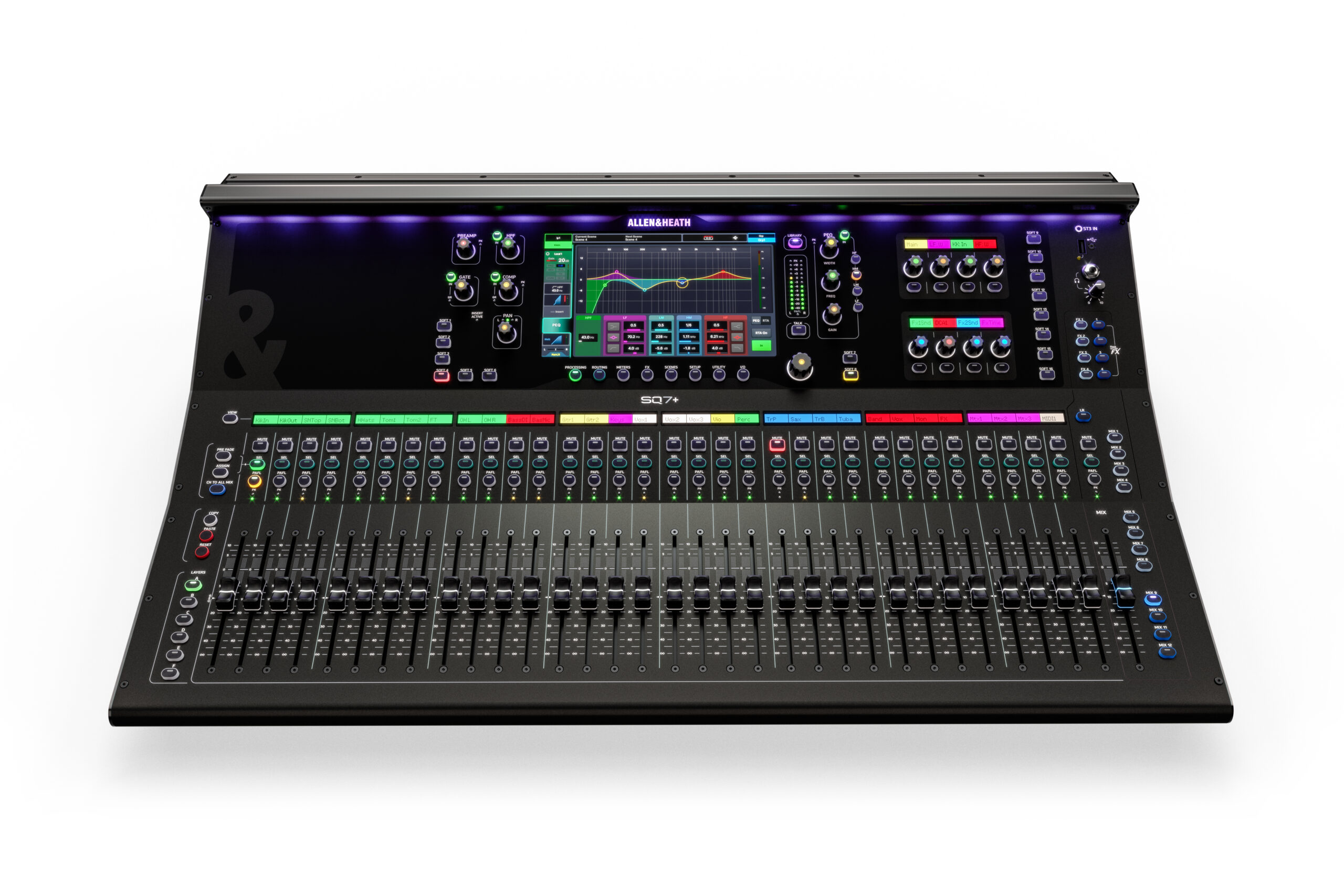

Allen & Heath SQ7+, a digital mixer with XCVI Core processing at 96 kHz, configured for live mixing, studio, broadcast or corporate A/V applications. It features 48 mixing channels, 32 microphone preamps with XLR connectors, 33 motorised faders of 100 mm and a 9" capacitive touchscreen with a dark GUI interface. It includes 8 RackExtra FX engines and 4 RackUltra FX, complete processing on channels and mixes (high-pass filter, parametric/graphic EQ, compressor, gate), a 32x32 USB audio interface and an Intelligent SLink 128x128 port for audio expansion and integration with other Allen & Heath systems.
32 microphone preamps
9 inch capacitive touchscreen
FPGA XCVI Core processing at 96 kHz
16 programmable Soft Keys
4 RackUltra FX engines with dedicated return channels
32 x 32 USB audio interface
12 mono/stereo mixes + 3 stereo matrices
LCD displays for channels
SLink port for remote audio and expansion
Audio and processing:
XCVI Core: 96 kHz
Inputs to mix: 48
Stereo Aux/Group mixes + LR: 12
Linkable mono matrices: 6
Channel and mix processing: HPF, PEQ/GEQ, Comp, Gate
Compatibility: DEEP Processing
Rack Extra FX engines: 8 with dedicated send and return channels
RackUltra FX engines: 4 with dedicated send and return channels
Digital I/O:
Intelligent SLink 128x128 port: Everything I/O expansion and connection to other A&H consoles
I/O port: compatible with optional SLink, Dante, Waves and MADI cards
Stereo AES3 digital output: 1
USB recording and playback:
USB A interface: 16 channels at 96 kHz
USB A interface: 32 channels at 48 kHz
USB B interface: 32x32 at 96 kHz
USB B interface: 32x32 at 48 kHz

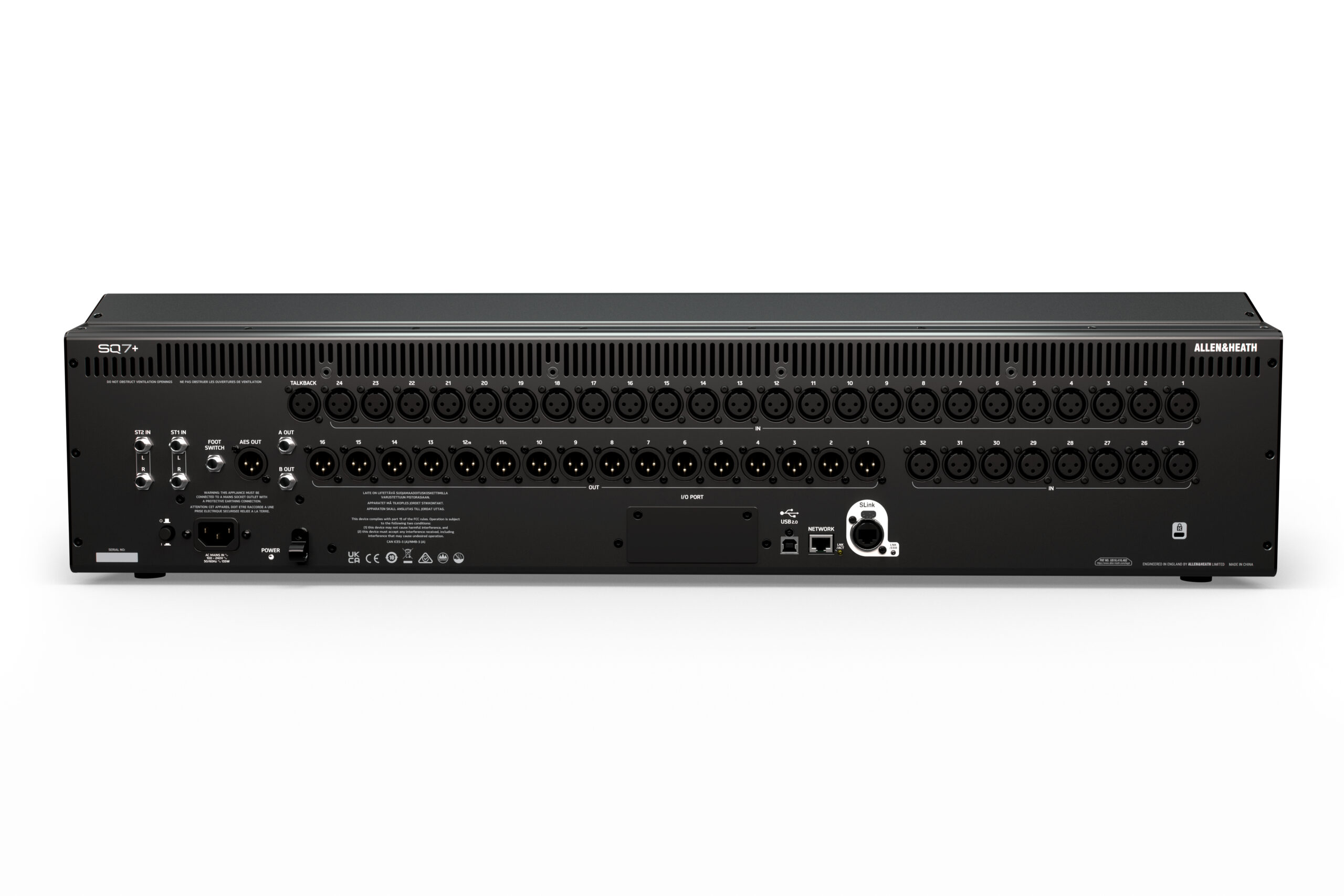

Analog I/O:
XLR microphone/line inputs: 32
XLR outputs: 16
Stereo line inputs: 3 (4 x TRS 6.35 mm, 1 x TRS 3.5 mm)
XLR talkback connector: 1
TRS outputs: 2
Stereo headphone output
Control:
33 motorised faders of 100 mm
16 SoftKeys
8 programmable potentiometers (SoftRotaries)
6 Channel Strip layers
9 inch touchscreen with dark GUI interface
Footswitch connection: single/dual configurable
Remote control: free applications for Windows/macOS/iOS/Android
