Allen&Heath Xone:92 MK2

Allen&Heath Xone:92 MK2 – An analogue mixer designed for professional DJs and producers seeking advanced control and high-fidelity sound. With 4 Phono/Line channels and 2 dedicated Mic/Line channels, it offers excellent flexibility for any setup, from clubs to studios.

Equipped with fully analogue circuits, the Xone:92 MK2 integrates two independent VCF filters with HPF/BPF/LPF modes and fully adjustable parameters, along with a 4-band equaliser for precise sound shaping on each channel.

The crossfader is a mini innoFADER® Pro with adjustable transition curves and optimised sensitivity for creative mixing and fine scratching. The channel faders feature a global selector with 3 response curves for quick adaptation to each DJ's style.

Other features include high-quality RIAA preamps, extensive connections for complex routing, and a detachable dual grounding adapter for uncompromised connectivity.

• Analogue DJ mixer with 4 Phono/Line channels & 2 Mic/Line channels
• Channels: 4 main (CH 1–4), 2 microphone (MIC 1, MIC 2), 2 return (RTN 1, RTN 2)
• Channel corrections:
  • Gain
  • 4-band EQ
  • Dual filters
• Functions: Voltage Controlled Filter (VCF), Post EQ Monitor, Booth Mute, Crossfader curve adjust
• Faders:
  • Channels 1–4: 60 mm VCA, switchable curves
  • Crossfader: innoFADER Pro mini 45 mm, adjustable curves, replaceable
• Filters: 2 x stereo analogue VCF (HPF / BPF / LPF), assignable CH 1–4, with adjustable FREQ / RES / LFO
• MIDI: assignable CC + Note ON/OFF, 1 x DIN 5-pin
• VU meters: 9 LEDs (-20 dBu to +10 dBu) on channels and master
• Frequency response: 20 Hz – 30 kHz (+1 / -0.5 dB)
• Distortion (THD+N): 0.01% @ 1 kHz
• Crosstalk: < -90 dB between channels
• Headroom: +22 dB
• Background noise:
  • Master and Booth: -85 dBu (residual), -81 dBu (in mix)
  • Record RCA: -90 dBu
• Microphone gain: +30 dB, EIN = -126 dB
• RIAA gain: +35 dB @ 1 kHz
• Power supply: internal, 220V (SMPS), cable included

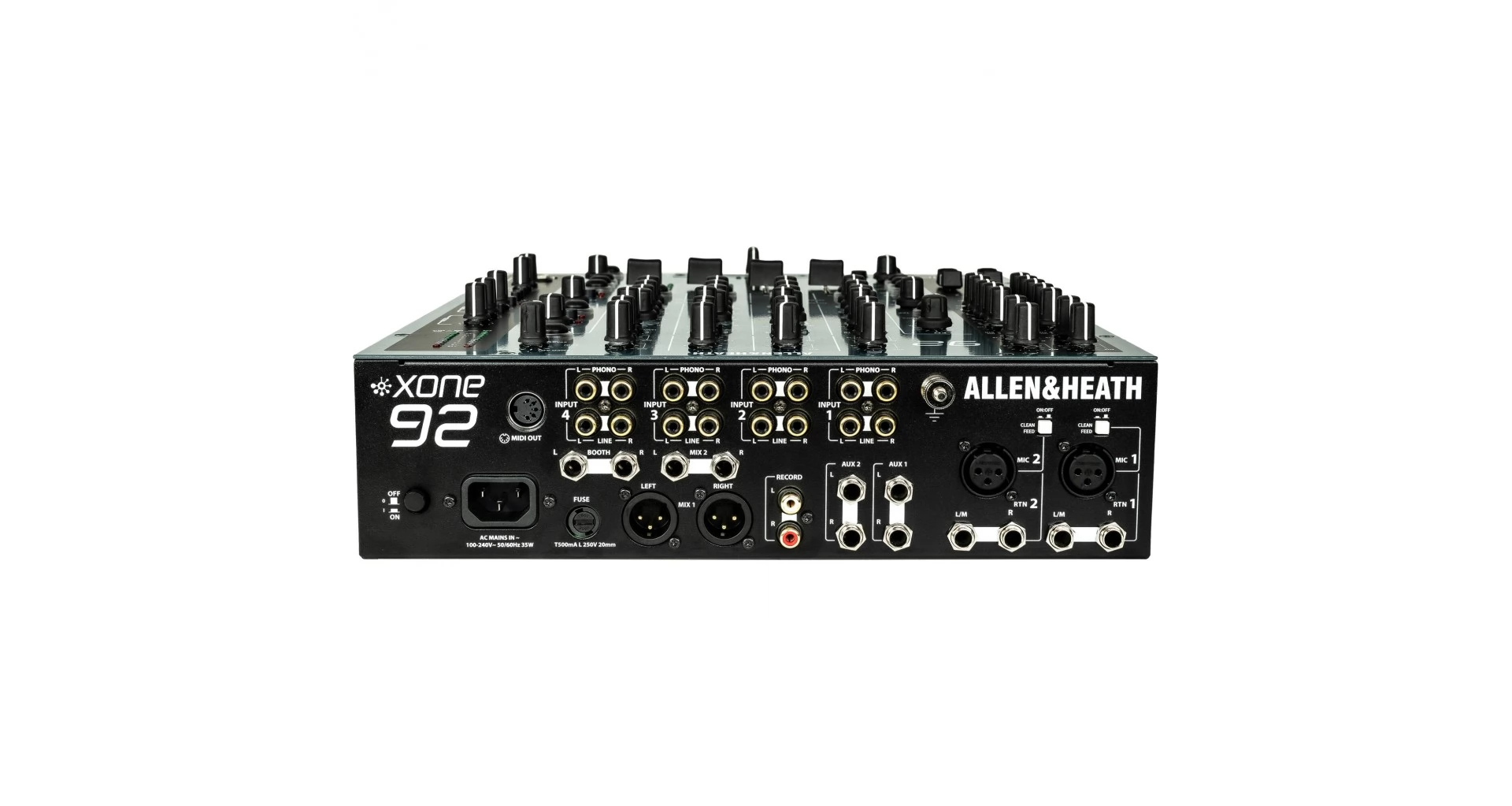

• Connections:
  • Inputs:
    • 2 x XLR (microphone)
    • 4 x RCA stereo (phono, CH 1–4)
    • 4 x RCA stereo (line, CH 1–4)
    • 4 x TRS 6.35 mm balanced (auxiliary: RTN 1, RTN 2)
  • Outputs:
    • 2 x XLR (Master 1)
    • 2 x TRS 6.35 mm (Master 2)
    • 2 x TRS 6.35 mm (Booth monitor)
    • 1 x RCA stereo (Record out)
    • 1 x TRS 6.35 mm stereo (headphones)
    • 1 x TRS 3.5 mm stereo (secondary headphones)
    • 4 x TRS 6.35 mm balanced (Aux send & return)
  • Send / Return: 2 x stereo
• In the package:
  • 1 x Allen & Heath Xone:92 MK2
  • Power cable
  • User manual
• Dimensions (L × H × D): 32 x 8.76 x 35.8 cm
• Weight: 6 kg
