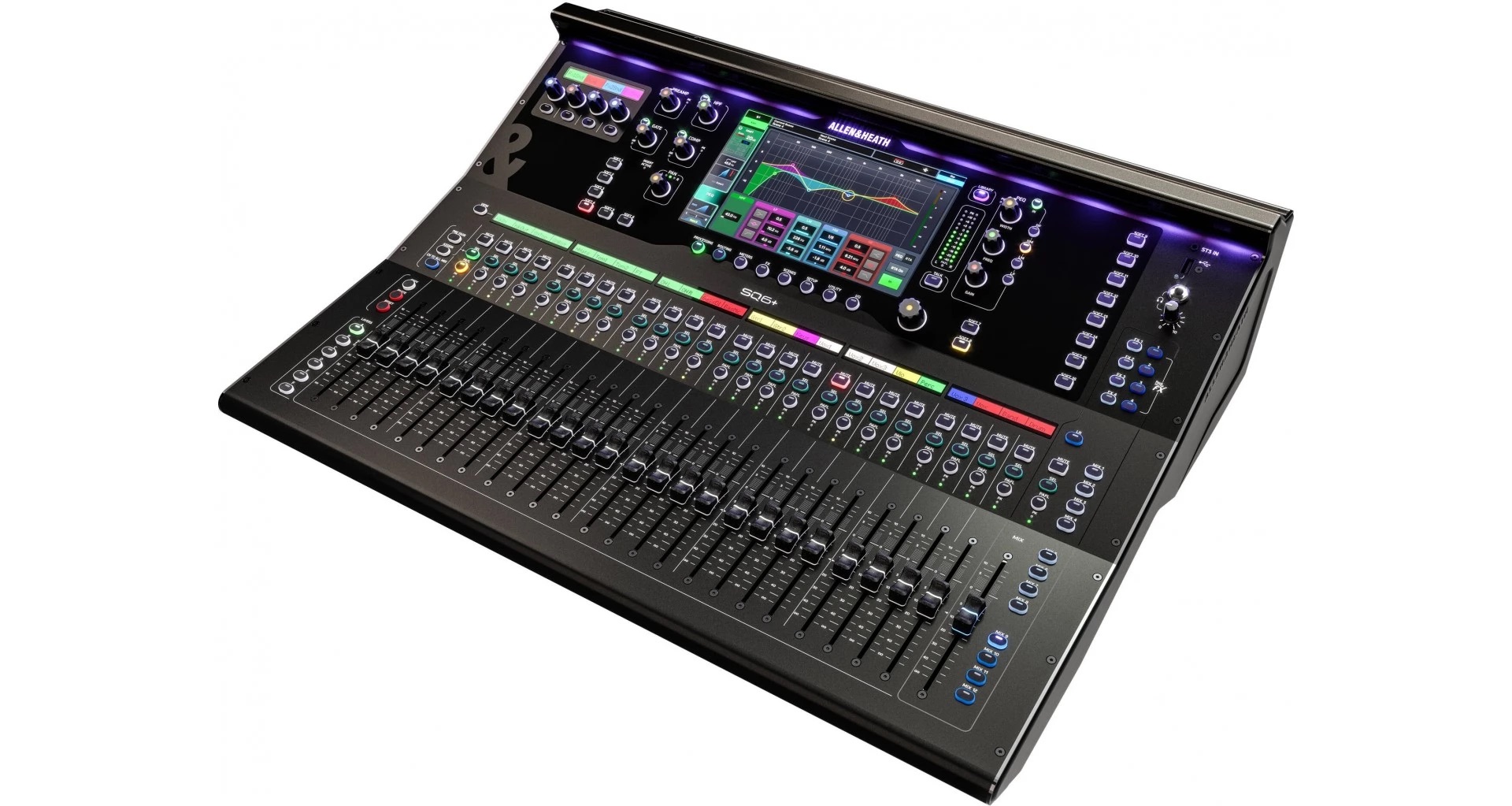

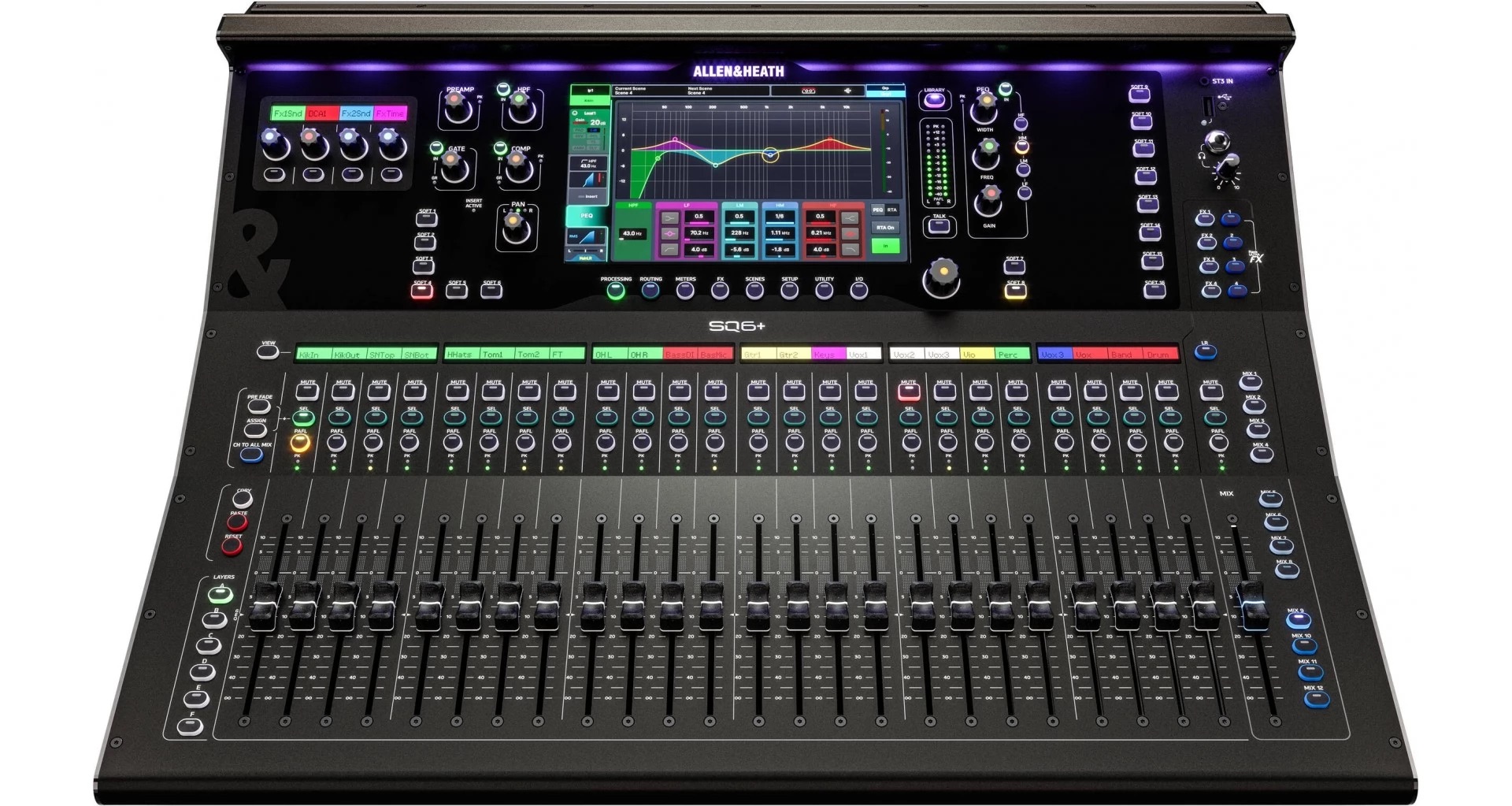

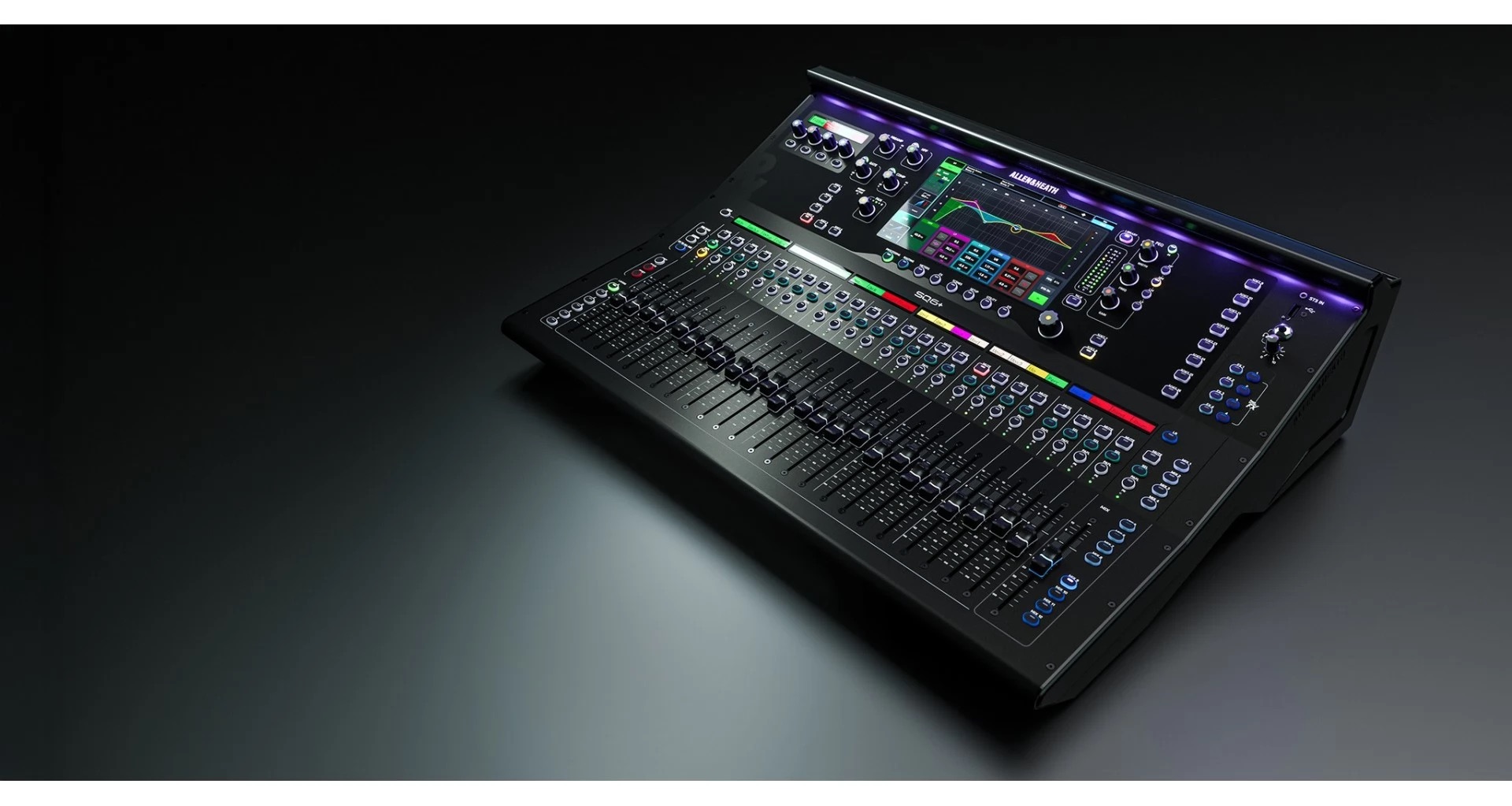

Allen & Heath SQ6+ - professional digital mixer with 48 channels, featuring 24 microphone preamps and a 9-inch touchscreen. The system operates at 96 kHz on an XCVI Core FPGA processing engine, providing advanced USB audio interface and effects processing.
Designed for live sound and studio use, with extensive I/O expansion options and remote control capabilities.
Professional digital mixer with 48 channels
Preamps: 24 x XLR microphone/line inputs
Processing: XCVI Core, 96 kHz
Inputs to mix: 48
Mixes: 12 mono/stereo mixes + 3 stereo matrix
Matrix: 6 mono/linkable
FX: 4 x RackUltra FX + 8 x Rack Extra FX
Channel processing: HPF, PEQ/GEQ, Comp, Gate
DEEP Processing: compatible
USB-B interface: 32 x 32 at 96 kHz and 48 kHz
USB-A interface: 16 channels at 96 kHz / 32 channels at 48 kHz
SLink: 128 x 128 for Everything I/O and connecting other A&H consoles
I/O expansion: support for SLink, Dante, Waves, and MADI cards
Digital output: 1 x AES3 stereo

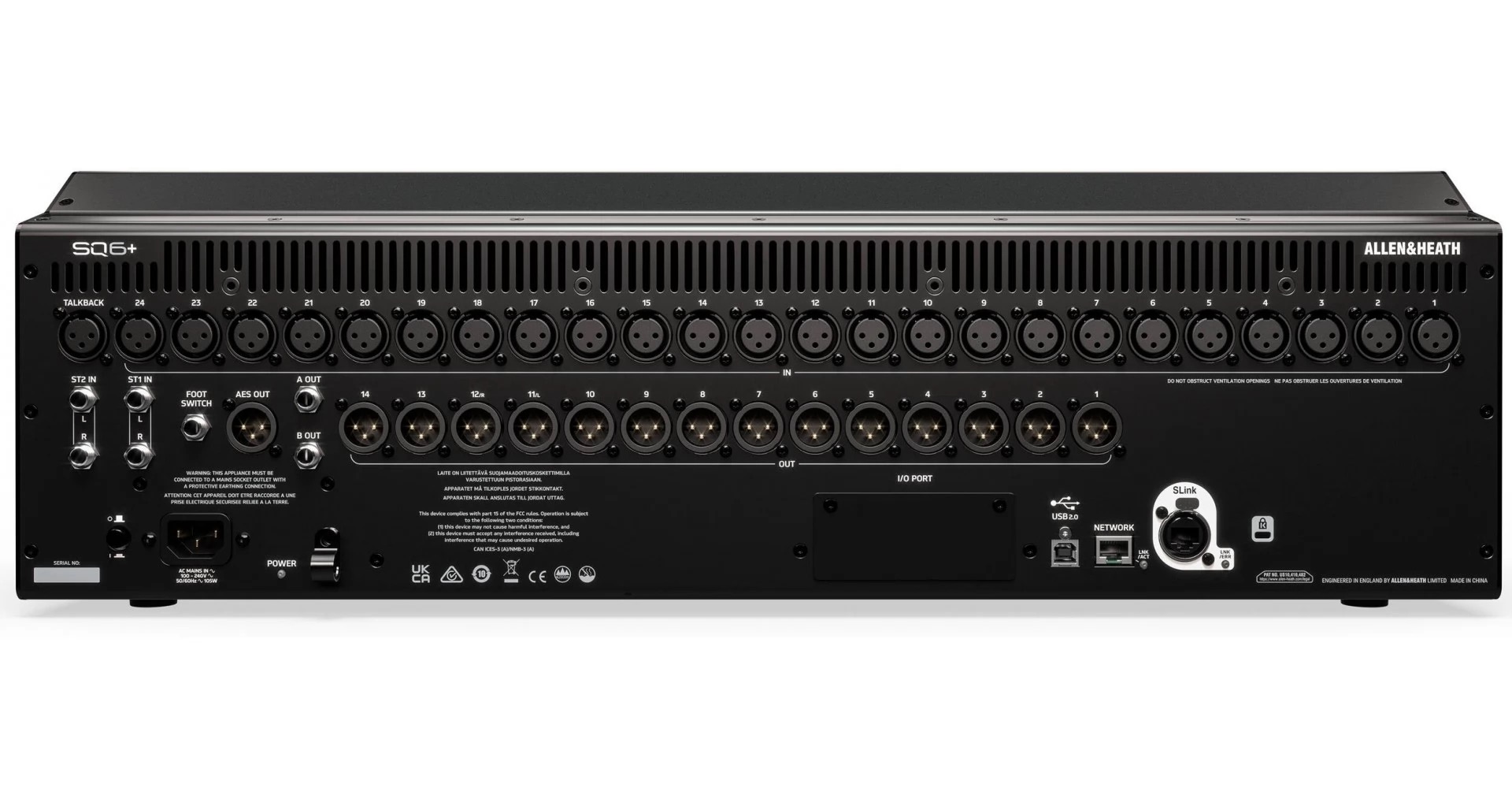

XLR outputs: 14
Stereo line inputs: 3
Additional I/O: 1 x talkback XLR, 2 x TRS, 1 x stereo headphone output
Faders: 25 x 100 mm, motorised
Soft Keys: 16
SoftRotaries: 4
Channel Strip Layers: 6

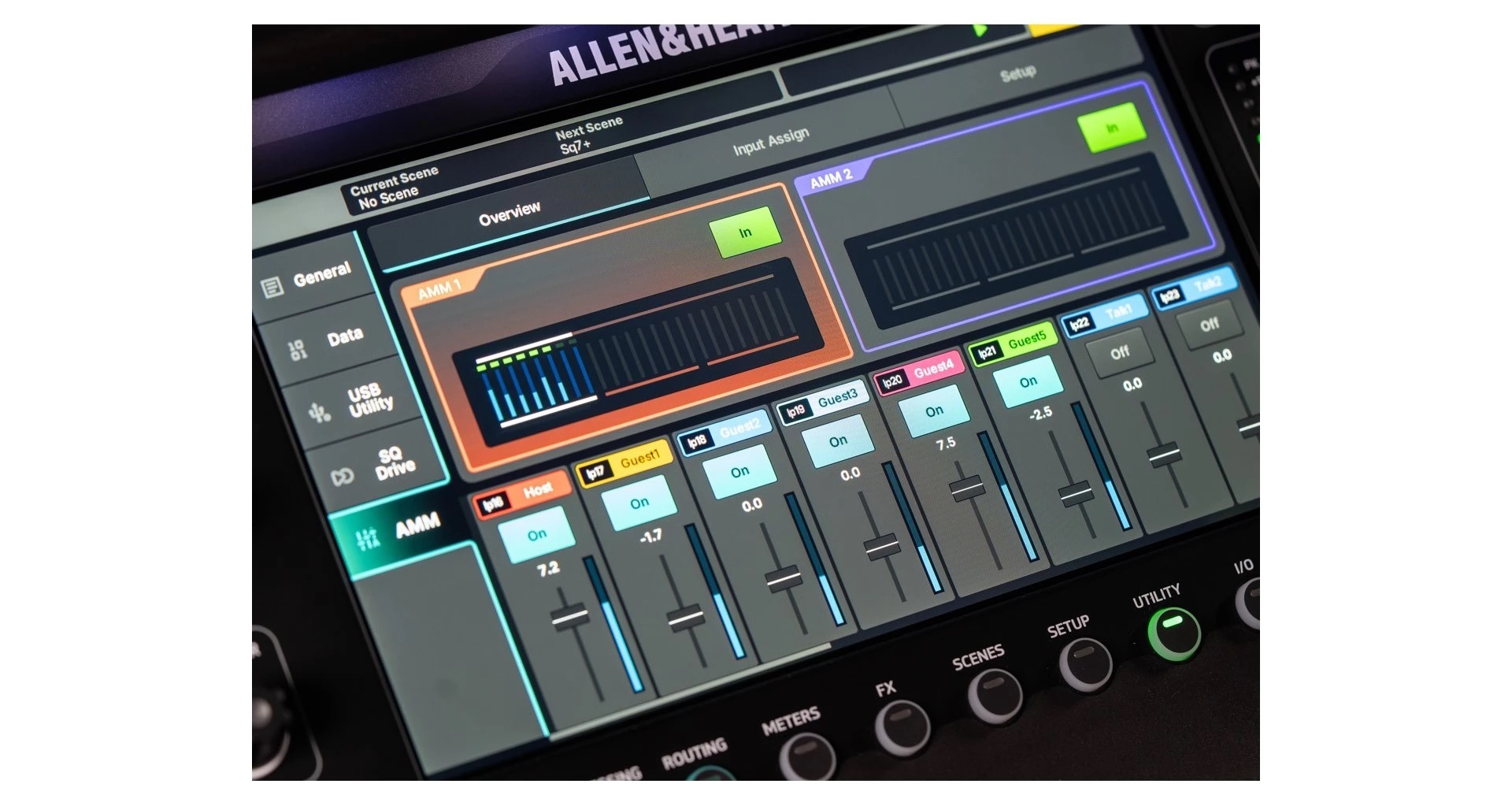

Display: 9" capacitive touchscreen, dark GUI interface
