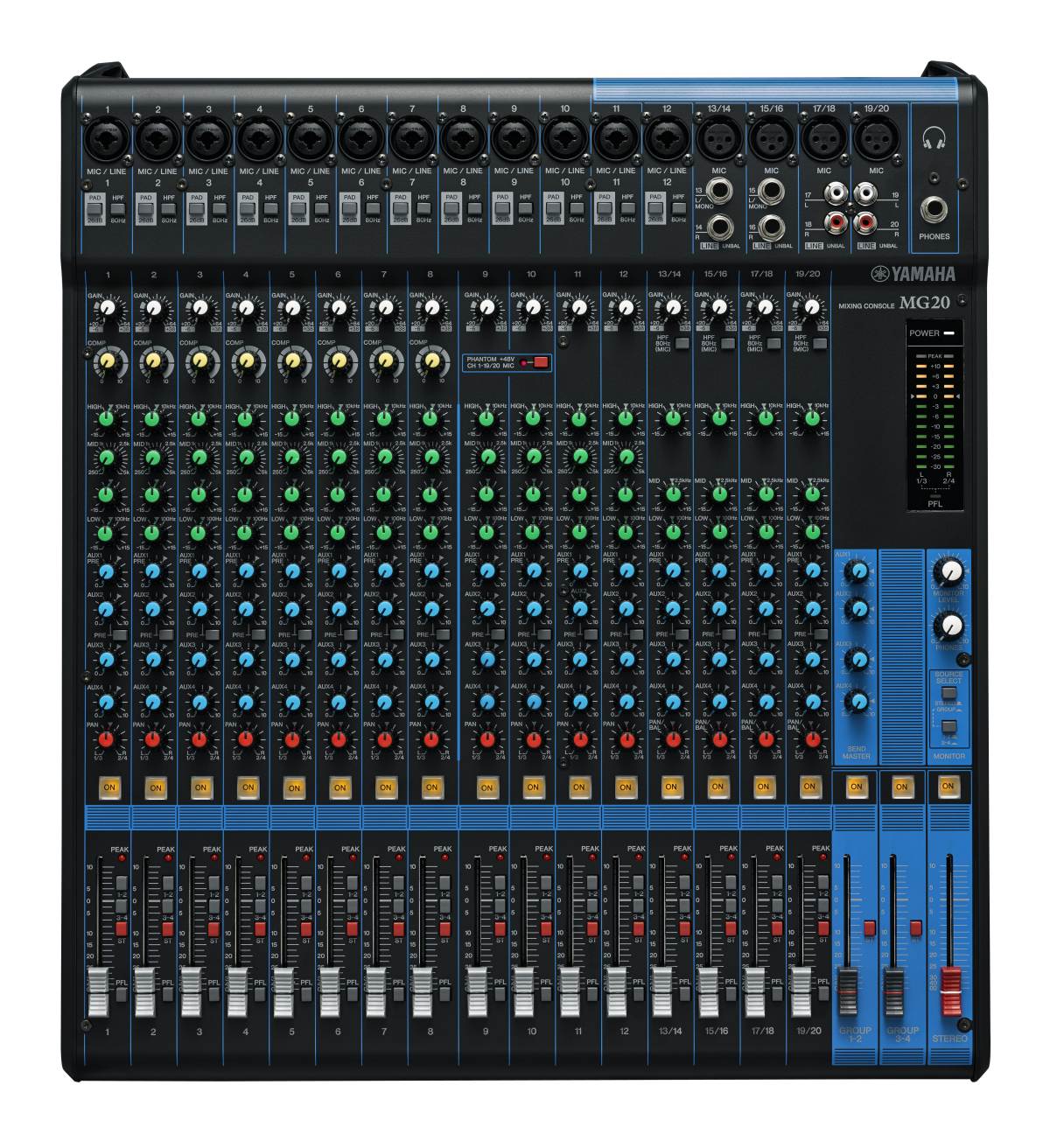

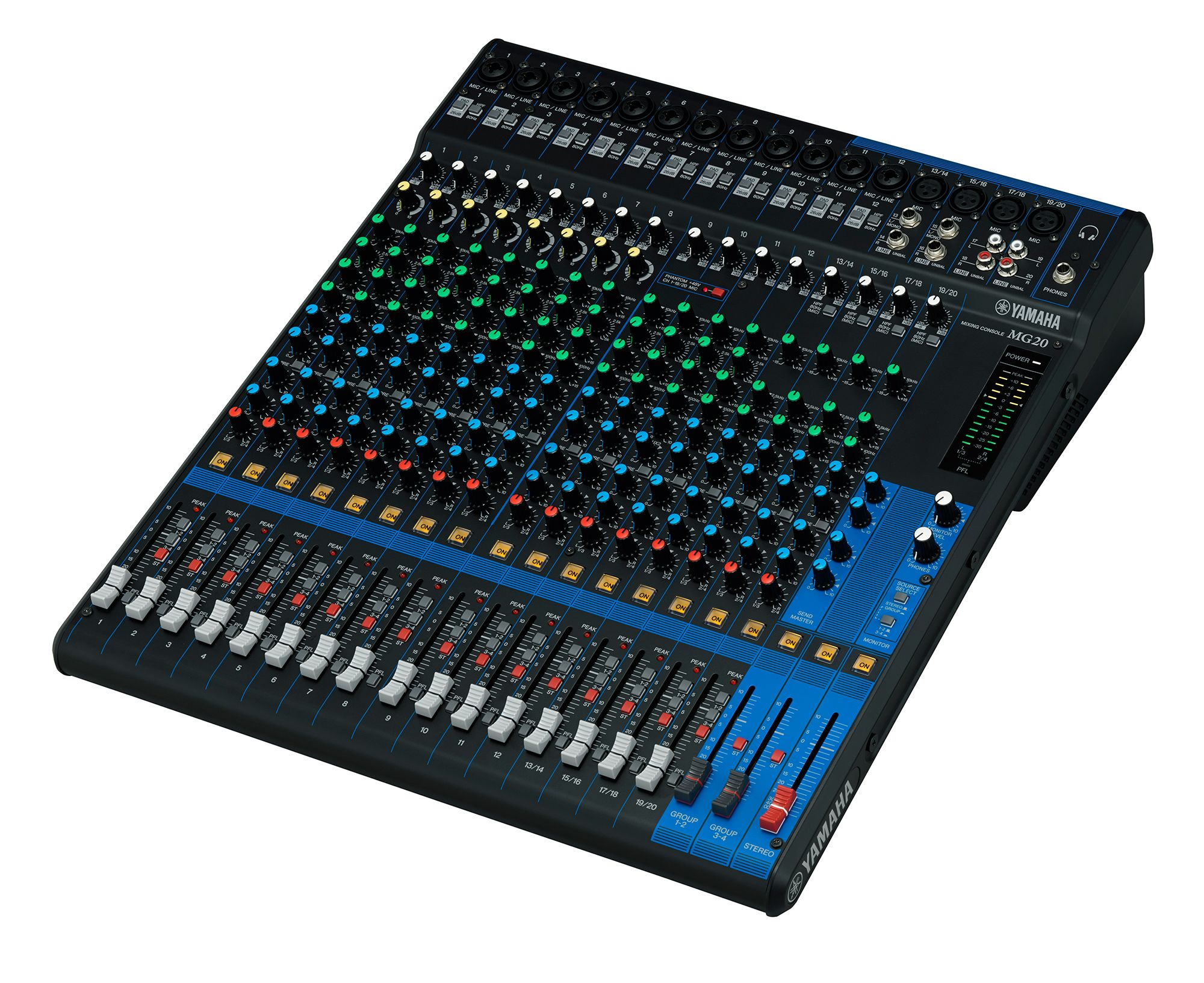

Yamaha MG 20

Yamaha MG 20, mixing console with 20 channels, maximum 16 microphone / 20 line (12 mono + 4 stereo), 4 x sub-groups + 1 stereo group:

• 16 microphone channels / 20 line (12 mono + 4 stereo)
• 12 x microphone/line inputs with combo XLR/Jack connection
• channels 13/14, 15/16, 17/18, 19/20 can be used for microphone or stereo line signal
• 4 x group buses + 1 stereo bus
• 4 auxiliaries
• 3-band equalizers
• D-Pre preamps with inverted Darlington circuit
• compressor on channels 1-8
• 26 dB pad and high-pass filter at 80 Hz
• Phantom Power supply of +48V

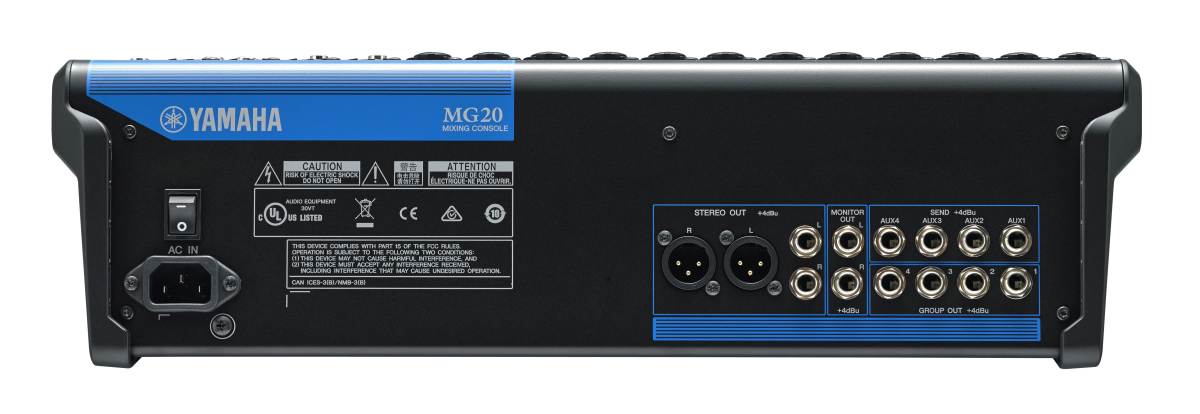

• balanced XLR outputs
• rack mounting kit included
• solid metal casing
• dimensions: 444 x 130 x 500 mm
• weight: 6.9 kg
