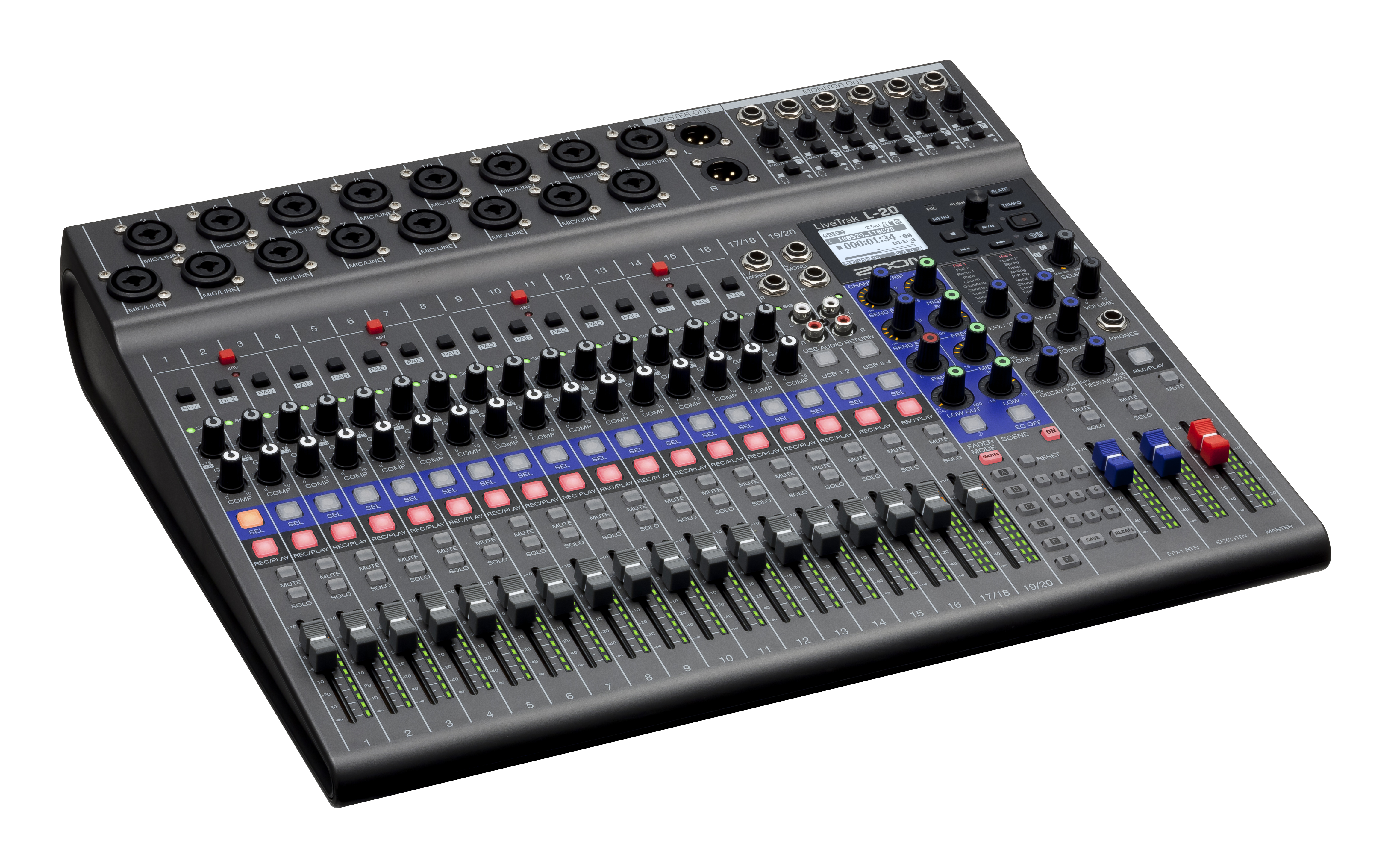

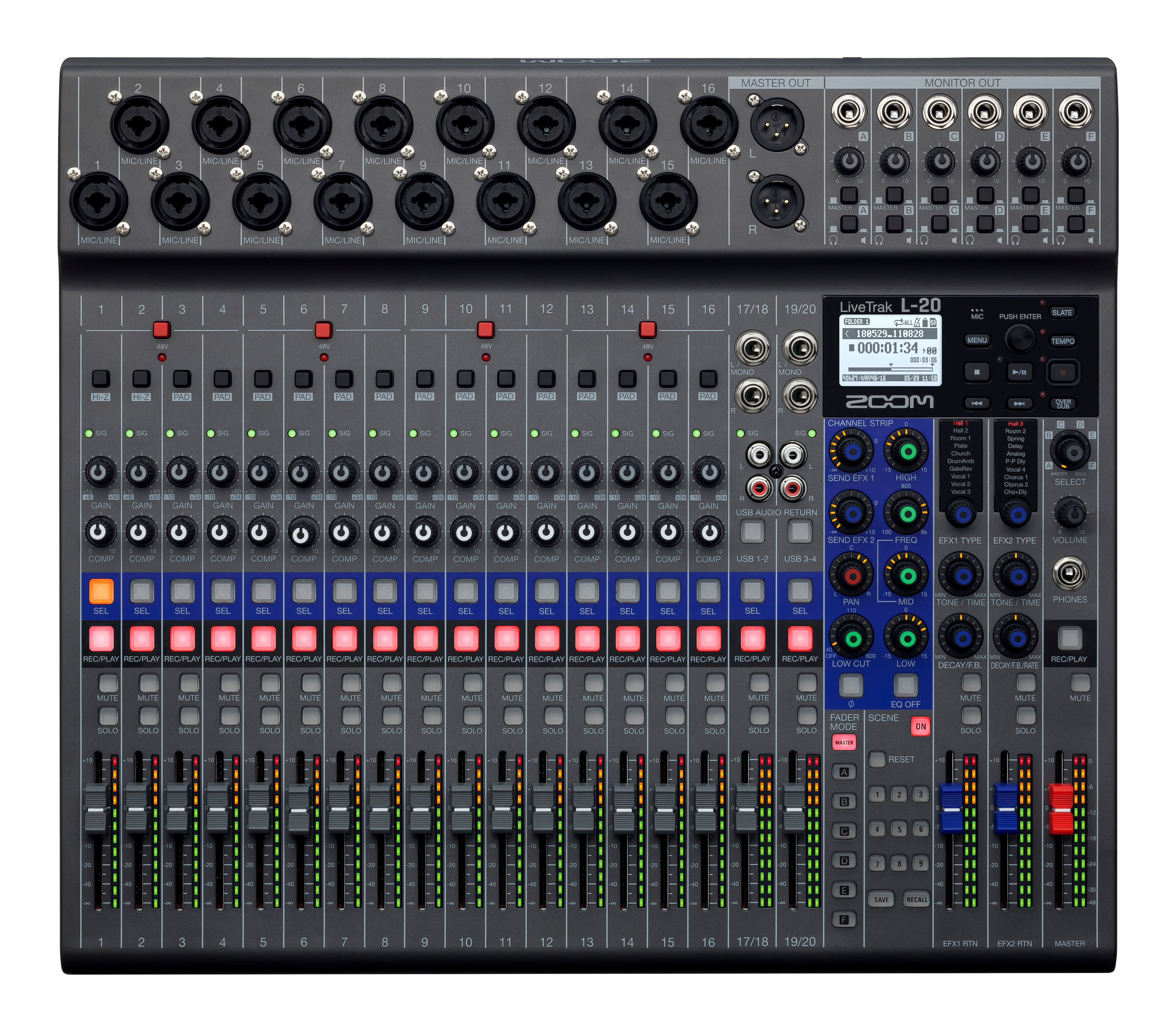

Zoom LiveTrak L-20

Zoom LiveTrak L-20 - digital mixer/multitrack recorder/audio interface, offering 20 discrete channels (16 mono + 2 stereo) with XLR and 6.3 mm jack connectors, allowing simultaneous recording of 22 tracks and playback of 20 tracks, and can be used as a 24-bit USB audio interface with 22 inputs and 4 outputs.

Sampling frequency of 44.1 / 48 / 96 kHz, provides 6 outputs for headphones with individually adjustable monitoring mix, line inputs with RCA and TS jack connectors, provides Phantom Power +48 V on channels 1-16, Hi-Z inputs on channels 1-2 for high-output electric guitars, 26 dB pad for channels 3-16, integrated controllers for compressor on channels 1-16, master mute button, high-pass filter, adjustable stereo panorama, master and monitor outputs.

Offers 20 internal effects, editable on 2 buses, including delay and hall types, integrated talkback microphone, Class-Compliant operation (for iOS compatibility), SD card slot, built-in metronome, automatic start/stop recording function, project protection function, import and export of projects via USB 2.0 interface, latency compensation for AD conversion, compatible functions for ZOOM FS01 foot switch (not included).

• Includes USB 2.0 cable, power supply (AD-19) and user manual.
• Dimensions (W x D x H) 445 x 388 x 82.6 mm
• Weight 3.71 kg
