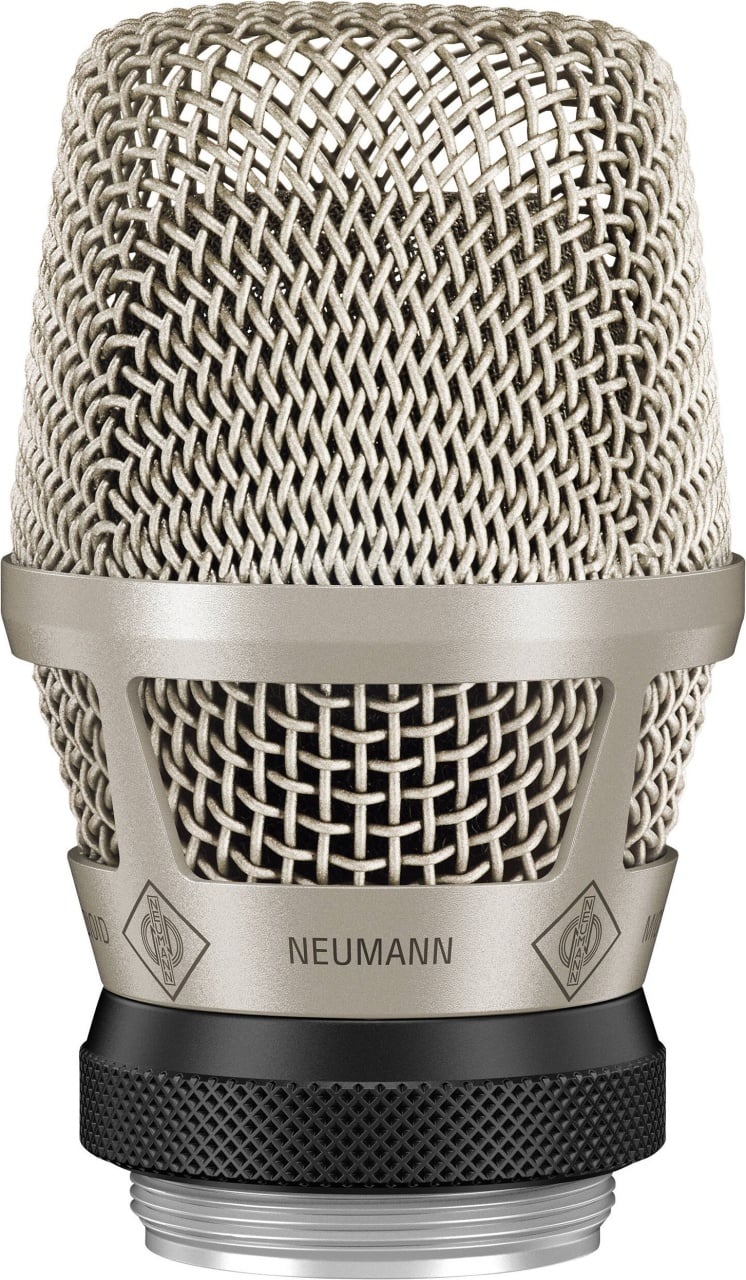

Neumann KK 105 U

Neumann KK 105 U is a high-quality microphone capsule, compatible with wireless transmitters from Shure, Sony, Mipro, and Lectrosonics. The capsule produces a clear and transparent signal characteristic of Neumann, with a supercardioid polar pattern that effectively rejects ambient sounds. It is ideal for the stage due to its excellent protection against plosives, resistance to handling noise, and ability to withstand high sound pressure levels (up to 152 dB SPL).

General Features:

• Premium Neumann capsule for wireless systems from third-party manufacturers
• Supercardioid polar pattern
• Resistant to handling noise, with high rejection of ambient sound
• Unaffected by high sound pressure levels
• Internal suspension and integrated protection against plosives
• Easy to clean

Compatible Transmitters:

• Shure: Axient Digital, ULX-D, QLX-D, SLX-D Series
• Sony: all models
• Mipro: ACT series
• Lectrosonics: all models

Technical Specifications:

• Polar pattern: Supercardioid
• Frequency response: 40 Hz - 20 kHz
• Sensitivity at 1 kHz in 50 kohm: 4 mV/Pa ≈ –48 dBV ± 1 dB
• Signal-to-noise ratio, CCIR (ref. 94 dB SPL): 62 dB
• Signal-to-noise ratio, weighted A (ref. 94 dB SPL): 73 dB
• Equivalent noise level, CCIR: 32 dB
• Equivalent noise level, weighted A: 21 dB-A
• Maximum sound pressure for THD < 0.5%²: 152 dB
• Weight: approx. 183 g
• Diameter: 48 mm
• Length: 80 mm
• Operating temperature range: 0 °C - +70 °C
• Storage temperature range: −20 °C - +70 °C
• Maximum humidity: 90 % at +20 °C
