ESI planet 22c

Dante audio interface

dante network audio interface with 2 x 2 analogue channels.
24-bit / 96 kHz conversion with professional audio quality.
supports -10dBV and +4dBu audio levels for versatile use.
includes BurrBrown AD and DA converters for high dynamic range.
powered via PoE or included 12V DC power supply.

Variante:

239²⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1219 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

ESI planet 22c Add to cart: 239²⁵ €

ESI planet 22c - Dante audio interface, with 2 x 2 analogue channels, 24-bit / 96 kHz conversion, which can be powered both via direct circuit (DC) and through PoE (Power over Ethernet).

Dante network audio interface
2 inputs / 2 analogue outputs
reference-level audio quality for professional applications
supports audio levels of -10dBV (consumer) and +4dBu (professional) for input and output
BurrBrown PCM1804DB 24-bit stereo AD converter with a dynamic range of 110dB (A-weighted)
maximum input level: +6dBV (set to -10dBV), +20dBu (set to +4dBu)
input frequency response at +/- 0.1dB: 20Hz to 20,000 Hz

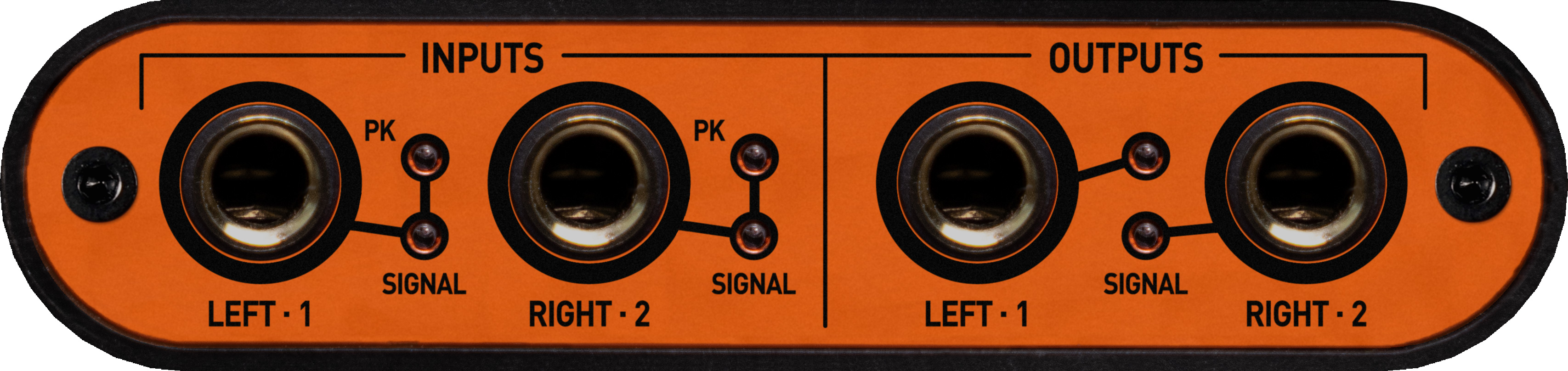

connections:
- balanced analogue inputs: TRS, 6.3 mm
- balanced analogue outputs: TRS, 6.3 mm
BurrBrown PCM1796DB 24-bit stereo DA converter with a dynamic range of 120dB (A-weighted)
maximum output level: +6dBV (set to -10dBV), +20dBu (set to +4dBu)
output frequency response at +/- 0.05dB: 20Hz to 20kHz
supports 44.1, 48, 88.2 and 96 kHz at 24 bits
latency based on network configuration, usually around 1ms

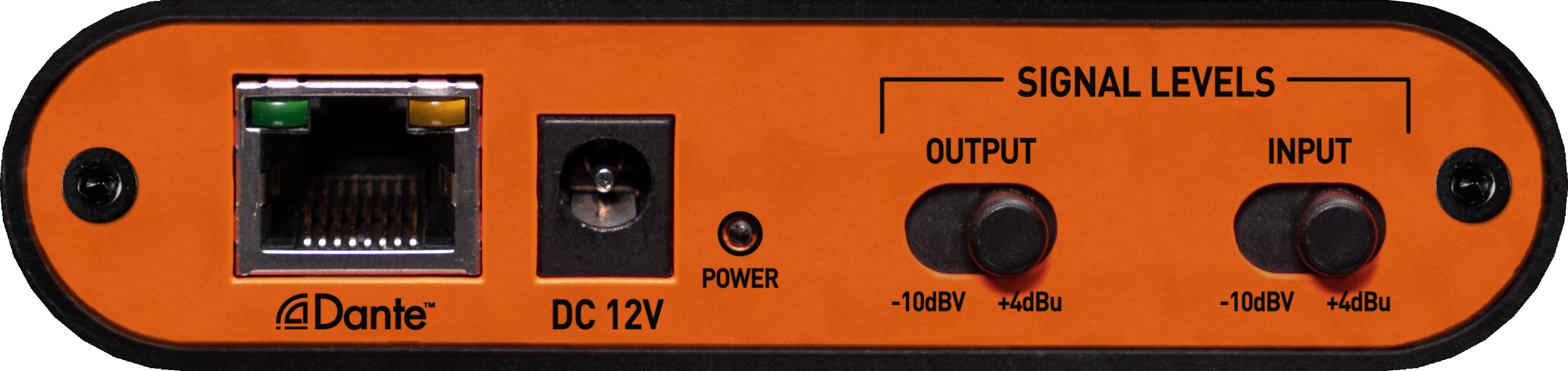

power via network cable (PoE / Power over Ethernet)
12V DC power supply included
dimensions: approximately 105 cm x 110 cm x 25 mm
weight: approximately 236g
