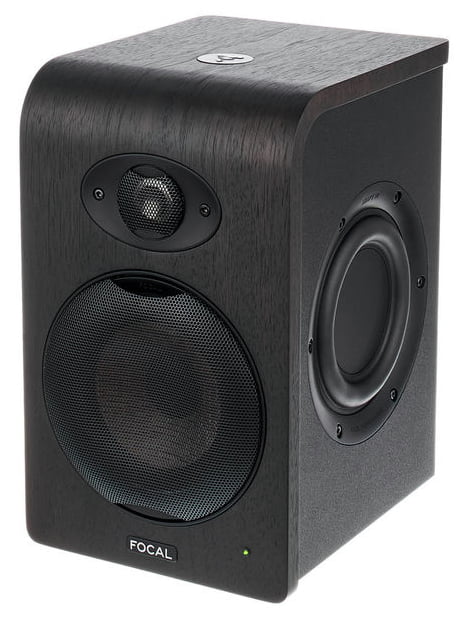

Focal Shape 50 - active studio monitor with 2-way nearfield design. The closed cabinet made of MDF is equipped with a 5.0" flax cone woofer and an inverted dome tweeter made of aluminium/magnesium alloy, which together provide a frequency response from 50 Hz to 35 kHz, with a maximum SPL of 106 dB, while two 5.0" passive radiators extend the low frequencies and minimise distortion. The mid/low frequency driver is powered by a 60W Class-AB amplifier, while the high-frequency driver uses a 25W Class-AB amplifier. The closed cabinet design, without a bass port, allows the monitor to be placed near a wall without adverse effects.
Inverted dome tweeter made of aluminium/magnesium alloy
1" M-shaped tweeter with low directivity for flexible listening position
5.0" Flax Sandwich Cone woofer with controlled and articulate bass, natural and detailed mid-low and mid-high frequencies
Dual passive radiators (5.0") for enhanced bass intensity response and reduced distortion
Designed without a bass reflex port, allowing placement near a wall
High-pass filter
Adjustable crossover: 160 Hz
Adjustable mid and low frequencies
Frequency response: 50 Hz to 35 kHz
Max SPL: 106 dB (peak at 1 m)
Inputs: XLR and RCA
Auto-standby mode
Power supply 240 VAC
Mounting mechanisms present on the back and underneath for ceiling or wall installation (mounting accessories not provided)
Threads for ceiling and wall mounts (mounting accessories not provided)
Low-frequency driver: 5.0" Flax Cone / 127 mm
Passive radiator: 2 x 5.0" / 127 mm
High-frequency driver: 1.0" / 25.0 mm aluminium-magnesium alloy with 'M' profile
Mid and low frequency amplifier: 60 W, Class-AB
High frequency amplifier: 25 W, Class-AB
Frequency range: 50 Hz - 35 kHz (±3 dB)
Maximum sound pressure level (SPL): 106 dB SPL (peak at 1 m)
Connectors:
1 x balanced XLR
1 x unbalanced RCA
Power connector: 1 x IEC
XLR input impedance: 10 kOhms, balanced
RCA input impedance: 10 kOhms, with sensitivity compensation
Controls and indicators for High-Pass filter: adjustable, full range 45/60/90 Hz
Controls and indicators for low frequencies (0-250 Hz): adjustable, ±6 dB
Controls and indicators for mid-low frequencies (160 Hz, Q=1): adjustable, ±3 dB
Controls and indicators for high frequencies (4.5-35 kHz): adjustable, ±3 dB
Power On/Power Off: On/off switch on the back panel
LED indicator: for power on/off and standby
Auto standby mode:
Standby On: after approximately 30 minutes without detected signal
Standby Off: upon signal detection > 3 mV
Cabinet material: 15 mm MDF
Finish: vinyl, real walnut veneer, and black paint
