LD Systems U505 BP

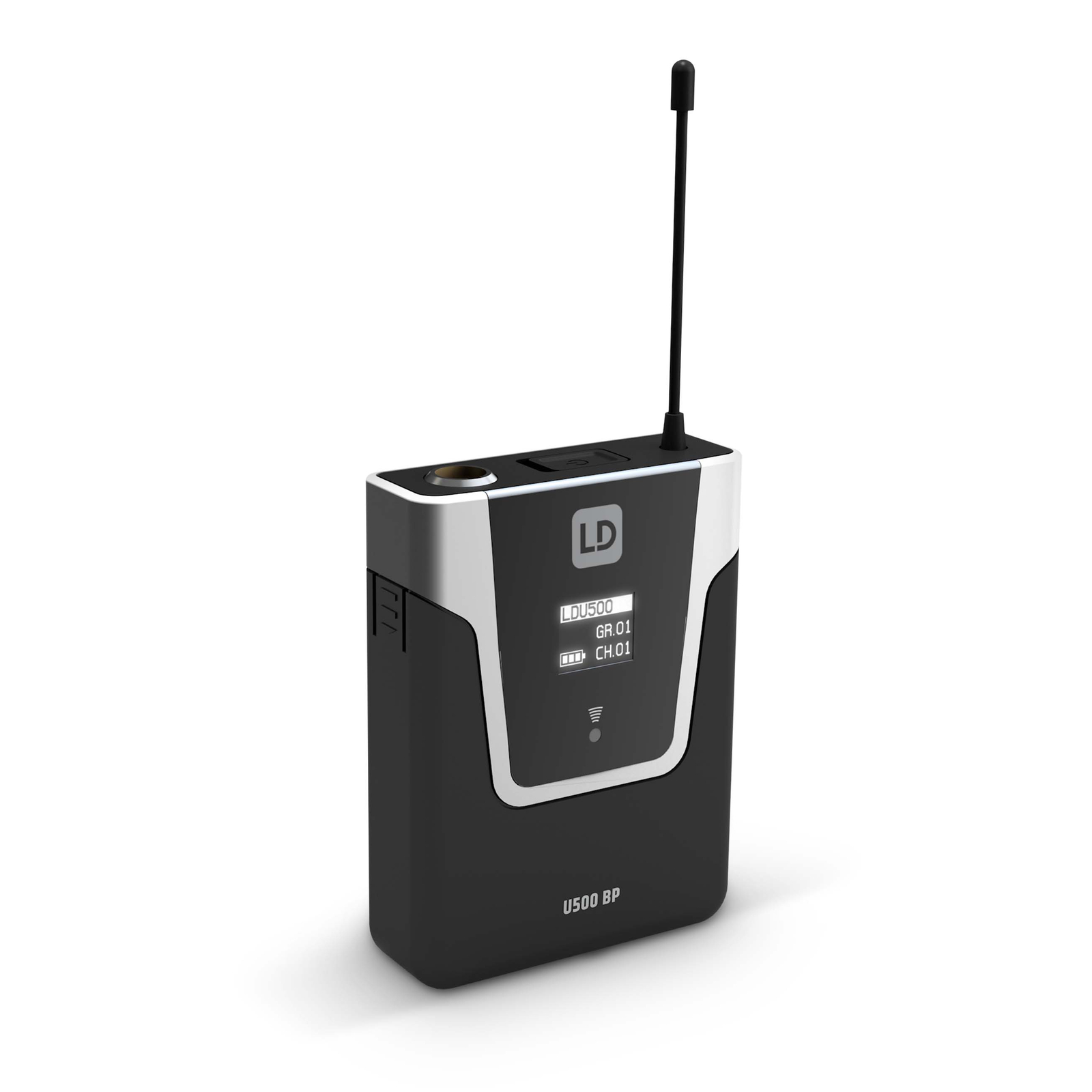

LD Systems U505 BP – Bodypack transmitter for the UHF True Diversity wireless system, which includes automatic channel scanning, quick infrared (IR) synchronization, and a high-contrast OLED display that indicates battery level and active parameters.

The pilot tone squelch circuit prevents unwanted noise, while the switchable RF power (2 mW / 10 mW / 30 mW) ensures stable transmission over distances of more than 100 m in open fields.

Interchangeable microphone capsules and switchable instrument-level outputs allow the system to be adapted for various applications – from vocals to guitar or bass.

General:

• Bodypack for UHF True Diversity wireless system
• Type: Bodypack
• Frequency range: 584 – 608 MHz
• Channels: 96 (8 groups of 12 channels each)
• Groups: 8

Audio performance:

• Frequency response: 30 – 16,000 Hz
• Signal-to-noise ratio: >90 dB
• RF output power: 2 mW / 10 mW / 30 mW (selectable)

Connectivity & Control:

• Input: Mini-XLR (3 pins)
• Frequency synchronization: IR
• Control: 2 x arrow buttons (up/down), Power, Set
• Display: OLED
• Additional features: Pilot tone squelch, switchable gain, detachable antenna, switchable RF power

Power supply:

• 2 x AA batteries
• Battery life: >10 hours (alkaline batteries)

Physical parameters:

• Dimensions: 65 x 86 x 23 mm
• Weight: 0.09 kg
