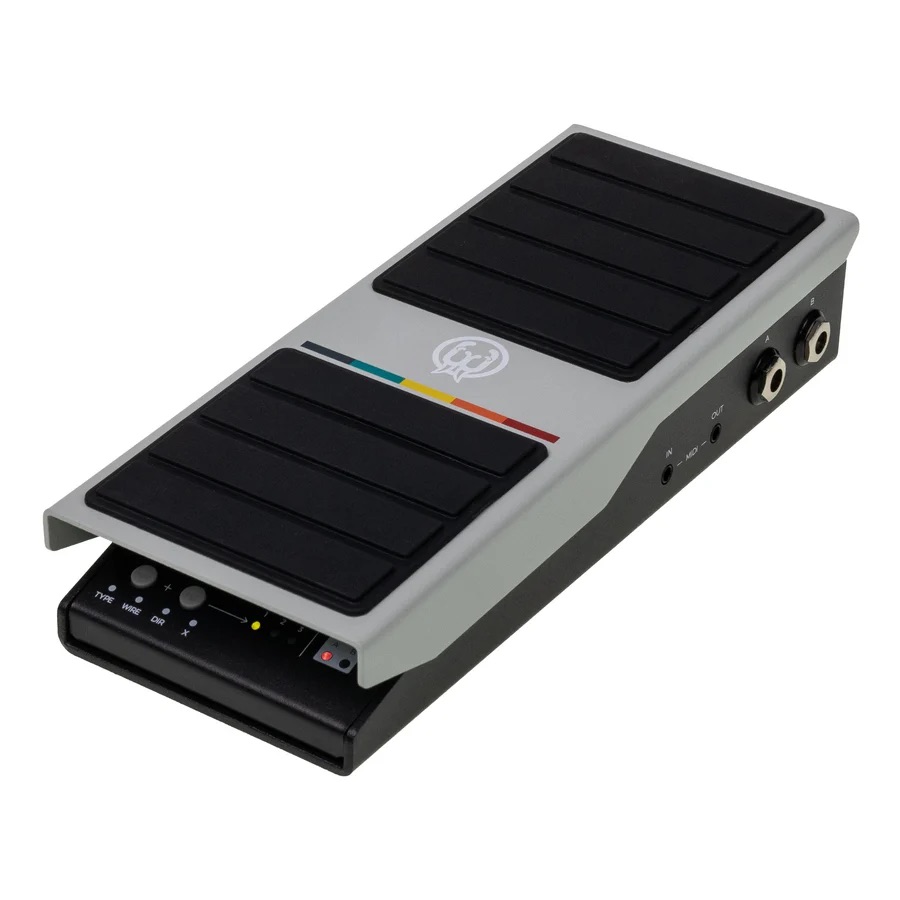

Walrus Audio Canvas Expression Pedal

Walrus Audio Canvas Expression is a configurable expression pedal for controlling pedals, amplifiers, synthesizers, modular systems and audio software. It features two independent outputs that can be configured for Expression, Switch or Control Voltage (CV), as well as MIDI control via TRS and USB-C.

• Configurable expression pedal
• Outputs: 2 independent outputs, separately configurable
• Output modes: Expression, Switch, Control Voltage (CV)
• Expression compatibility: TRS, RTS and TS resistance mode
• Cable detection: Automatic
• Taper: Adjustable
• Sweep direction: Forward / Reverse
• Switch: Momentary or latching
• Switch activation point: Heel, middle or toe
• CV: 0–3.3 V or 0–5 V
• TS resistance: 10 kΩ, 25 kΩ or 50 kΩ
• MIDI: TRS MIDI Type A In/Out and USB MIDI
• MIDI messages: Up to 16 assignable MIDI messages
• MIDI: Control Change (CC), Program Change (PC), USB MIDI 14-bit high-resolution
• MIDI Input: Allows remote activation/deactivation of outputs
• Editor: Web application for configuring MIDI, switch, TS resistance, global settings and firmware updates
• Power supply: 9 VDC, center-negative, minimum 300 mA
• Pedal adjustment: The treadle resistance is adjustable
• Construction: Without strings, potentiometers or mechanical parts
• Dimensions: 48 × 91 × 225 mm
• Weight: approx. 1 kg
