Steinberg UR-RT2 - USB 2.0 audio interface with Rupert Neve Designs transformers. It offers six inputs, four outputs, and conversion up to 192 kHz / 24-bit. The preamps are designed by Yamaha, providing transparent and detailed sound capture. Additionally, the transformers from Rupert Neve Designs feature switchable harmonic distortion. These transformers are beneficial for vocals, acoustic guitars, or any other instrument with a significant dynamic range.

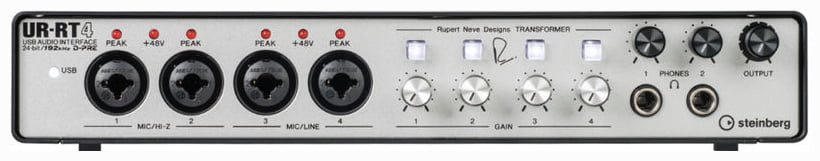

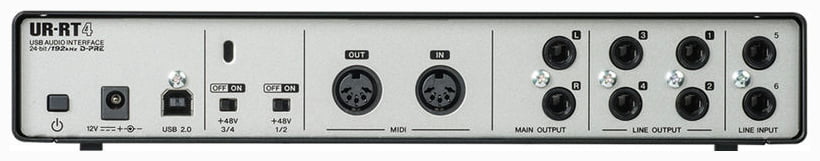

On the front panel, you will find four combo XLR-1/4" jack connectors that can be switched between microphone and Hi-Z input. Alongside these inputs are the gain potentiometers and transformer switches, 2 headphone connectors, two headphone volume knobs, and a main output knob. On the back of the device, there are MIDI in/out, two line inputs, two main outputs, a USB socket, and a phantom power +48V switch for powering condenser microphones.
An SSP2 DSP chip is available to help you achieve zero-latency FX monitoring across various DAWs and platforms, making this device suitable for laptops, tablets, and desktop computers.
24-bit/192kHz via USB 2.0
The converters used in the UR-RT2 provide a maximum sample rate of 192 kHz and a resolution of 24-bit.
Class-A D-PRE Microphone Preamps
The UR-RT4 interfaces are equipped with Yamaha's D-PRE preamps. They deliver transparent and detailed sound.
RND Transformers
The Rupert Neve Designs transformers add natural distortion to the signal for a sound with more depth and perspective. Input channels 1-2 on the UR-RT4 each have a Rupert Neve Designs transformer specifically developed for audio interfaces.
Zero-Latency Monitoring with FX
Thanks to the built-in SSP2 DSP software and included dspMixFx software, the UR-RT4 offers zero-latency monitoring with FX on Windows, MacOS, and iOS, and with every DAW.
Cross-Platform Compatibility
The UR-RT4 provides cross-platform compatibility for Windows, MacOS, and iOS with the included Cubase AI and Cubasis LE music software.
Loopback Function
The loopback function combines input signals with playback signal, providing an easy way to stream live performances online.
Technical Specifications:
- Microphone Inputs (balanced)
- Number of channels: 4
- Frequency response: 20 Hz to 22 kHz, +0.1 / -0.3 dB
- Dynamic range: 101 dBA
- THD+N: 0.0035%, 1 kHz, -3 dBFS, 22 Hz / 22 kHz BPF
- Maximum input level: +4 dBu
- Input impedance: 4 kOhms
- Gain range: +6 to +60 dB
- Hi-Z Inputs (unbalanced)
- Number of channels: 2
- Maximum input level: +8.5 dBV
- Input impedance: 1 MOhm
- Gain range: -0.7 to +53.3 dB
- Line Inputs (balanced)
- Number of channels: 2
- Maximum input level: +24 dBu
- Input impedance: 20 kOhms
- Gain range: -14 to +40 dB
- Line Inputs (balanced/unbalanced)
- Number of channels: 2
- Frequency response: 20 Hz to 22 kHz, +0.1 / -0.1 dB
- Dynamic range: 102 dBA
- THD+N: 0.0025%, 1 kHz, -3 dBFS, 22 Hz / 22 kHz BPF
- Maximum input level: +22 dBu (input +4 dBu), +2.1 dBV (-10 dBV input)
- Input impedance: 30 kOhms (input +4 dBu), 20 kOhms (-10 dBV input)
- Gain selection: +4 dBu or -10 dBV input, switching
- Line Outputs (balanced)
- Number of channels: 4
- Frequency response: 20 Hz to 22 kHz, +0.1 / -0.1 dB
- Dynamic range: 114 dBA
- THD+N: 0.0015%, 1 kHz, -3 dBFS, 22 Hz / 22 kHz BPF
- Maximum output level: +16 dBu
- Output impedance: 75 Ohms
- Main Outputs (balanced/unbalanced):
- Number of channels: 2
- Frequency response: 20 Hz to 22 kHz, +0.1 / -0.1 dB
- Dynamic range: 114 dBA
- THD+N: 0.0015%, 1 kHz, -3 dBFS, 22 Hz / 22 kHz BPF
- Maximum output level: +16 dBu
- Output impedance: 75 Ohms
- Headphone Output:
- Number of channels: 2, stereo
- Maximum output level: 100 mW + 100 mW, 40 ohms
- USB 2.0, 24-bit, 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
General Specifications:
- Inputs/Outputs:
- 4 x combo XLR-1/4" jack inputs
- 2 x 1/4" TRS line inputs
- 1 x 5-pin DIN MIDI input
- 1 x 5-pin DIN MIDI output
- 4 x 1/4" TRS line outputs
- 2 x 1/4" TRS main outputs
- 2 x 1/4" headphone outputs
- Power: 18 W
- Operating temperature: 0 to 40°C
- Dimensions (W x H x D): 267.0 x 47.0 x 208.0 mm
- Weight: 2.4 kg
