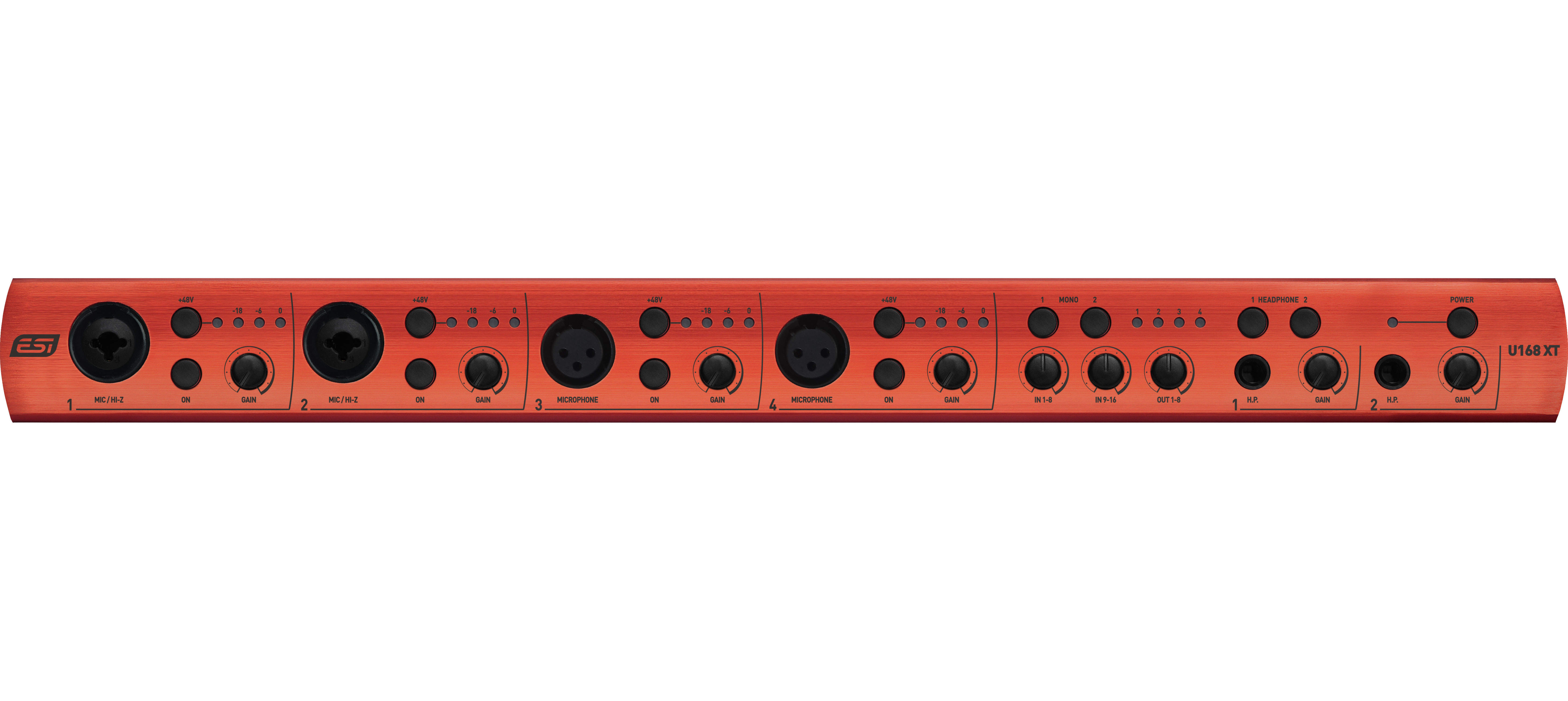

ESI U168 XT

ESI U168 XT, USB2.0 audio interface with 16 inputs and 8 outputs simultaneously usable, 4 x preamplified microphone inputs, 2 x HI-Z inputs, 24-bit / 96kHz, S/PDIF, MIDI In/Out, 2 headphone outputs.

U168XT offers high-performance drivers with low latency based on EWDM and DirectWIRE technologies with support for WDM, ASIO 2.0, and CoreAudio for Mac and PC.

• 16 simultaneous analog inputs / 8 outputs, 24-bit / 96kHz
• 4 x preamplified microphone inputs with +48V phantom power
• 2 x Hi-Z inputs for electric instruments
• S/PDIF I/O via RCA
• 16 x balanced line inputs via 6.3 mm Jack
• 8 x balanced line outputs via 6.3 mm Jack
• 2 x independent headphone outputs, each with gain
• separate stereo mix output with integrated monitoring mixer
• ADC conversion with dynamic range of 107 dB(a)
• DAC conversion with dynamic range of 112 dB(a)
• MIDI I/O with 16 channels
• includes license for Deckadance LE from Stanton
• includes Bitwig 8-Track software
• dimensions: 45 x 14.5 x 4.5 cm
