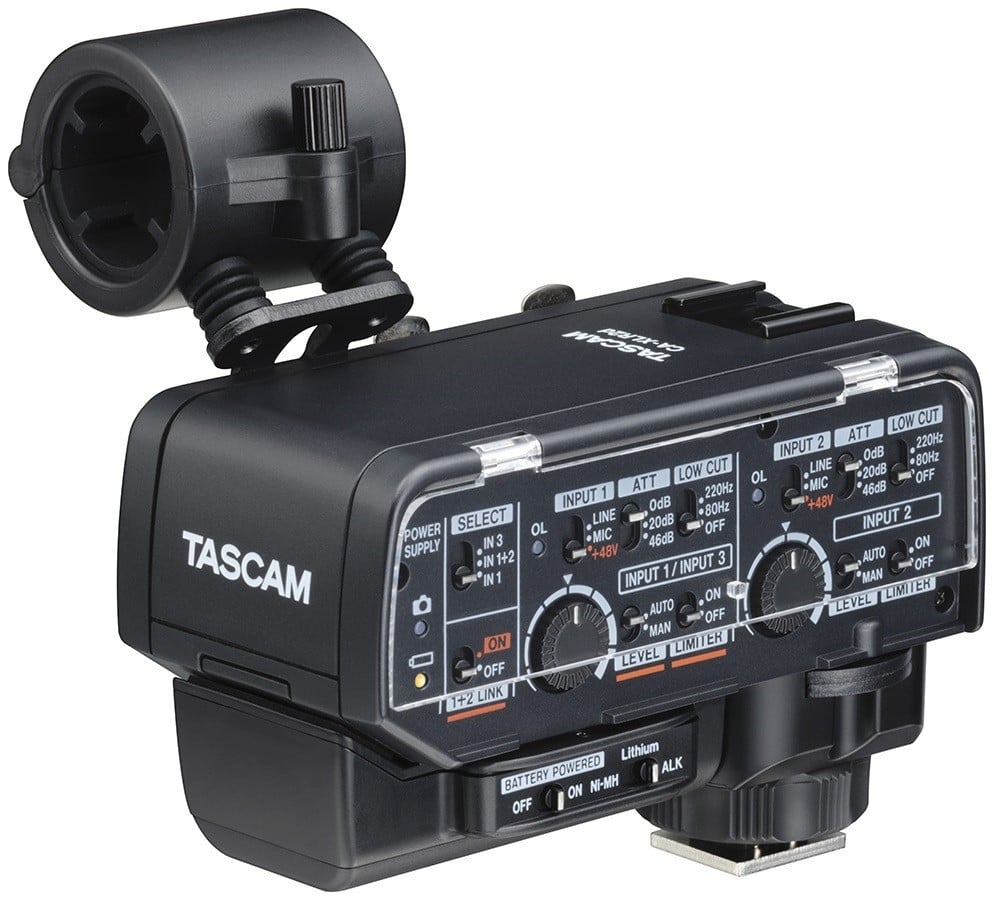

CA-XLR2d is an XLR microphone adapter for mirrorless cameras developed in collaboration with Canon, FUJIFILM, and Nikon. It is compatible with almost any camera that has an analogue audio input.
Key features:
Internal processing: Auto Level, Low Cut Filter, and Limiter.
1+2 LINK function for simultaneous L-R volume adjustment.
Premium sound quality: 16/24 bit, 48/96 kHz.
Microphone preamplifier for various setups and environments.
Inputs for dynamic microphones, condenser microphones, and line-level audio signals.
Technical specifications:
Sampling rate: 48k / 96k Hz
Bit Rate: 16 / 24 bit
Number of channels: 2
Inputs:
Connectivity: XLR-3-31, 6.3mm (1/4 inch) standard TRS
Input impedance: 2 kOhm or greater
Maximum input level: +6dBu (ATT 46dB)
Minimum input level: -60dBu (ATT 0dB)
Gain Range: 66dB
Line input:
Input impedance: 10kOhm or greater
Maximum input level: +24dBu
Nominal input level: +4dBu
Gain Range: 66dB
Unbalanced microphone inputs:
3.5mm (1/8 inch) stereo mini jack connector
Input impedance 2kOhm or greater
Maximum input level: +6dBV (ATT setting 46dB)
Minimum input level -60dBV (ATT setting 0dB)
Gain Range: 66dB
Power supply: 2.7 V
Unbalanced HEADPHONE/CAMERA output: 3.5mm (1/8 inch) stereo mini jack connector
