The T series is a very flexible and cost-effective amplification platform with a speaker processor. Powersoft T904 is designed to power bi-amplified systems, such as stage monitors, point source speakers with 2 ways, and 2-way line sources, as well as smaller subwoofers. MyPowersoft services are available for this product.

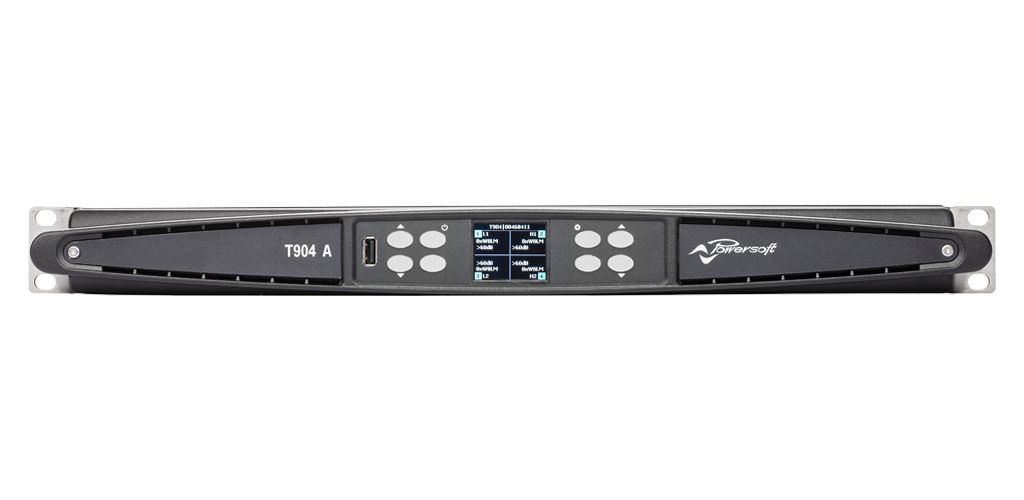

Powersoft T904 is a highly flexible and cost-effective amplifier, with a processor for professional speakers that provides a total power of 8000W. All amplifier models in the Powersoft T series offer the same high peak voltage, enabling unique high SPL at 8/16 ohm across all models and provide power sharing between channels for various applications, such as bi-amplified speakers or passive subwoofers.
- Speaker processing establishes a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T series can be controlled and configured in various ways.
- Full control with a PC running Armonía/ Control and monitoring via ArmoníaPlus
- Control on the display on the front panel for functions such as recalling presets (also on each output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. It also displays the available headroom with easily readable numbers in dB, as well as other state monitoring parameters.
- Web application. Use any device with a browser (e.g., a tablet) and access the amplifier through an external WiFi access point for easy control
- Advanced group-controllable equaliser, with Raised Cosine filters
- Large library of presets/ Preset compatibility with the X series
- Very long FIR filters (42.6 ms)
- Output channels: 4 (2x Speakon NL4; bridging can be done for each pair of channels)
- Analog inputs: 4x XLR (female)
- Digital inputs: AES3 - 1x XLR (female) / LINK - 1x XLR (male)
- Input sensitivity @ 8Ω: 3.10Vrms
- S/N (20 Hz - 20 kHz @ 8 Ω, Typ.): 108 dB (A)
- Maximum input level: 24 dBu
- Frequency response: 20Hz - 20kHz +/-0.5dB
- Crosstalk (1 kHz): <-70 dB
- Input impedance: 20kΩ balanced
- CMRR: >65 dB
- THD+N (from 0.1 W to half power): < 0.1% (typically < 0.05%)
- SMPTE IMD (from 0.1 W to half power): <0.1% (typically <0.05%)
- Output impedance at 100 Hz: 26mΩ
- AD converter: 24 bits Tandem™ @ 48 kHz / 125 dB-A dynamic range - 0.005% THD+N
- DAC: 24 bits Tandem™ @ 48kHz / 117dB-A dynamic range - 0.003% THD+N
- Sampling frequency converter: 24 bits @ 96 kHz / 140 dB dynamic range - 0.0001% THD+N
- Internal precision of 32 bits in floating point
- Latency: fixed latency architecture of 2.5 ms
- Memory/Presets: 256 MB (RAM) plus 512 MB flash for presets
- Delay: 2s (input) + 100ms (output) for temporal alignment
- Equalizers: raised cosine, custom FIR, parametric IIR: peaking, hi/lo shelving, allpass, bandpass, bandtop, hi/lo pass
- Crossover: linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct. up to 48 dB/oct. (III)
- Limiter: TruePower™, RMS voltage, RMS current, peak limiter.
- Damping control: Active DampingControl™ and LiveImpedance™ measurement.
- Display: Farb-TFT 1.8", 160x128 pixels, 600 nits
- Control: 8 buttons with RGB backlighting
- Extra: USB port for external storage
- Output power: 1600 W (per channel @ 8 Ω (balanced)) / 2000 W (per channel at 4 Ω (balanced)) / 1800 W (per channel @ 2 Ω (balanced)) / 3600 W (@ 4 Ω bridged) / 4000 W (@ 8 Ω bridged)
- Maximum output voltage without bypass: 175 V peak
- Maximum output current: 55A peak
- Power consumption at 120 V: 15 W (idle) / 34 W (no load) / 1702 W (1/8 power @ 4 ohms)
- Power consumption at 120 V: 16 W (idle) / 34 W (no load) / 1713 W (1/8 power @ 4 ohms)
- Power supply: Switching power supply with universal adjustment with PFC, SRM
- Nominal voltage: (±10%) 100-240VAC @ 50-60Hz
- Operating voltage: 90-264 VAC @ 50/60 Hz
- Connection to the AC power supply: IEC C20 input (20A max.), a region-specific power cable is included
- Compliance with standards: Gigabit Ethernet Gigabit with automatic detection IEEE 802.3ab
- Accepted topologies: Daisy Chain, Remote Interface Star ArmoníaPlus™
- Dimensions (LxHxD): 484 x 405 x 44.5 mm
- Weight: 7.8 kg
