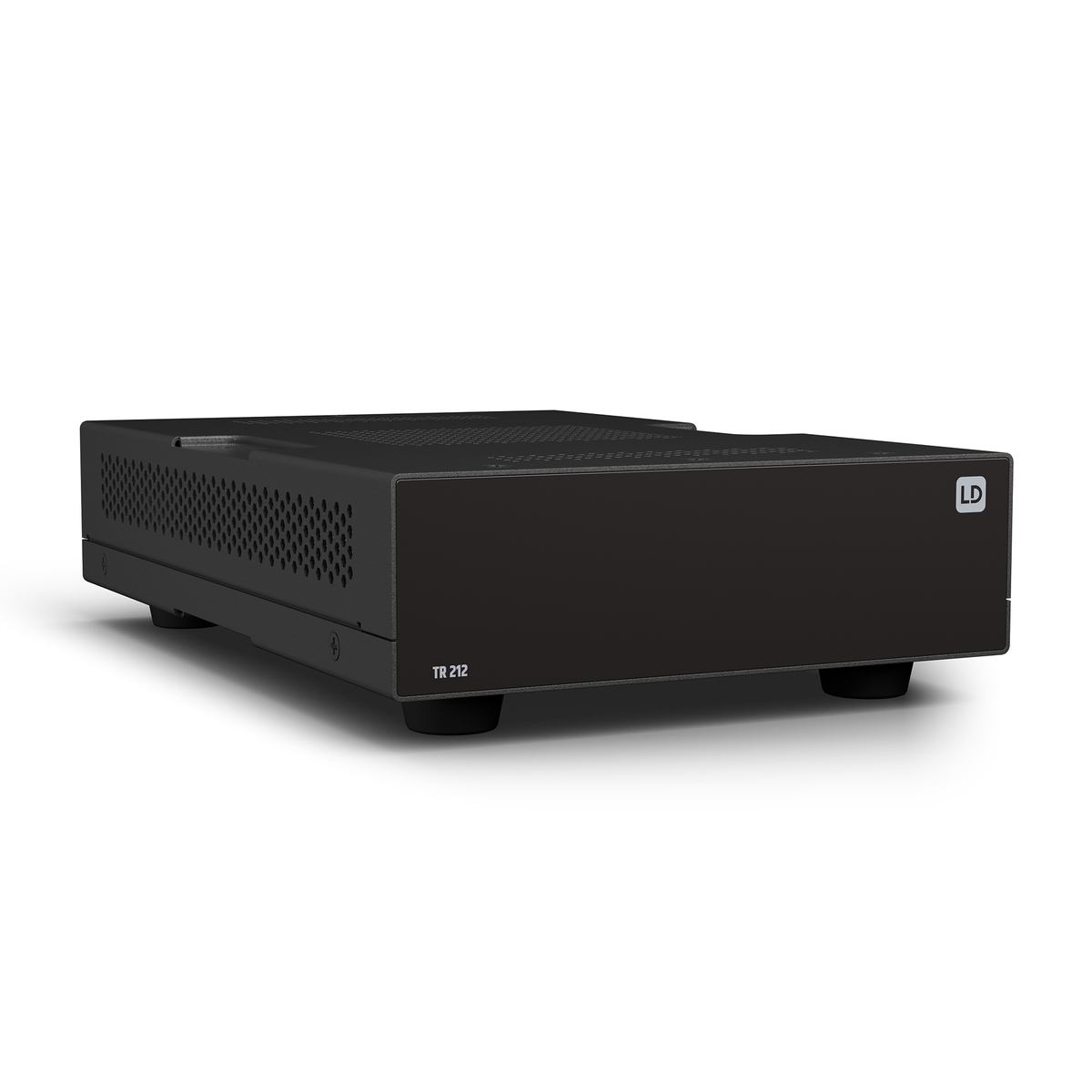

LD Systems TR 212

2 x 120W Audio line transformer

2 loudspeaker circuits
120W power handling per channel
inputs from 8, 4 or 2 Ohms amplifier signals
outputs 100V, 70V or 25V line output to loudspeaker circuits
all-in-one design combining the transformer and protective chassis

256⁵⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1351 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

LD Systems TR 212 Add to cart: 256⁵⁵ €

Part of the TICA® series, the TR212 is a two-channel 120W loudspeaker transformer designed to take a low impedance amplifier signal and convert to a constant voltage loudspeaker line. This allows a conventional low impedance amplifier to be used to drive multiple loudspeakers on each of its outputs, when used with loudspeakers that have a constant voltage connection. Measuring 142 x 44 x 226 mm, its convenient form factor and included mounting plates allow it to be installed discreetly almost anywhere.

Alternatively, it fits into 1/3 19-inch rack.

Use the optional rack tray to slot several TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

Specifications:

Product type: Line Transformer for constant voltage loudspeaker lines

Channels: 2

Connection type: 4-pole Terminal Block. Pitch 5.08mm

Power Handling per channel: 120 W

Input connectors: 2 / 4 / 8 Ohm

THD: < 0,02 %

Frequency response (-1 dB): 50 Hz - 20000 Hz

Connector: 4-pole Terminal Block. Pitch 5.08mm

Output connectors: 25 / 70 / 100V

Housing material: Steel chassis

Material: Plastic Front panel

Operating temperature ( non-condensing ): 0°C - 40°C; < 85% humidity, non condensing

Transformer type: Toroidal

Dimensions (W x H x D) ( height with rubber feet ): 142 mm x 53 mm x 226

Weight: 2,7 kg

Accessories (included): Terminal blocks for electrical connections., Mounting plates for surface mount applications

Optional accessories: Rack tray (LDTICARK)

Product code: LDTR212

Unit of sale: piece
