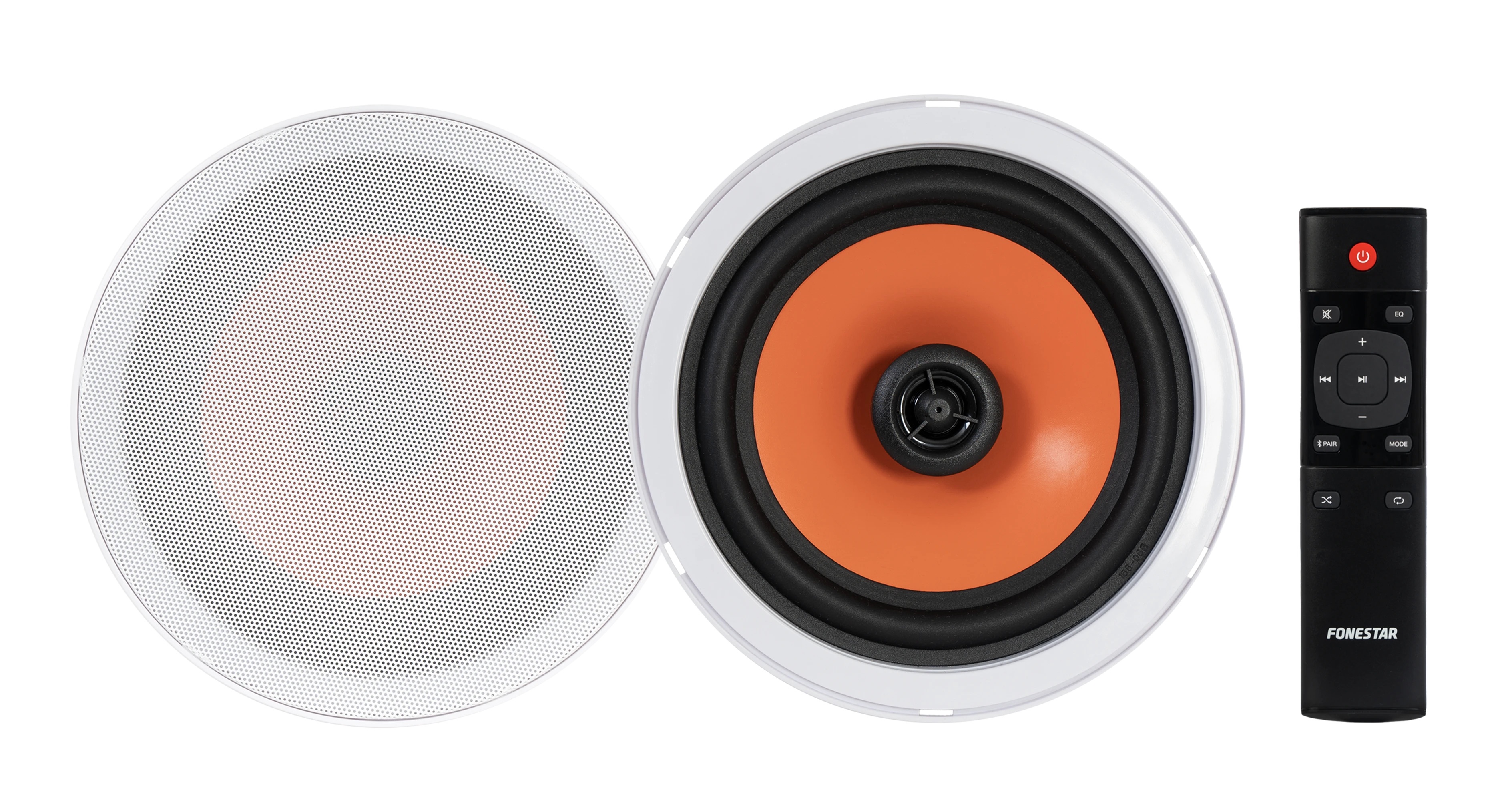

Fonestar KS-12B SoundKit - Ceiling audio system consisting of 2 speakers (1 x passive and 1 x active) and a remote control, with an innovative design for offices and homes, suitable for medium-sized rooms, kitchens, and more. It includes one active speaker and one passive speaker, with coaxial speakers featuring a 6” woofer and a 1” tweeter. It delivers powerful and high-quality sound without distortion. It has multiple audio sources: Bluetooth receiver, USB player, and auxiliary input, allowing you to play music from a smartphone, USB, or any other device with a line output.
You can limit the maximum volume to 50% to avoid disturbance and select mono or stereo mode. Additionally, there are 5 adjustable equalizer settings available via the remote control to personalise your audio experience. The round aluminium grills without a frame allow for discreet and elegant integration into any space. Control can be done both via smartphone in Bluetooth mode and with the included remote control.
Features:
- Bluetooth 5.3 connectivity: Allows wireless music playback from a phone or tablet, up to a distance of 10 metres.
- USB playback: Supports MP3 and WAV files via USB, with playback modes such as random, total repeat, and repeat one file.
- Auxiliary input (AUX): Allows connection of other audio devices via a stereo auxiliary cable.
- Automatic standby mode: The system enters standby after 10 minutes without audio signal to save energy.
- Volume limiter: You can choose between 50% and 100% of the maximum volume to prevent distortion.
- Equalizer settings (EQ): 5 EQ presets are available to adjust the sound according to preferences.
- Stereo/Mono selector: Ability to switch between stereo and mono modes.
- Included remote control for easy operation.
- Amplifier power: 2 x 20 W RMS
- Frequency response: 60 – 20,000 Hz
- Signal-to-noise ratio: 92 dB
- Sensitivity: 89 dB at 1W/1m
- Maximum SPL: 101 dB at maximum power/1m
- Materials: ABS housing with aluminium grill without frame
- Power supply: 24 V DC, 3 A (adapter included)
- Dimensions: Speakers – diameter 185 mm, depth 75 mm; cutout for installation – 170 mm diameter
- Weight: 1.5 kg
- Included accessories:
- 5-metre speaker cable
- 1-metre extension cable for remote receiver
- Remote control with included batteries
- Recommended use:
- Audio systems in homes, living rooms, kitchens, dining rooms
- Small commercial spaces or offices where a discreet and high-performance audio installation is desired
| Feature | Description |
| FEATURES | Pair of Bluetooth ceiling speakers.
Active speaker with integrated amplifier and output for passive speaker.
Bluetooth receiver.
USB player for mp3 and wav files.
Line input.
Automatic standby function after 10 minutes without audio signal.
Operating mode stereo or mono.
Maximum volume limitation between 100% and 50%.
5 selectable equalizers.
High-quality coaxial speakers.
Protective aluminium grill without frame.
Included remote control. |
| BLUETOOTH | Bluetooth 5.3
Transmission distance: 10 m |
| AMPLIFIER | 2 x 20 W RMS |
| LOUDSPEAKERS | Coaxial: 6" woofer and 1" tweeter (active and passive) @ 8 Ω |
| CONTROLS | Volume limiter (50% and 100%)
Stereo/mono selector
5 equalizers
USB playback modes (random, total repeat, repeat 1) |
| INPUTS | 1 stereo aux, euroblock connector |
| RESPONSE | 60 – 20,000 Hz |
| S/N RATIO | 92 dB |
| SENSITIVITY | 89 dB @ 1W/1m |
| MAXIMUM ACOUSTIC PRESSURE | 101 dB @ maximum power/1m |
| MATERIALS | ABS housing
Round aluminium grill without frame |
| CONNECTORS | Euroblock |
| COLOUR | White (RAL 9003) |
| POWER SUPPLY | 24 V DC, 3 A (adapter included) |
| DIMENSIONS | Speakers: 185 mm diameter x 75 mm depth
Mounting cutout: 170 mm diameter |
| WEIGHT | 1.5 kg |
| ACCESSORIES | 5 m speaker cable
1 m extension cable for remote receiver
Remote control
Remote control batteries |
| NOTE | Ability to change the Bluetooth ID and password via PC software |
