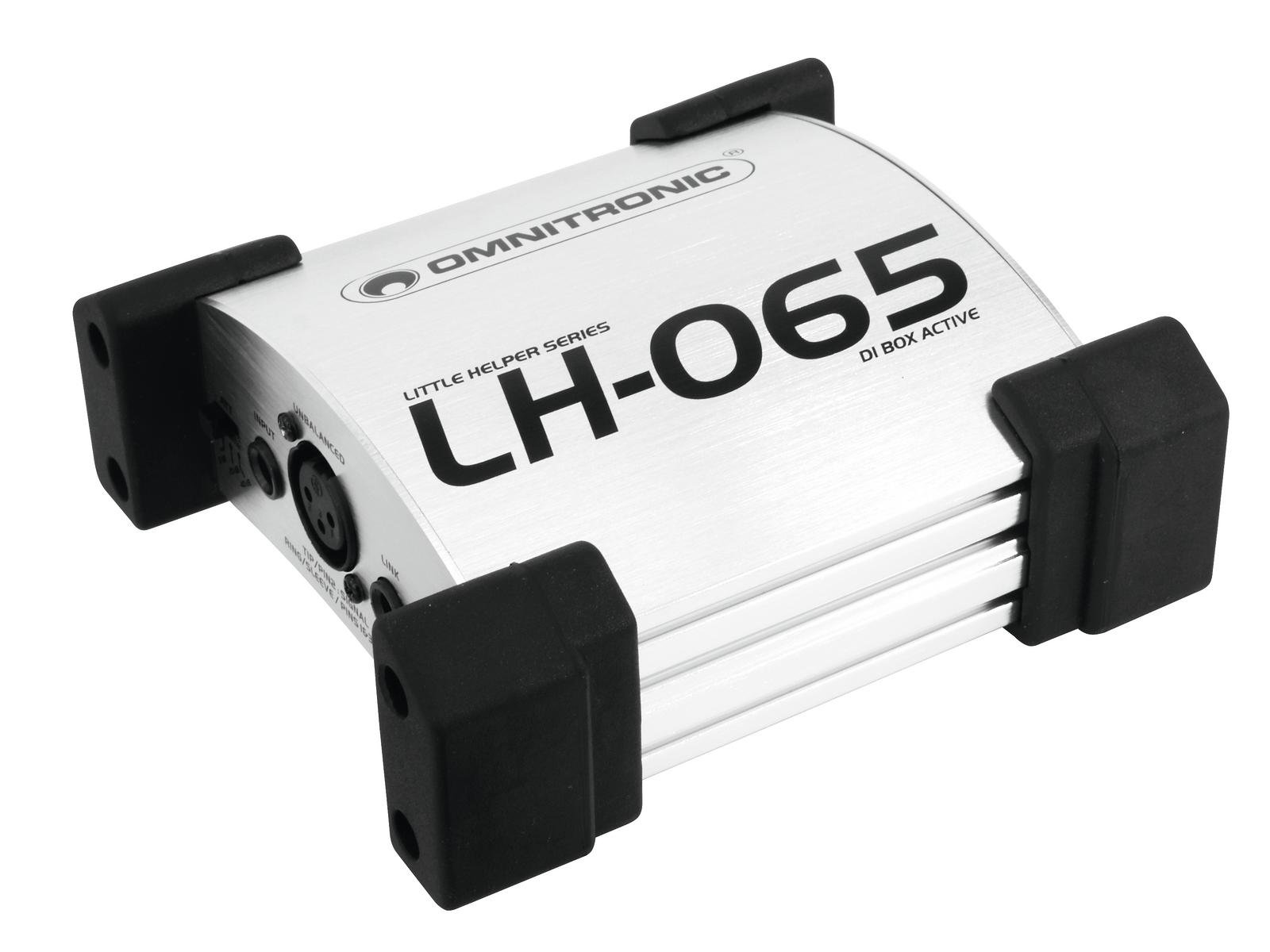

Omnitronic LH-065 Active DI Box

Name: Omnitronic LH-065 Active DI Box
Brand: Omnitronic
SKU: 10355065
Price: 74.55 EUR
Availability: BackOrder

Active DI

74⁵⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

394 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

Omnitronic LH-065 Active DI Box Add to cart: 74⁵⁵ €

1-channel active DI box

1 high-impedance signal input via XLR or 6.3 mm jack connectors
1 low-impedance XLR output
6.35 mm jack input and output
Converts an unbalanced line input (e.g., instruments) into a balanced XLR output for connecting to a mixer
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Cables can be stored under the housing

Package contents

Power connection:	Mains input via coaxial power connector (M) power cable mounting version with AC adapter (included)
Battery:	1 x 9.0 V block 6F22 zinc carbon included
Frequency range:	10 - 30000 Hz
THD:	<0.5 % at 1 kHz
Impedance:	Input: 470 kOhm Output: 600 Ohm
Input attenuation:	0 dB, -20 dB, -40 dB; switchable
Control elements:	Groundlift switch
Connections:	Input: 1 x 3-pin XLR Input: 1 x 6.3 mm jack (unbalanced) Link: 1 x 6.3 mm jack (unbalanced) Output: line via 1 x 3-pin XLR
Max. level:	Output: +6 dBu
Dimensions:	Width: 15 cm Depth: 13 cm Height: 6 cm
Weight:	540 g
