ART DualZDirect

Passive DI

professional passive DI with two independent interfaces for versatile signal connection.
high-quality transformer, fully passive design, no battery required.
switchable input attenuation and low pass filter for tailored sound.
sturdy aluminium housing with a frequency response of 10 Hz - 50 kHz.
compact dimensions (47 mm x 117 mm x 99 mm) and lightweight (0.4 kg).

55⁵⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

293 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

ART DualZDirect Add to cart: 55⁵⁶ €

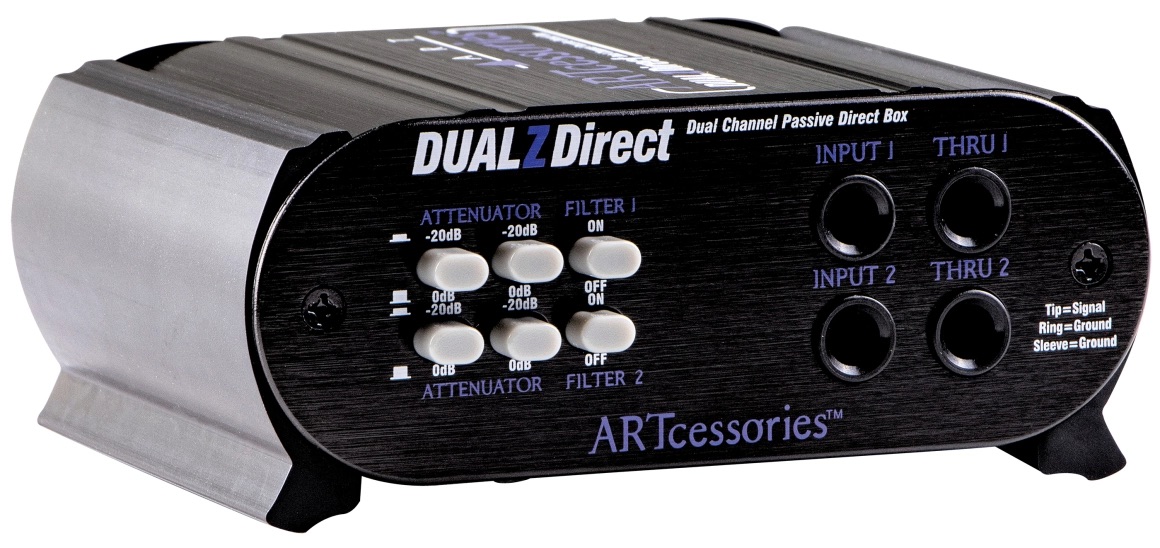

ART DualZDirect - professional passive DI that offers two independent, fully passive interfaces, allowing you to connect instrument, line, or speaker level signals to a mixer.

Features / Specifications:

High-quality transformer with a completely passive design (no battery required)
Input attenuation (0, -20, -40 dB) and switchable low pass
Switchable ground lift
Switchable phase reverse function
Input conversion of 50 kOhm - balanced output of 600 Ohm
Sturdy aluminium housing
Frequency response: 10 Hz - 50 kHz, +/- 0.5dB at +4 dBu
Total harmonic distortion: 0.01% typical at 1 kHz, +18 dBu / < 0.05% at 100 Hz, +18 dBu
Channel separation: > 80 dB (typical)
Connections:
- Input connections: 1/4" TRS Unbalanced (x2), 50 kOhm
- Thru connections: 1/4" TRS (x2)
- Output connections: XLR Male Balanced (x2), 600 Ohm
Input attenuation: switchable (0 -20, -40 dB)
Filter type / Response: Switchable, Low Pass, -3 dB at 30 kHz
Dimensions: 47 mm x 117 mm x 99 mm
Weight: 0.4 kg
