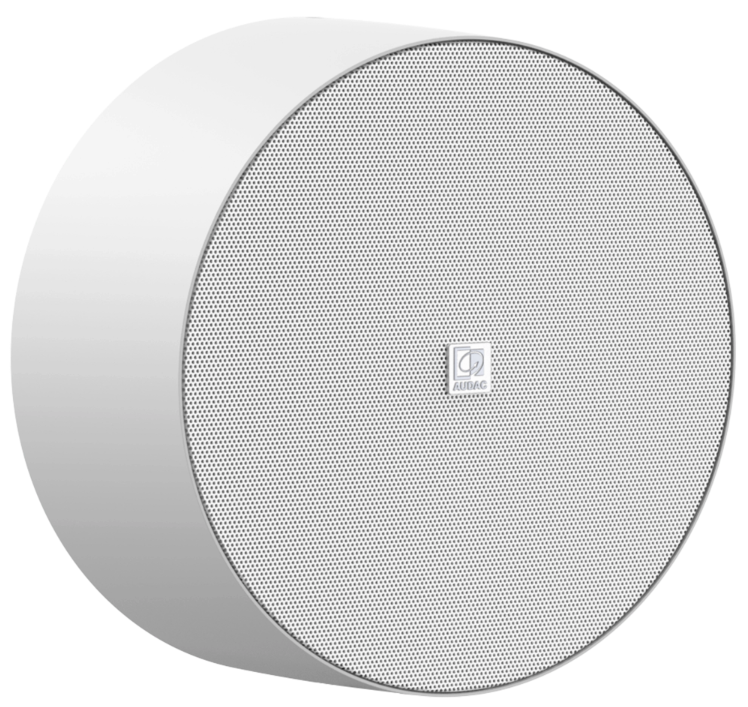

Audac NELO 706 V White

Surface Mount Speaker

equipped with a 6.5" driver and 10 W RMS power for reliable performance.
wide frequency response from 100 Hz to 15 kHz, ideal for various audio applications.
conical dispersion of 140° for effective sound distribution.
robust ABS construction with a steel grille for durability.
suitable for wall or ceiling mounting, with optional suspension kit available.

Variants:

73³⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

388 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

Audac NELO 706 V White Add to cart: 73³⁷ €

Audac NELO 706 White – Surface mount speaker, equipped with a 6.5" driver, a continuous power of 10 watts (RMS) and a line transformer for use in 70V/100V sound systems.

Peak power 40 W
Power handling 20 W
RMS/AES power 10 W
Sensitivity (1W/1m) 96 dB
Sound pressure SPL (max. W/1m) at 100 V of 106 dB
Speaker type – Large-Band
SnapConnect™ connection
6.5" Full Range driver
Frequency response (± 3 dB) 100 Hz - 15 kHz
Frequency range (-10 dB) 70 Hz - 18 kHz
Line transformer connections
- 1 - 833 Ω - 100 V / Not used - 70 V / 6 W
- 2 - 1667 Ω - 100 V / 6 W - 70 V / 3 W
- 3 - 3333 Ω - 100 V / 3 W - 70 V / 1.5 W
Conical dispersion 140°.
Colour – White Ral 9003
Front finish Steel grille
ABS construction
Wall/ceiling mounting (two holes for screws)
Dimensions 206.5 & 95 mm (Ø diameter & Depth)
Operating temperature -25 °C ~ 70 °C
Can be suspended from the ceiling using the CSK100 ceiling suspension kit (NOT INCLUDED)

Product code: NELO706V/W

Unit of sale: piece

Specifications:

IP protection code:	None
Power at 100V:	1.5 / 3 / 6 W
Colors (RAL):	white RAL 9003
Dimensions:	206.5 & 95 mm (Ø diameter & Depth)
SPL:	106 dB
Frequency response:	100 Hz - 15 kHz
