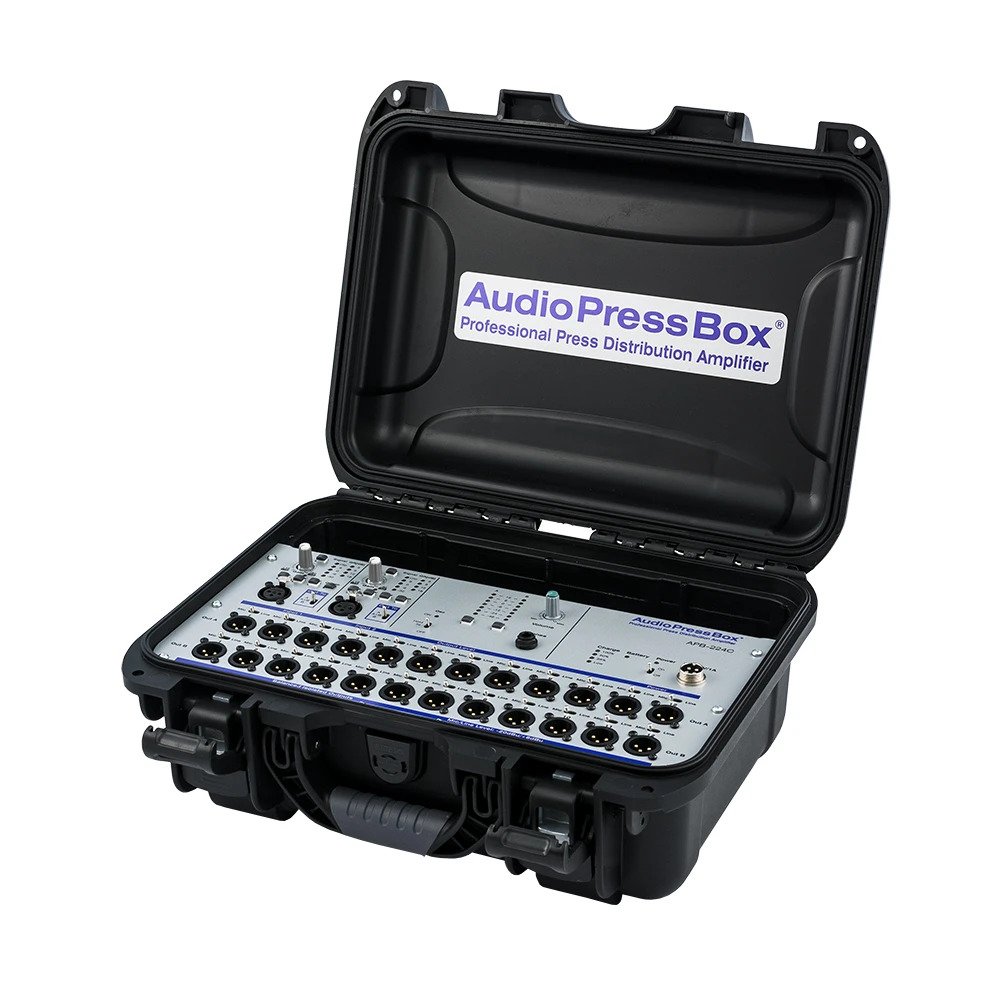

Active audio splitter press box, 2 x XLR microphone/line inputs and 24 XLR microphone/line outputs. Portable system, powered by a Li-Ion battery with a runtime of up to 10 hours.

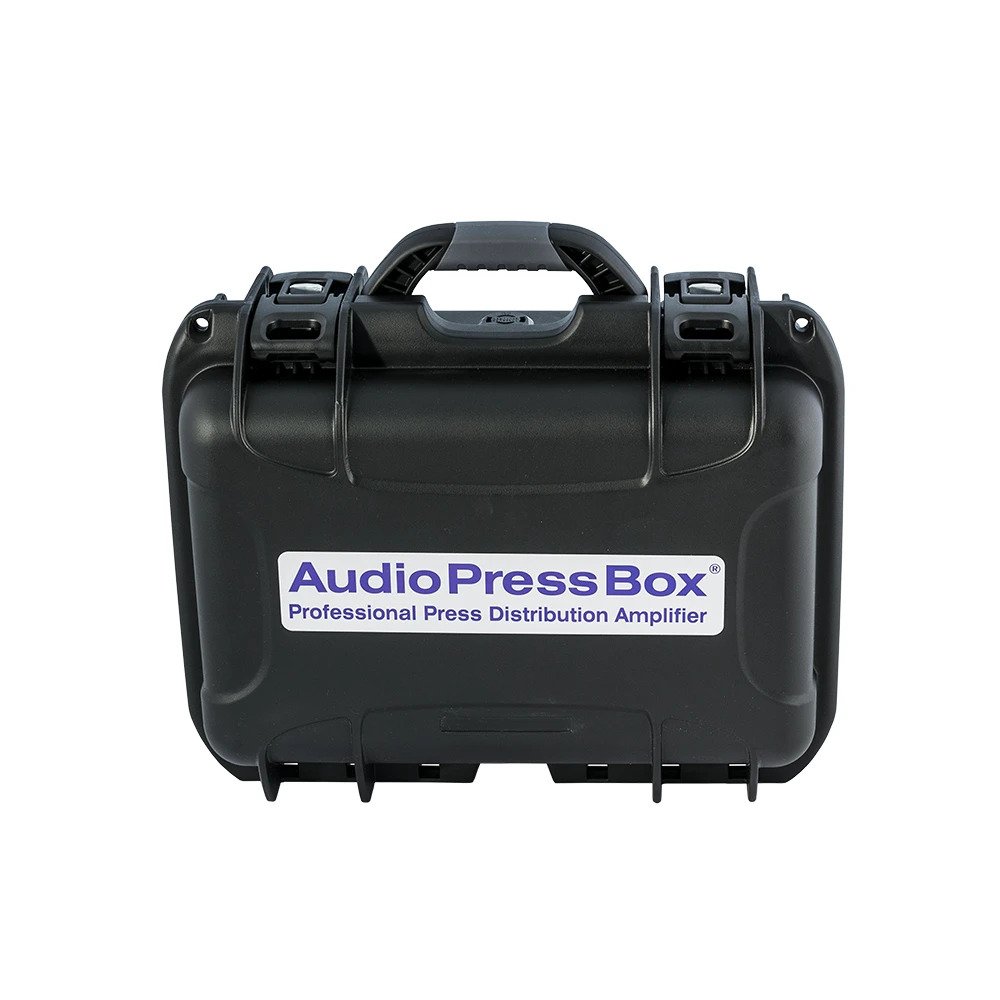

mounted in a weather-resistant casing
2 x microphone/line inputs with switchable Phantom Power, balanced, with gain control and 26 dB pad attenuation
each input is routable to output groups A, A+B, B
24 x balanced outputs with individually isolated transformers
each output can be switched to microphone or line level
2 internal output groups: 12 x group A and 12 x group B
switchable high-pass filter for each input
compressor and limiter switchable on each input
PFL/AFL for each input/output channel
constant test signal oscillator
control switch for PFL/AFL
Li-Ion AccuPack battery with microprocessor-controlled battery management
