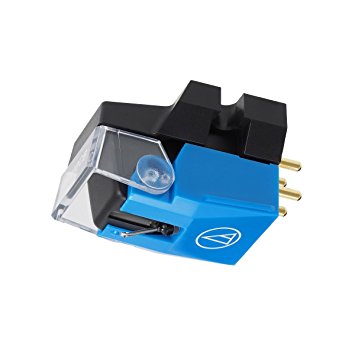

Audio-Technica VM-510 CB - replacement cartridge for turntables, entry-level. It features dual magnets arranged in a "V" shape, ensuring compatibility with the left/right channels of a stereo recording for precise channel separation and extended frequency response. The 0.6 mil Conical Bonded stylus accurately reproduces recordings and significantly reduces record wear.
Features:
VM cartridge with dual magnets and 0.6 mil Conical Bonded stylus
Aluminium cantilever
Paratoroidal coils
Central shielding between left and right channels to reduce crosstalk up to 40dB
Durable polymer housing with reduced resonance
Technical specifications:
Frequency response: 20-20,000 Hz
Channel separation: 25 dB (1 kHz)
Vertical tracking force: 1.8-2.2 g (2.0 g standard)
Stylus construction: Conical Bonded
Recommended load impedance: 47,000 ohms
Output: 5.0 (mV at 1 kHz, 5 cm/sec)
Channel balance: 1.5 dB (1 kHz)
Stylus shape: 0.6 mil Conical
Cantilever: aluminium tube
Mount: half-inch
Replacement stylus: VMN20EB
Vertical tracking angle: 23°
Dimensions (WxDxH): 17.0 x 28.2 x 17.3 mm
Weight: 6.4 g
Included accessories: 4 cartridge installation screws (5 mm x 2, 10 mm x 2), 2 washers, 2 nuts
