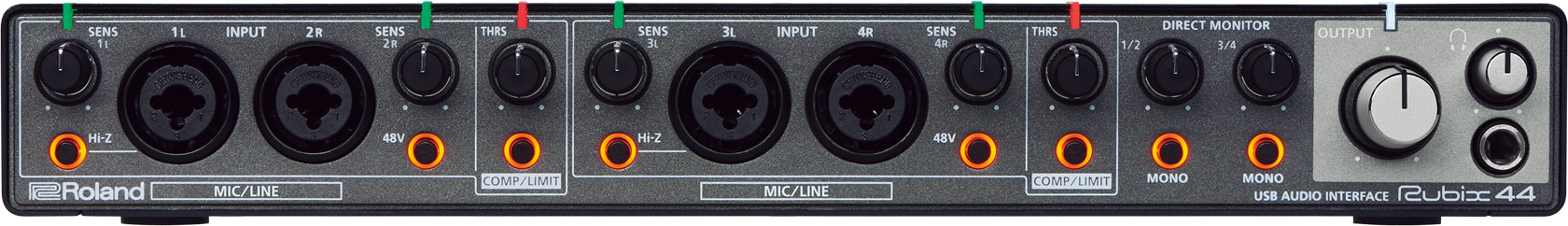

Roland Rubix44 - high-resolution USB audio interface, with 4 inputs and 4 outputs for MAC, PC and iPad. It offers the perfect balance of high-fidelity sound, solid construction, compact size, affordable price, and essential features for today's musicians and music producers. Rubix22 delivers clear and well-defined sound, ensuring high-resolution audio up to 24-bit/192kHz. The unit is designed to have low noise from input to output. Thanks to its almost universal USB port, the unit works seamlessly with Mac and PC, and is also compatible with iPads for the best performance in music production.
- USB audio interface with 4 inputs/4 outputs
- 4 low-noise microphone preamps and XLR combo jacks
- Hardware compressor/limiter
- Hi-Z input for guitar and other high-impedance sources
- MIDI In/Out ports
- Remarkable protection, low-noise design
- Durable and compact metal construction
- Large, visible indicators show essential information
- Class compliant drivers, low latency
- Ground lift for silent operation on different stages
- Includes Roland Cloud Pro
Studio-quality sounds that you can take with you anywhere
When it comes to audio interfaces, nothing is more important than sound quality, which you should not sacrifice for a portable and affordable audio interface. Rubix44 ensures clear, detailed, and transparent sounds, low-noise microphone preamps, and provides high-resolution audio up to 24-bit/192kHz. The interface has a durable metal housing, low-noise design, and compact size. Since you can take the Rubix44 with you anywhere, you will appreciate the protection and ground lift that will allow you to achieve clear sounds anywhere.
Hardware compressor/limiter
Extremely dynamic sources, such as a singer's voice or percussion instruments, need to be adjusted frequently, especially when recording live. Dynamic processors ensure that signals do not drop out and do not produce unwanted distortion. The compressor/limiter of the Rubix44 unit provides a calm atmosphere during intense recordings.
Designed for Mac, PC and iPad
Rubix44 is compact and versatile, featuring class compliant drivers with low latency for Mac and PC, making it easy to set up the unit and achieve reliable performance. Rubix44 has numerous inputs and outputs for expanding your studio setup, and is also compatible with iPad, providing you with a compact system for music recording/production on the go or for live performances.
4 microphone preamps and 4 separate outputs
The four microphone preamps of Rubix44 are designed for low noise and high definition. They produce clear and transparent sounds with plenty of headroom to capture every detail of the elements you want to record. The multi-purpose combo jacks help you connect a wide range of sources without needing adapters or special cables, and with the four individual outputs, you can create more sophisticated routing and monitoring setups. This feature is useful for sending a click track to a performer, setting up a stage monitor, or sending audio to an external device.
Large level indicators
Studios and stages can be dark spaces, and achieving appropriate levels is essential. It is understandable that you want to focus on your performance, not on small level indicators that are hard to see. Rubix44 features visible indicators that are an integral part of the unit's design. They show whether a channel has an input signal or whether overload will occur, even from a distance.
Technical specifications:
- Number of audio channels for recording/playback:
- Recording: 4 channels
- Playback: 4 channels
- Signal processing:
- PC interface: 24 bits
- AD/DA conversion: 24 bits
- Sampling frequency:
- AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
- Interface:
- Hi-Speed USB
- MIDI IN, OUT
- Connectors:
- Input (1L, 2R, 3L, 4R): XLR (balanced, phantom power: +48 V, 6 mA Max)
- Input (1L, 2R, 3L, 4R) jack: 1/4-inch TRS (balanced)
- Headphones: 1/4-inch stereo jack
- Output (1L, 2R, 3L, 4R): 1/4-inch TRS jack (balanced impedance)
- MIDI (IN, OUT)
- USB port: USB Type B
- DC 5V port: USB Type micro B
- Controls:
- SENS potentiometers 1L, 2R, 3L, 4R
- Hi-Z switches
- 48V switches
- THRS potentiometers
- COMP/LIMIT switches
- DIRECT MONITOR potentiometer 1/2
- DIRECT MONITOR potentiometer 3/4
- MONO switches
- OUTPUT potentiometer
- PHONES potentiometer
- GROUND LIFT switch
- POWER SOURCE switch
- LOOPBACK switch
- COMP/LIMIT TYPE 1/2 switch
- COMP/LIMIT TYPE 3/4 switch
- Indicators:
- Level indicators (1L, 2R, 3L, 4R)
- Level indicators (COMP/LIMIT)
- POWER indicator
- Hi-Z indicator
- 48V indicator
- COMP/LIMIT indicator
- Features:
- Nominal input level:
- Input (1L, 2R, 3L, 4R) XLR connectors: -60-- -12 dBu
- Input (1L, 2R, 3L, 4R) 1/4-inch TRS jacks: -44--+4 dBu
- Maximum input level:
- Input (1L, 2R, 3L, 4R) connectors (XLR type): +2 dBu
- Input (1L, 2R, 3L, 4R) 1/4-inch TRS jacks: +18 dBu
- Nominal output level:
- Output (1L, 2R, 3L, 4R): -6 dBu (balanced impedance)
- Maximum output level (1L, 2R, 3L, 4R): +8 dBu (balanced impedance)
- Maximum output power headphones: 20 mW + 20 mW (L + R, 47 ohms load)
- Headroom: 14 dB
- Input impedance:
- Input (1L, 2R, 3L, 4R) XLR connectors: 4 k ohms or more (balanced)
- Input (1L, 2R, 3L, 4R) 1/4-inch TRS jacks: 15 k ohms or more (balanced)
- Input (1L, 3L) 1/4-inch jack: 500 k ohms or more (when Hi-Z is activated)
- Output impedance:
- Output (1L, 2R, 3L, 4R): 2 k ohms (balanced)
- Headphones: 47 ohms
- Residual noise level:
- Input (1L, 2R) --> Output (1L, 2R): -94 dBu typ
- Dynamic range:
- AD block input (1L, 2R, 3L, 4R): 104 dB
- DA output (1L, 2R, 3L, 4R): 109 dB
- Operating system:
- Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
- Apple Mac OS X 10.10 or newer
- Apple iOS 9 or newer
- Dimensions (WxDxH): 310 x 165 x 46 mm
- Weight: 1.8 kg
- Included accessories: installation guide, safety instructions, power cable, USB cable, Roland Cloud Pro
