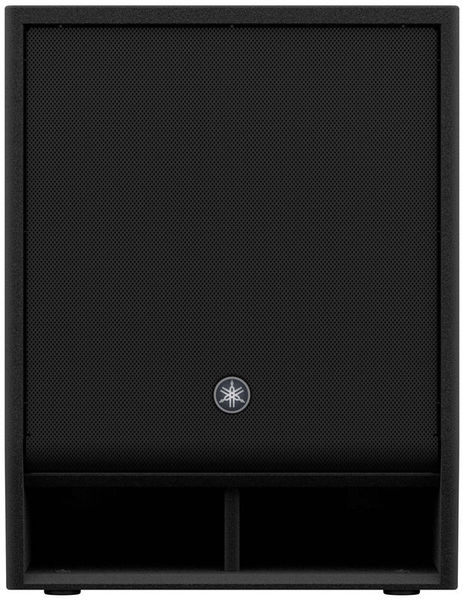

Yamaha DXS-15 XLF is a compact bass-reflex active subwoofer that extends down to a low frequency range of 33 Hz, equipped with a highly efficient Class D amplifier, delivering a continuous power of 1230W and driving a 15" speaker.
15" low-frequency driver with ferrite magnet and 4" voice coil
nominal power: 1600 W
continuous power: 1230 W
maximum SPL: 136 dB SPL
amplifier class: Class D
frequency range: 33 Hz - 150 Hz
sampling rate: 96 kHz
FIR filter
A / D D / A converters: 96 kHz AD / DA
analog input: XLR / 6.3 mm combo x 2
analog output: XLR3-32 x 2, CH1 / 2: THRU or DSP OUT
USB 2.0 Host 5 V 500 mA for USB DATA storage/loading
