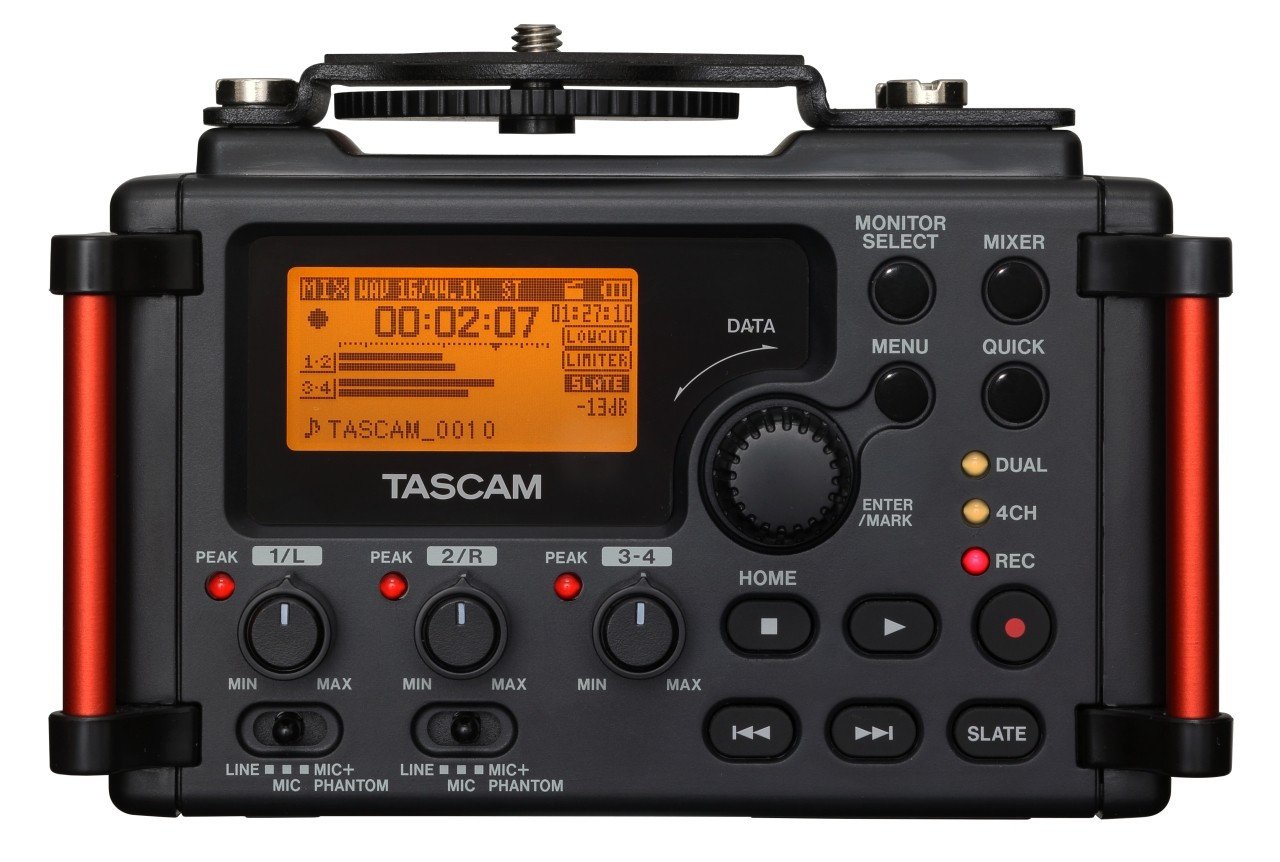

Tascam DR-60DMK2

Tascam DR-60DMK2 - Portable recorder, represents the perfect solution for film production using DSLR equipment.

Essential features:

• The HDDA microphone preamps provide a gain of up to 64 dB. Up to four channels can be recorded simultaneously on the internal SD card, at a WAV file resolution of up to 96 kHz/24 bit.

• Two of the microphone inputs use XLR connectors with 48 V Phantom Power, while the other two use a 1/8 inch stereo connector for wireless and lavalier microphones.

Technical specifications:

Storage:

• SD (64MB - 2GB), SDHC (4GB - 32GB)
• Recording formats:
• WAV 44.1k/48k/96k Hz, 16/24-bit
• BWF 44.1k/48k/96k Hz, 16/24-bit

Number of channels: 4 (stereo x 2)

Analog audio input:

• Connectors: 1/L, 2/R
• Connection: XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4" (6.3mm) TRS standard jack

Set "MIC / MIC+PHANTOM"

• Input impedance: 2kOhm
• Phantom power: 48V ±4V (10mA/CH) / 24V ±4V (10mA/CH)
• Maximum input level: 0dBu
• Minimum input level: -72dBu
• Microphone input gain: TRIM MAX
• LOW: +11dB
• MID: +36dB
• HIGH: +52dB
• HIGH+PLUS: +64dB

Set "LINE"

• Input impedance: 10kOhm
• Standard input level: +4dBu
• Maximum input level: +24dBu

3-4 connector

• Connection: 1/8 inch (3.5mm) stereo mini jack
• Input impedance: 10kOhm
• Maximum input level: +10dBV
• Minimum input level: -50dBV
• Microphone input gain: TRIM MAX
• LOW: +3dB
• HIGH: +26dB
• HI + PLUS: +38dB

Camera connection:

• Connection: 1/8 inch (3.5mm) stereo mini jack
• Input impedance: 10kOhm
• Standard input level: -10dBV
• Maximum input level: +6dBV

Analog audio output:

CAMERA OUT

• Connection: 1/8" (3.5mm) stereo mini jack
• Output impedance: 200Ohm
• Standard output level -50dBV
• Maximum output level -30dBV

LINE OUT

• Connection: 1/8 inch (3.5mm) stereo mini jack
• Output impedance: 200Ohm
• Standard output level -10dBV
• Maximum output level +10dBV

HEADPHONES

• Connection: 1/8 inch (3.5mm) stereo mini jack
• Maximum output level: 50mW + 50mW

USB

• Connection: Mini-B
• Format: USB2.0 HIGH SPEED

Power supply:

• 4 x AA batteries (Alkaline / NI-MH)
• USB bus
• AC adapter (TASCAM PS-P520U, sold separately)
• External battery kit (TASCAM BP-6AA, sold separately)
• Power consumption: 5.4W

• Dimensions: 133 × 93.2 × 78 mm
• Weight: 510 g
• Operating temperature: 0˚C - 40˚C
• Included accessories: USB cable, user manual

• Frequency response 20Hz to 20kHz +0.5-2dB (LINE IN or MIC IN to LINE OUT, Fs 44.1k/48k Hz, JEITA)
• 20Hz to 40kHz +0.5-3dB(LINE IN or MIC IN to LINE OUT, Fs 96kHz, JEITA)
• Distortion 0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA)
• S/N ratio 92 dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA)
• Equivalent input noise -120dBu or less
