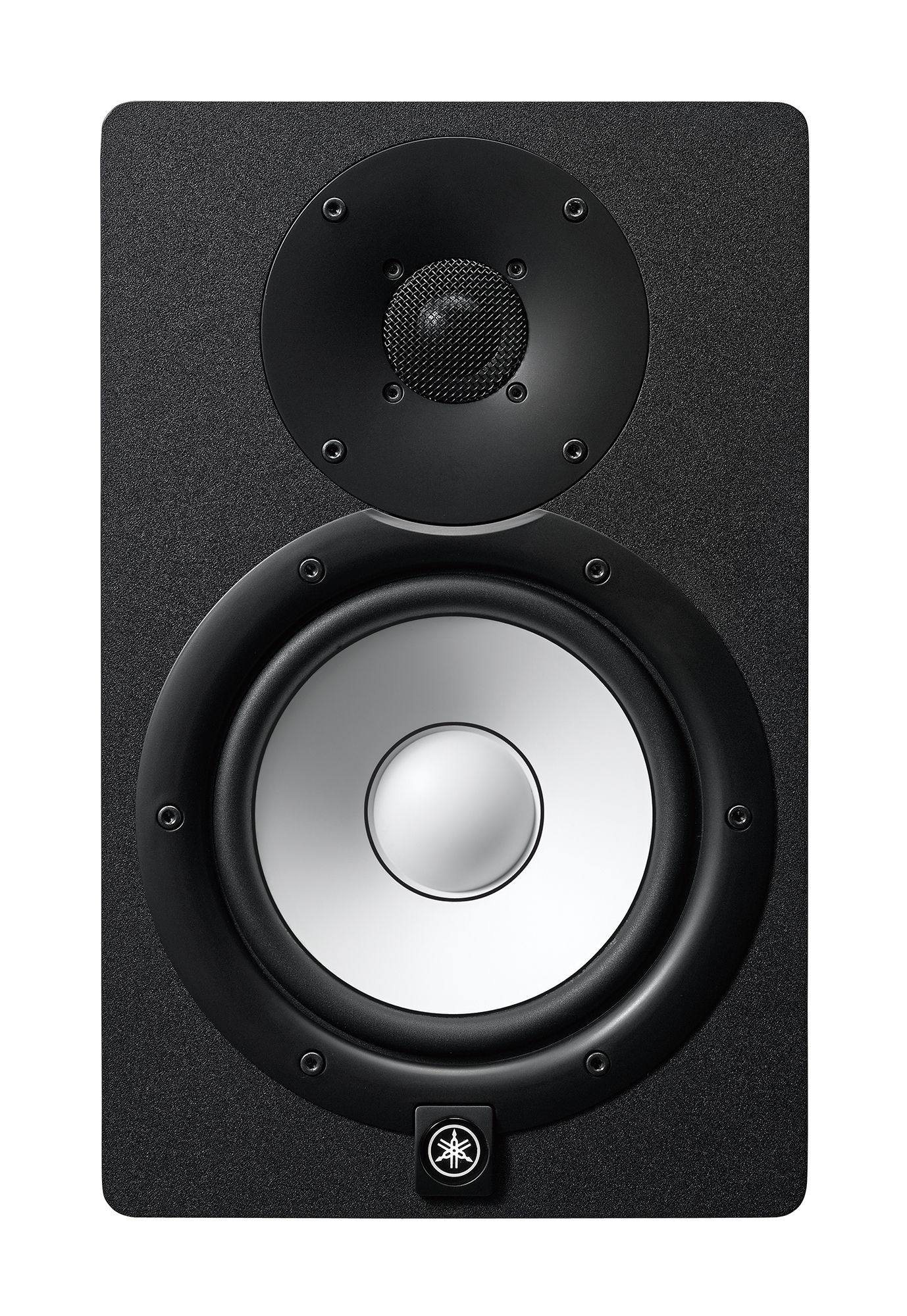

Yamaha HS7i - Nearfield studio monitor, 2-way bass reflex construction, bi-amplified, with a 6.5" bass driver and a 1" dome tweeter. The built-in amplification system provides a power output of 95W (60W LF plus 35W HF). It features ROOM CONTROL and HIGH TRIM response, with TRS and XLR jack inputs allowing for balanced or unbalanced signal input.
Unlike its predecessors, this monitor offers the possibility of hanging installation, providing 4 mounting points with threads, perfect for studio and public space installations.
The cabinet is constructed from very durable MDF with dampened acoustic response and an ideal port design that reduces noise by up to 6dB. Yamaha transducers provide smooth response across multiple bands.
Technical Specifications:
- Monitor type: Active 2-way bi-amplified studio monitor
- Frequency response (-10dB): 43Hz - 30kHz
- Frequency response (-3dB): 55Hz - 24kHz
- Low-frequency driver: 6.5"
- High-frequency tweeter: 1" dome
- Crossover: 2kHz
- Output power: 95W (LF:60W, HF:35W)
- Input sensitivity: -10 dBu/10k ohms
- Input/output connectors: XLR (balanced), Jack (balanced)
- Volume control: +4dB/center click
- EQ: High-pass filter selector (+/- 2dB at HF) / ROOM selector (0/-2/-4 dB < 500Hz)
- Indicators: Power ON (white LED)
- Power consumption: 55W
- Cabinet material: MDF
- Mounting points: M8 threaded
- Dimensions (WxDxH): 210 x 332 x 284 mm
- Weight: 8.7 kg
- Accessories: user manual, power cable, mounting screws
- Finish: black
