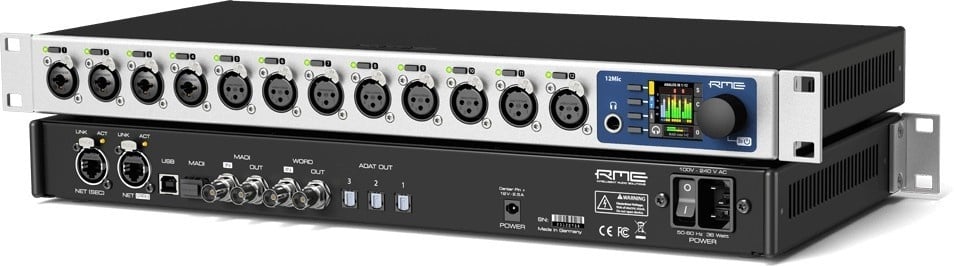

RME 12Mic Dante

RME 12Mic Dante is a remotely controllable microphone preamp with 12 channels featuring Dante, ADAT, and MADI digital connectivity. The RME 12Mic-D includes 12 inputs for microphone or line signals with high-quality analog-to-digital converters, as well as a variety of additional functions, excellent for high-end audio recordings.

12Mic offers 12 high-quality preamplifiers with a 75dB gain range. All 12 channels accept line or microphone signals. The preamplifier includes Dante, ADAT, and MADI digital connectivity.

Specifications:

• -4 XLR-TRS combo inputs
• -8 XLR inputs
• -All analog inputs feature 75 dB gain
• -Headphone output for monitoring signals
• -World Clock I/O (BNC)
• -2x RJ45 1 GigE AVB, 8 streams (up to 16 per channel) per direction with redundancy
• -1 x MADI I/O coaxial
• -Dante connectivity
• -3 ADAT outputs
• -Internal routing up to 268 x 282 channels
• -19 inch rack
• -1.54 inch colour display
• -SteadyClock FS - ultra-low jitter digital clock technology
• -Remote via HTTP, JSON, IEEE 1722.1 AVDECC, MIDI over MADI
• -Internal PSU, optional 12V DC power supply
• -USB 2.0 (for remote control or firmware updates)
