MEC Pickups Balance Pot Module, for Passive Pickups

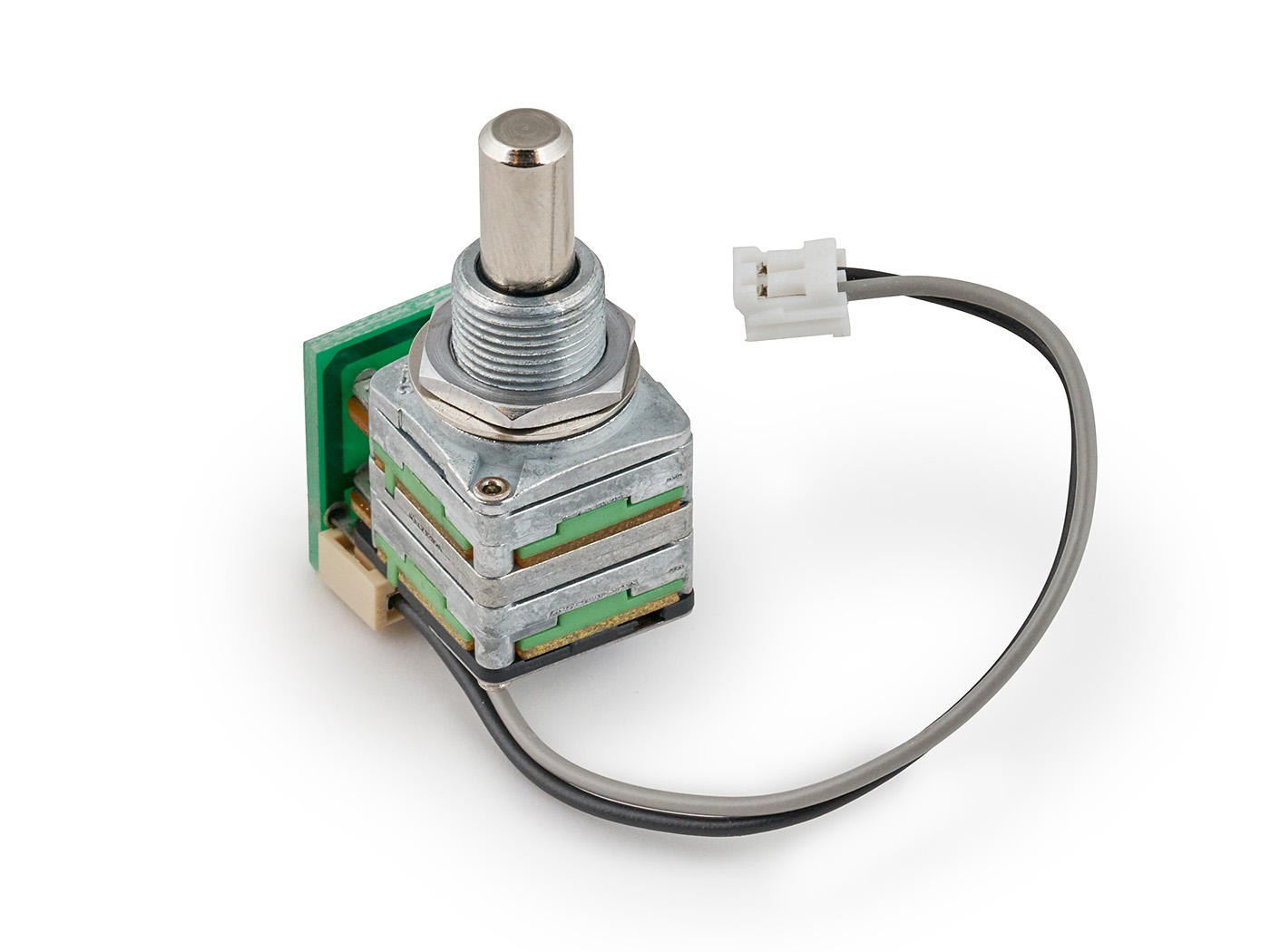

Balance Potentiometer Module

balance potentiometer module for passive pickups.
includes solid shaft and pre-equipped MEC M 85002 PCB module.
features M10 x 0.75 mm thread and 10 mm mounting diameter.
dimensions: 24 x 18 x 22 mm including packaging.
note: Return policy does not apply if wires are cut or soldered.

33⁹⁹ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

174 points of loyalty

Shipping 15.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Balance Pot Module, for Passive Pickups Add to cart: 33⁹⁹ €

- Balance potentiometer module
- Simple shaft
- R1 = 05A220k (resistance 220 kOhm, (A) logarithmic)
- R2 = 05C220k (resistance 220 kOhm, (C) inverse logarithmic)
- Pre-equipped with MEC M 85002 PCB module
- Non-solder JST R5 2 mm connector
- Suitable for balance control for passive pickups
- Thread M10 x 0.75 mm
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 11 mm
- Shaft diameter 6 mm
- Includes nut and washer
- Dimensions incl. packaging (L x W x H) 24 x 18 x 22 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or other damage affecting the condition of the goods is present.
