Neumann MCM 100

Final output module

final output module for Neumann Miniature Clip Mic KK 14 & MCM systems.
includes XLR connector and requires 48 V phantom power.
input type: 3.5 mm mini jack; Output: XLR-3M.
compact design: 22 mm diameter, 77 mm length, 96 g weight.
nominal impedance of 50 Ohms; 1000 Ohms under load.

96²¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

491 points of loyalty

Shipping 15.00 €

Warranty 24 months

Returns 14 days

request details

Neumann MCM 100 Add to cart: 96²¹ €

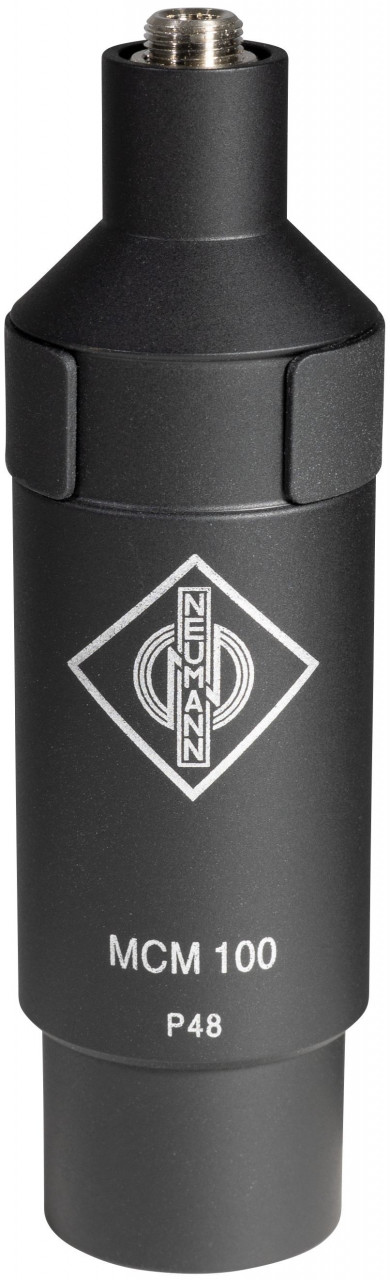

MCM 100 is a final output module that allows wired use of the Neumann Miniature Clip Mic KK 14 & MCM systems. The final stage includes an XLR connector and is powered by 48 V phantom power. The input is a 3.5 mm mini jack and the output has an XLR-3M connector.

Technical specifications:

Compatibility: Neumann MCM
Diameter: 22 mm
Length: 77 mm
Weight: 96 g
Current consumption (P48, IEC 61938): 3.5 mA
Required connector: XLR 3 F
Nominal impedance: 50 Ohms
Nominal impedance under load: 1000 Ohms

Product code: ZD-047807

Unit of sale: piece
