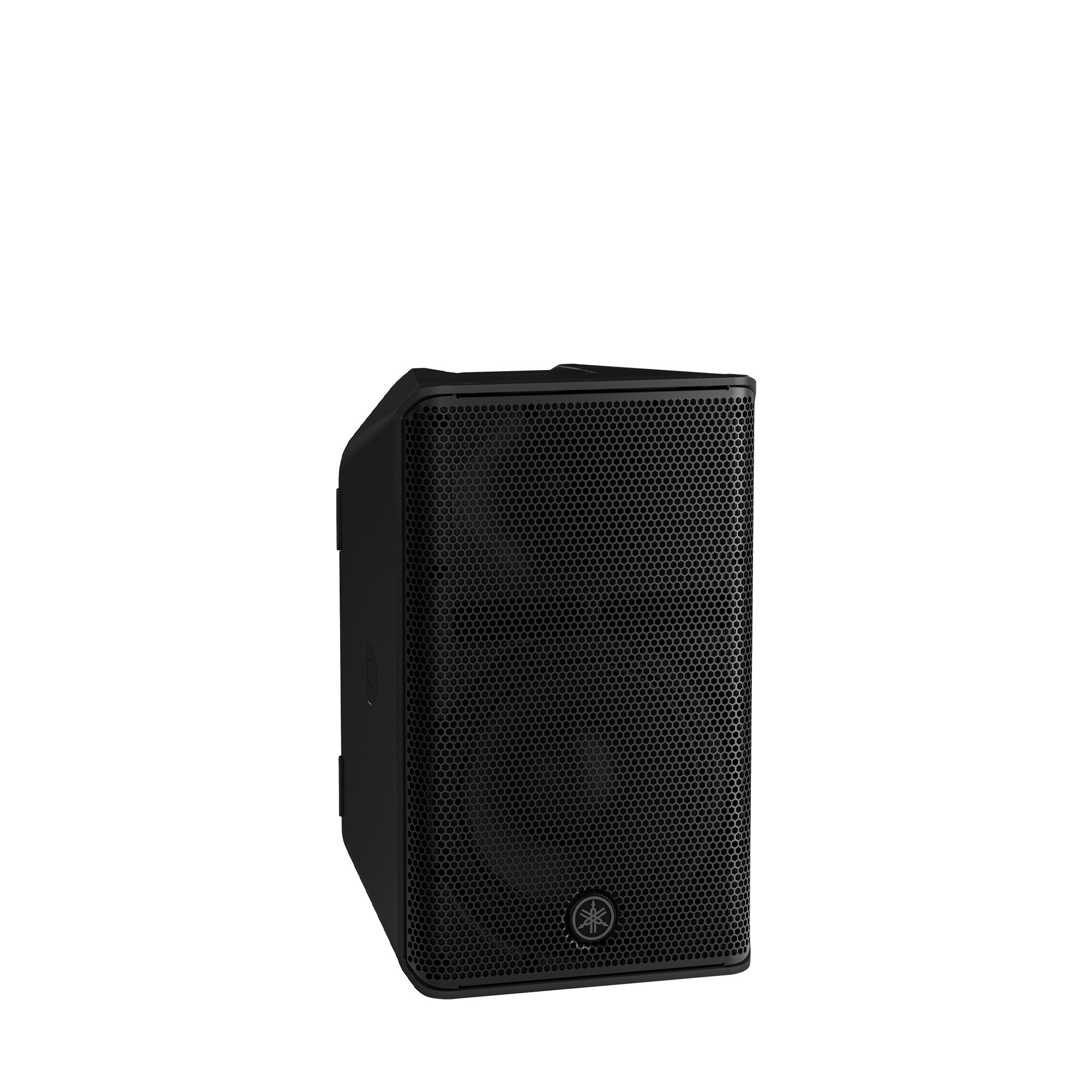

Yamaha DXR10 mk3

Active speaker

full-range active speaker with 2-way architecture and bi-amplification.
powerful 10" woofer and 1.75" tweeter for high-quality sound.
1000 W RMS / 2000 W peak power with a frequency response of 53 Hz – 20 kHz.
dSP functions including FOH/MAIN and MONITOR modes for versatile use.
compact design with multiple mounting options and Bluetooth audio control.

960⁸⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

4916 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha DXR10 mk3 Add to cart: 960⁸⁰ €

Yamaha DXR10 MK3 – Full-range active speaker with a 2-way architecture, suitable for general sound reinforcement, monitoring, or mobile use. Integrates Class D amplification and DSP processing for precise control and adjustment.

Active speaker, 2-way architecture, bi-amplified
Drivers: 10" woofer + 1.75" tweeter
Power: 1000 W RMS / 2000 W peak
Frequency response: 53 Hz – 20 kHz
Max SPL: 132 dB
Dispersion: 90° x 60°
Amplifier: Class D
DSP: FIR-X tuning, phase correction and EQ
DSP functions: FOH/MAIN and MONITOR modes, feedback suppressor
Control: D-REMOTE app (iOS/Android), Bluetooth audio
Inputs: 2x combo XLR/jack (Line/Mic)
Outputs: 2x combo XLR/jack (Thru/DSP Out)
Input sensitivity: adjustable up to +10 dB
Monitor angle: 55°
Mounting: 35 mm stand flange, multiple rigging points
Enclosure: plastic
Handle: 1 top
Dimensions: 310 × 502 × 310 mm
Weight: 14.5 kg
Colour: black

Product code: VHZ9560

Unit of sale: piece

Specifications:

Amplification - continuous power:	1000 W
Mid-bass speaker:	10"
High speaker:	1.75"
Lower frequency limit (Hz):	53 Hz
Upper limit high frequencies (kHz):	20 kHz
Maximum SPL (dB):	132 dB
technology:	Bluetooth
Enclosure:	Plastic
