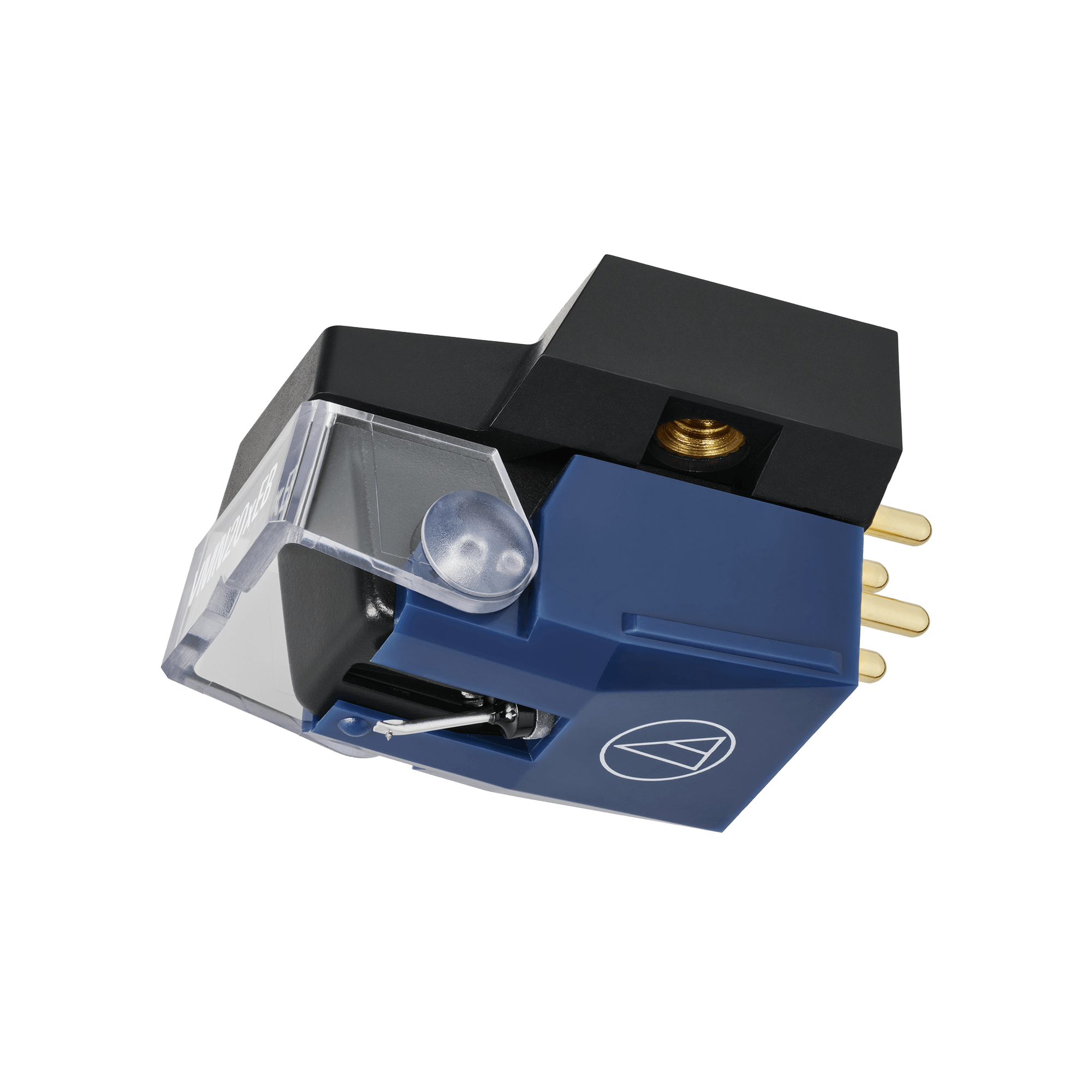

Audio-Technica AT-VM520xEB

Pickup Cartridge

ideal cartridge for vinyl enthusiasts seeking warm and detailed sound.
dual Moving Magnet (MM) type with a tubular aluminium cantilever.
0.3 × 0.7 mil elliptical stylus for precise tracking and rich details.
output voltage of 5.0 mV and frequency response of 20 – 20,000 Hz.
easy installation with threaded inserts and a V-shaped stylus protector.

127²⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

648 points of loyalty

Shipping 15.00 €

Warranty 24 months

Returns 14 days

request details

Audio-Technica AT-VM520xEB Add to cart: 127²⁴ €

Audio-Technica AT-VM520xEB – Cartridge for pickup, ideal for vinyl enthusiasts seeking a warm, detailed, and balanced sound. The design with two stacked coils for each channel enhances electromagnetic efficiency, reduces crosstalk, and provides a clear and natural stereo image.

The 0.3 × 0.7 mil elliptical stylus accurately follows the groove of the vinyl, faithfully reproducing the dynamics of the recording. Mounting is simplified due to the threaded inserts, and the V-shaped stylus protector allows for secure and easy positioning.

Main features:

Cartridge for DJ turntable
Type: Dual Moving Magnet (MM)
Tubular aluminium cantilever.
0.3 × 0.7 mil elliptical stylus – for precise tracking and rich details
Output voltage: 5.0 mV
Channel separation: 24 dB at 1 kHz
Frequency response: 20 – 20,000 Hz
Recommended tracking force: 2.0 g
Easy mounting – threaded inserts + V-shaped stylus protector
Replacement stylus: AT-VMN20xEB (sold separately)

Technical specifications:

Coil impedance: 3.2 kΩ
Coil inductance: 480 mH
DC resistance: 750 Ω
Recommended load impedance: 47 kΩ
Recommended load capacitance: 150 – 250 pF
Vertical tracking angle: 20°
Static compliance: 23 × 10^-6 cm/dyne
Dynamic compliance: 7 × 10^-6 cm/dyne (100 Hz)
Dimensions: 28 × 18.3 × 17.6 mm
Weight: 7.2 g
