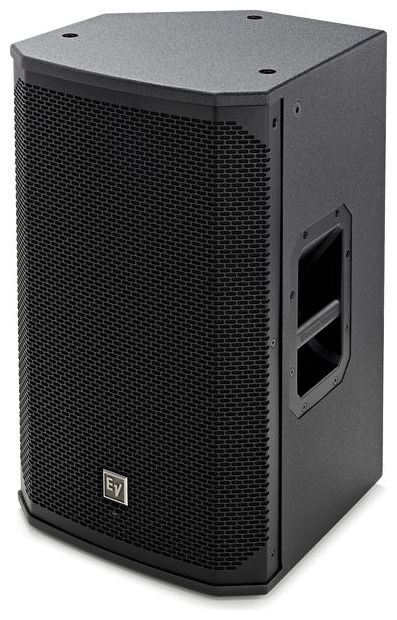

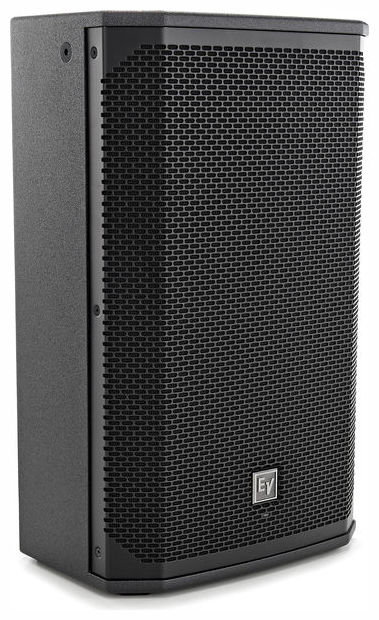

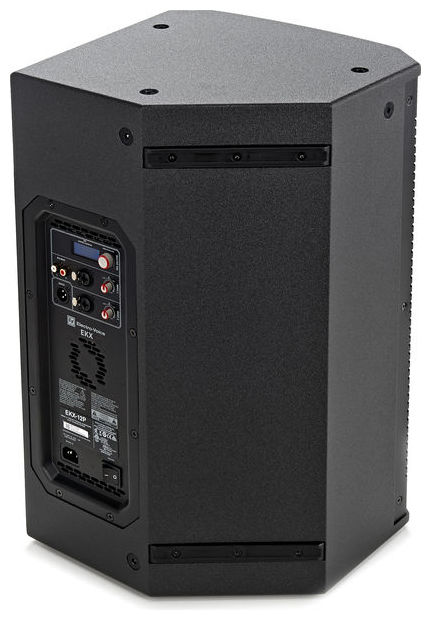

Electro-Voice EKX-12P

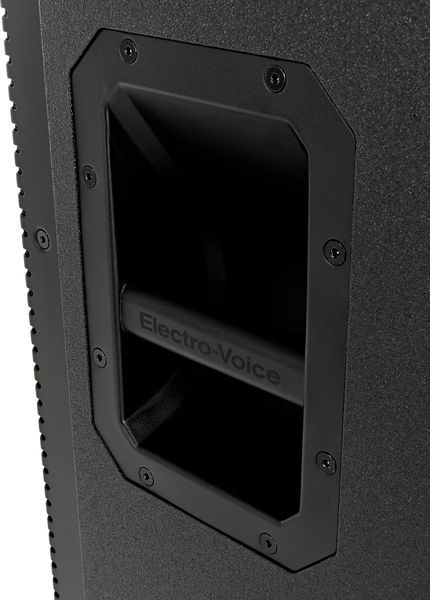

Electro-Voice EKX-12P - active speaker with high-precision QuickSmartDSP processing, offering a user interface with single-knob control and intuitive navigation menu via the LCD display. It is powered by an efficient 1500 W peak Class D amplifier, providing a peak SPL of 132 dB. It features a multi-speed fan cooling system, controlled based on the internal temperature of the enclosure, and patented Electro Voice Signal Synchronized Transducers™ (SST). All of this is housed in a 15 mm wooden cabinet with internal reinforcement, finished with EVCoat, 8 mounting points with M10 threads, pole mount, handles, and a metal protective grille.

Technical Specifications:

• Max SPL: 132 dB measured at 1m
• Power consumption: 1.8 A
• Power: 1500 W
• Frequency response (-3 dB): 60 Hz - 18 kHz Hz
• Frequency response (-10 dB): 50 Hz - 20 kHz Hz
• Dispersion (Nominal -6 dB): Horizontal 90 °
• Dispersion (Nominal -6 dB): Vertical 60 °
• Low-frequency driver: EVS-12M 300 mm (12 inches)
• High-frequency tweeter: DH-1M 1-inch titanium compression driver
• Crossover frequency: 1.7 k Hz

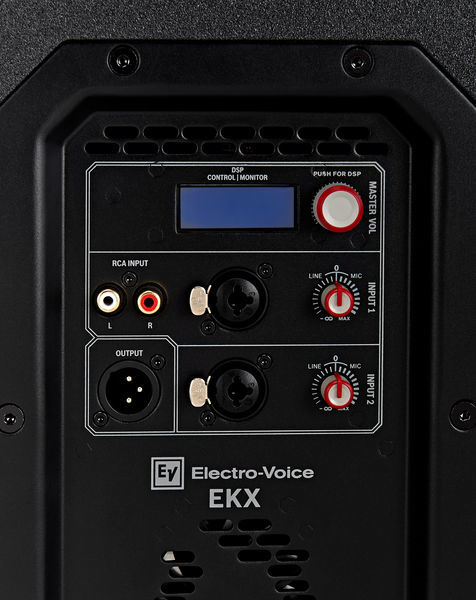

• Connections:
  • 1x stereo RCA input
  • 2x XLR/TRS combo jack
  • 1x XLR link output
• Cabinet material: 15 mm plywood covered with EVCoat
• Grille: 18 AWG electrostatically painted metal
• Suspension: 8x mounting points with M10 threads
• Dimensions (HxWxD):607 x 375 x 356 mm
• Weight Net: 18.8 kg
