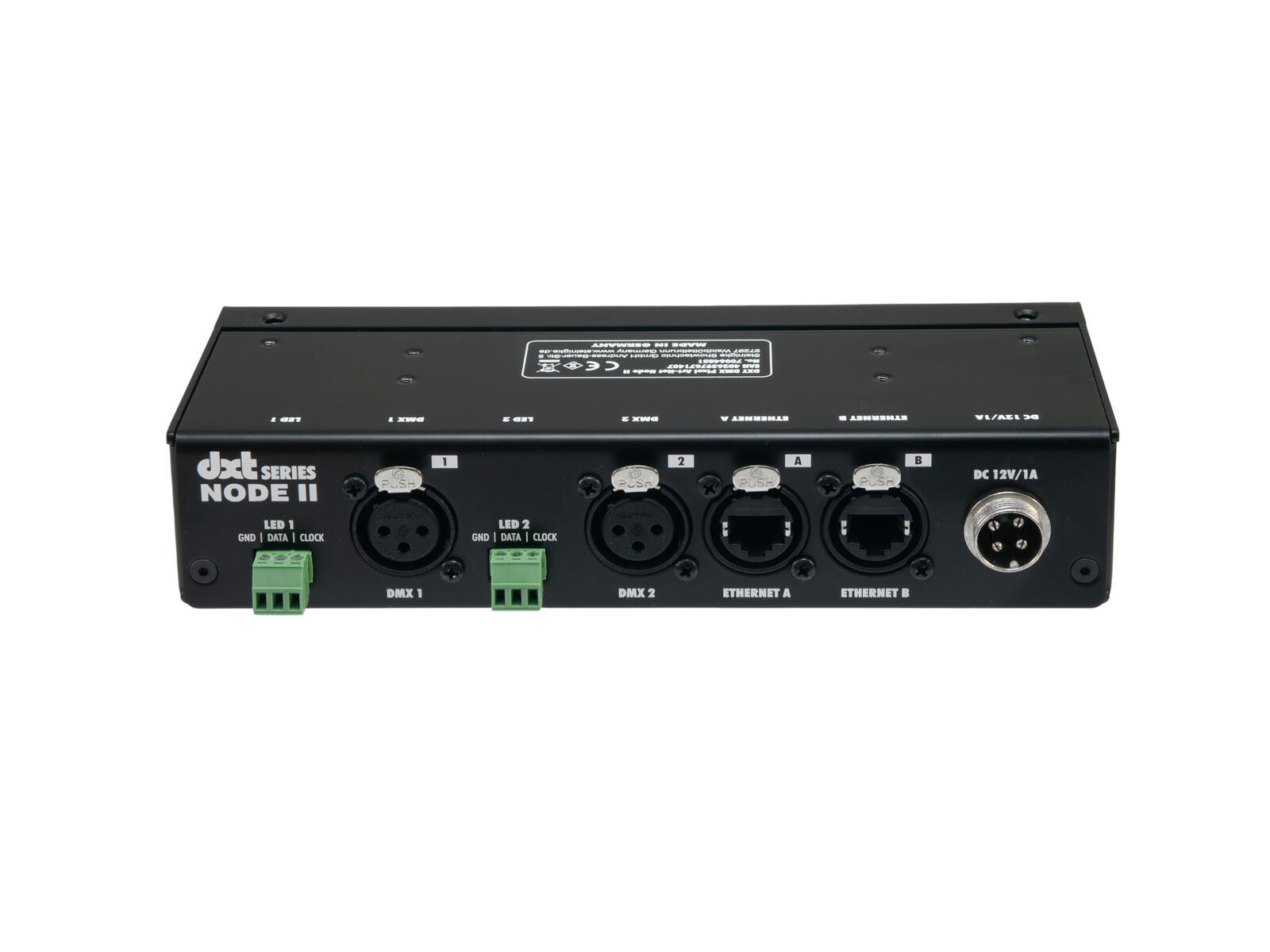

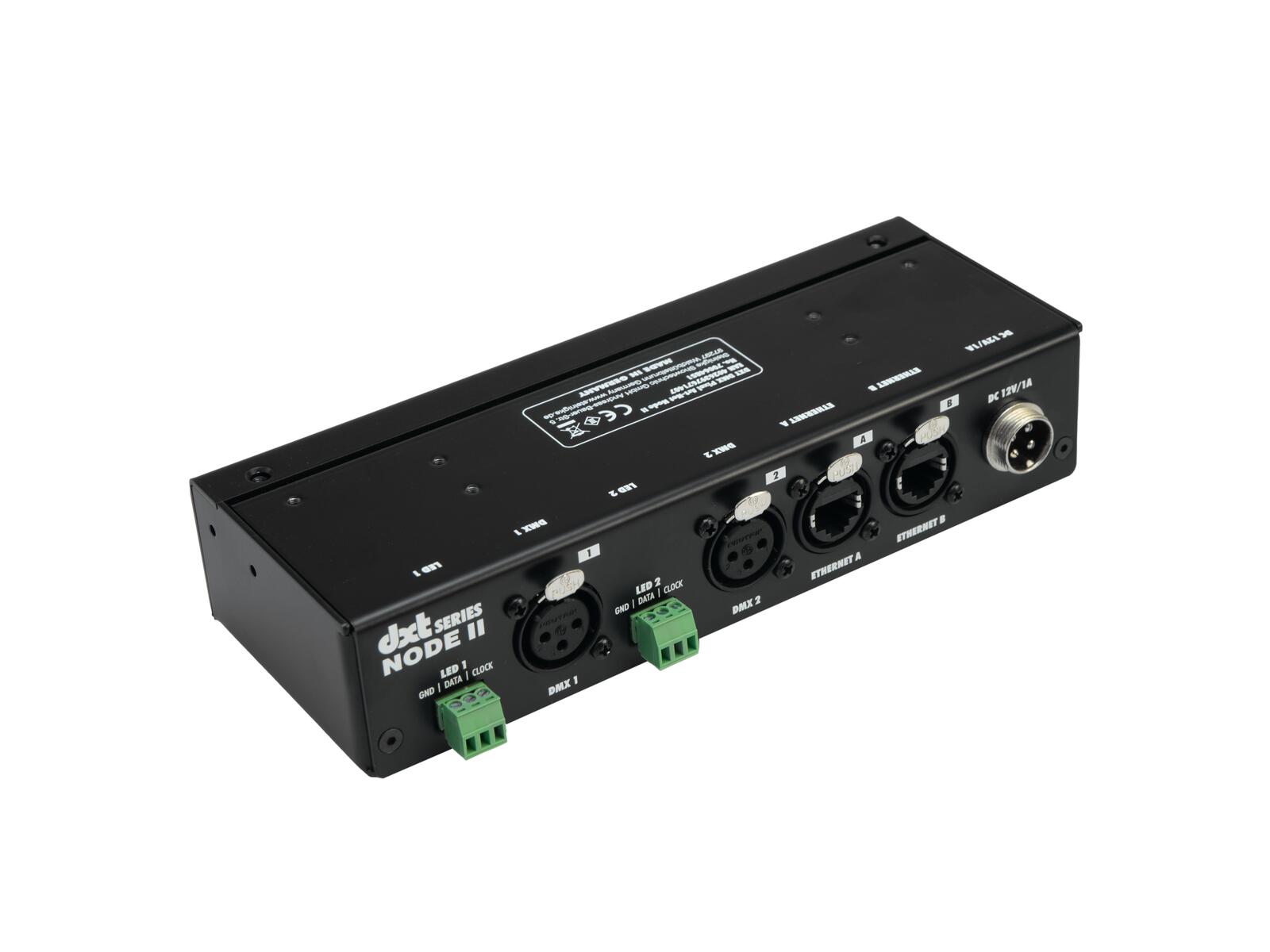

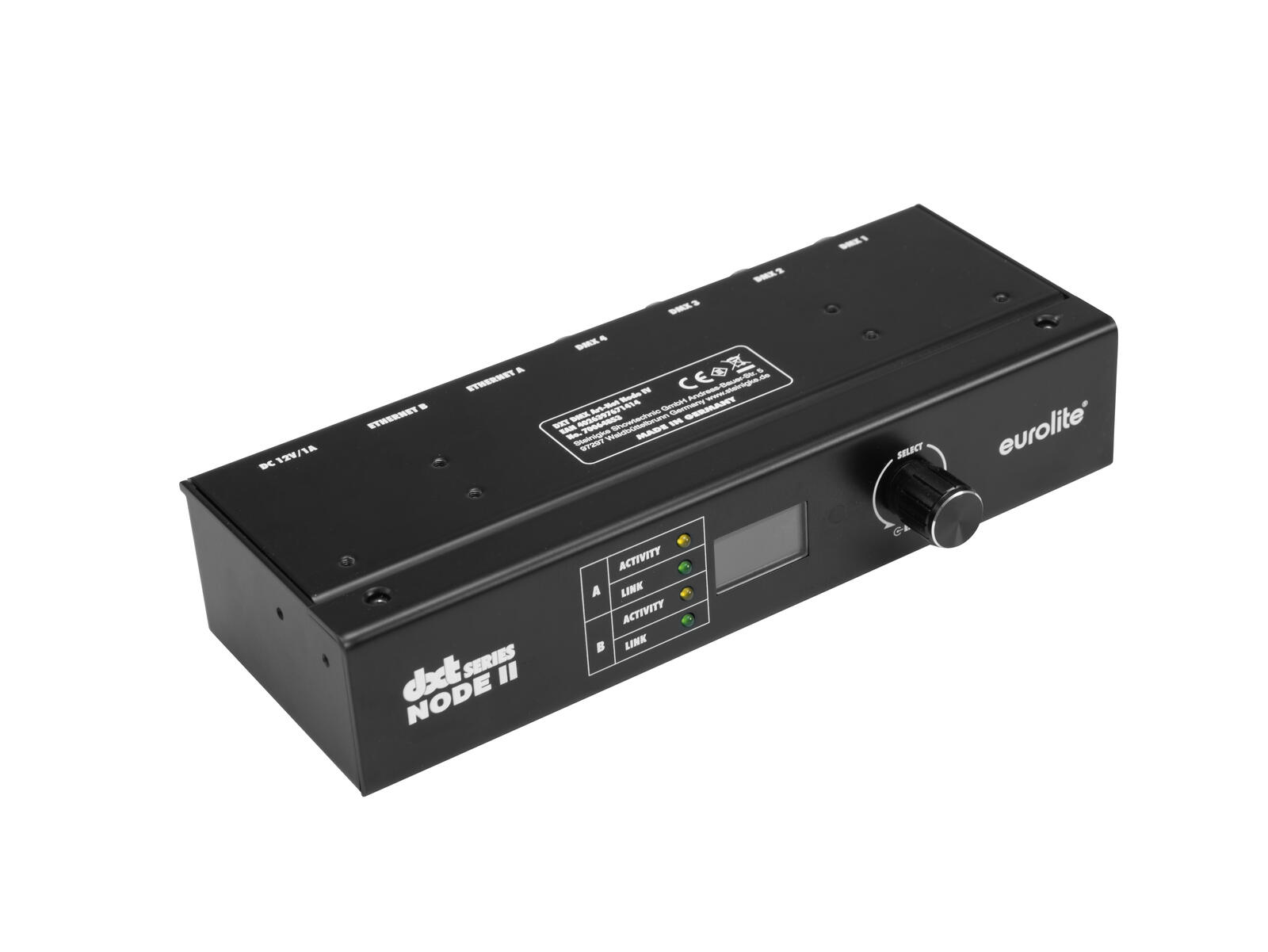

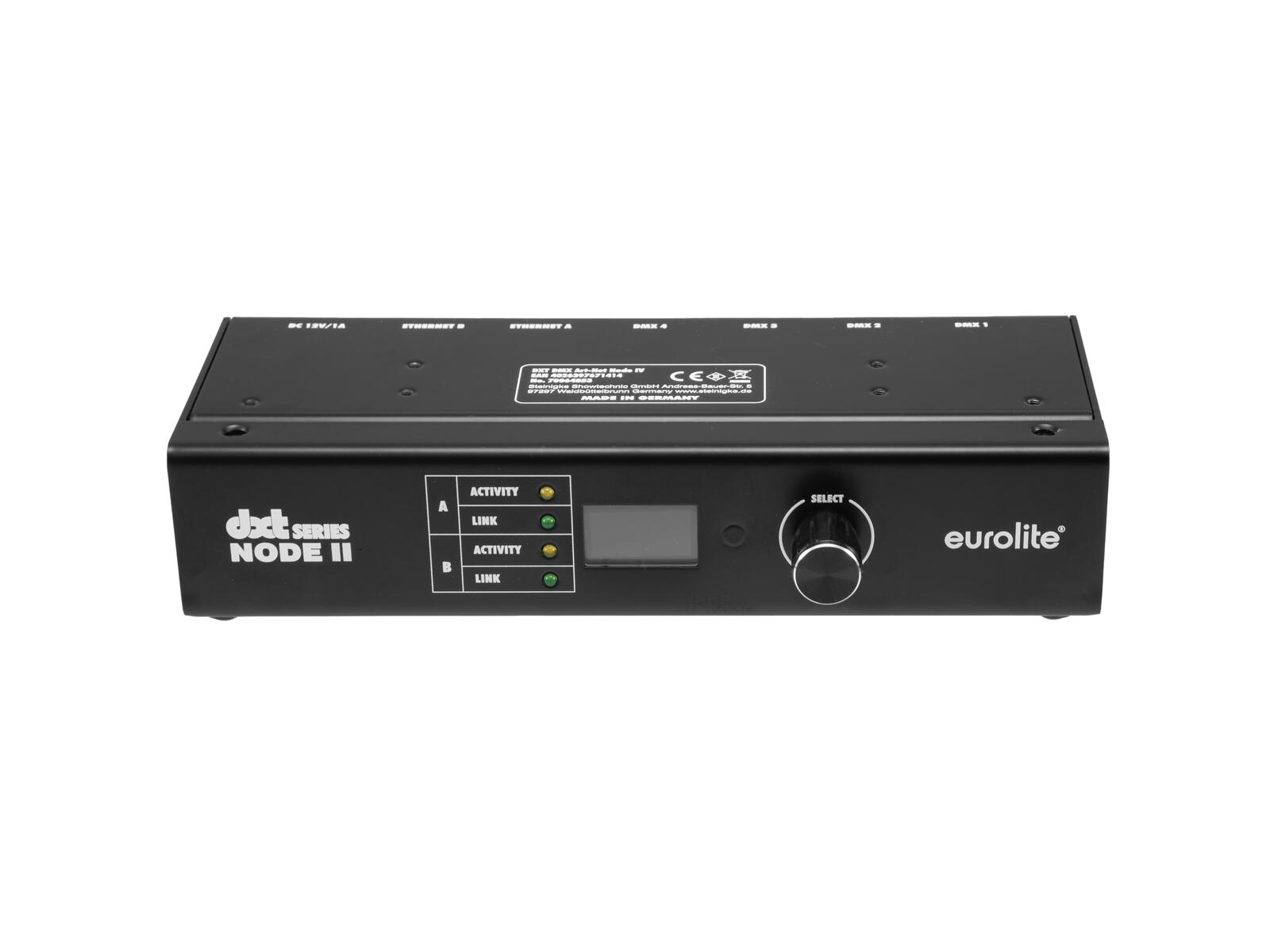

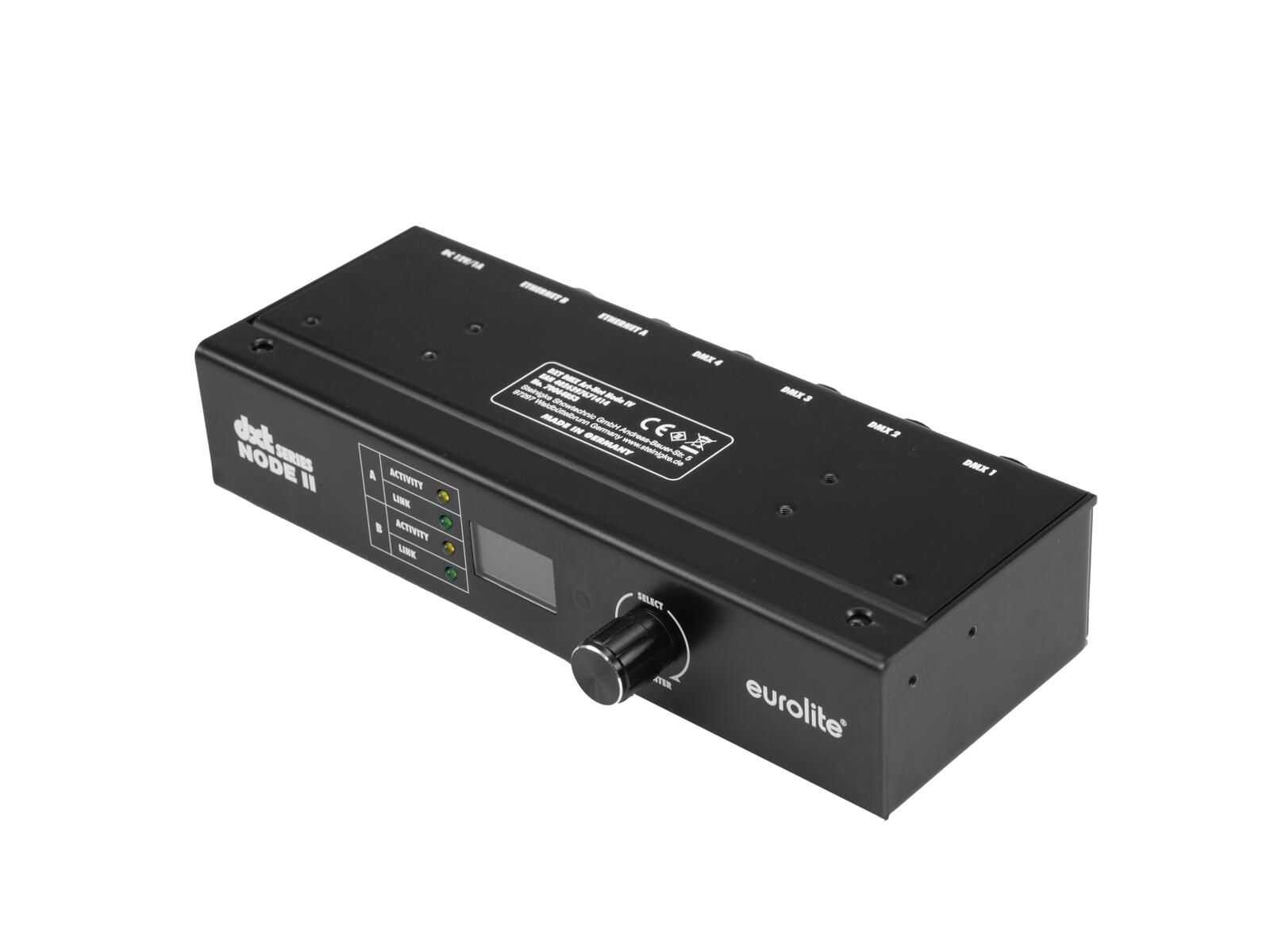

The DXT DMX Pixel Art-Net Node II is part of Eurolite's DXT series, which consists of high-performance and reliable DMX tools made in Germany. The Node II features two channels that can output either up to 512 DMX channels each or control up to 512 digital LED pixel channels. It provides two Neutrik XLR and 2 etherCON connectors, as well as two 4-pin removable terminals. The second etherCON connector enables daisy-chaining of the network connection with multiple devices. The device can be configured with an integrated OLED display, via Art-Net or with a website.
Art-Net interface for control of 1024 digital LED channels or DMX channels
2 x 3-pin output for digital LED strips
Link and activity LED for each network port
Supported by all applications with Art-Net output
ArtDMX reception via Broadcast or Unicast
Configuration with OLED display, website or Art-Net
Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe
DMX refresh rate: 40 Hz or 20 Hz
LED types: WS2801, WS2811, WS2812,...(all common 800 kHz types)
Can transmit up to 1024 DMX channels
Control via ArtNet
OLED display
Built with NEUTRIK connector
Desktop console housing 1 U
(19") 48.3 cm rack installation (optional)
Made in Germany
Power supply:
100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:
3 W
IP classification:
IP20
Power connection:
Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter
