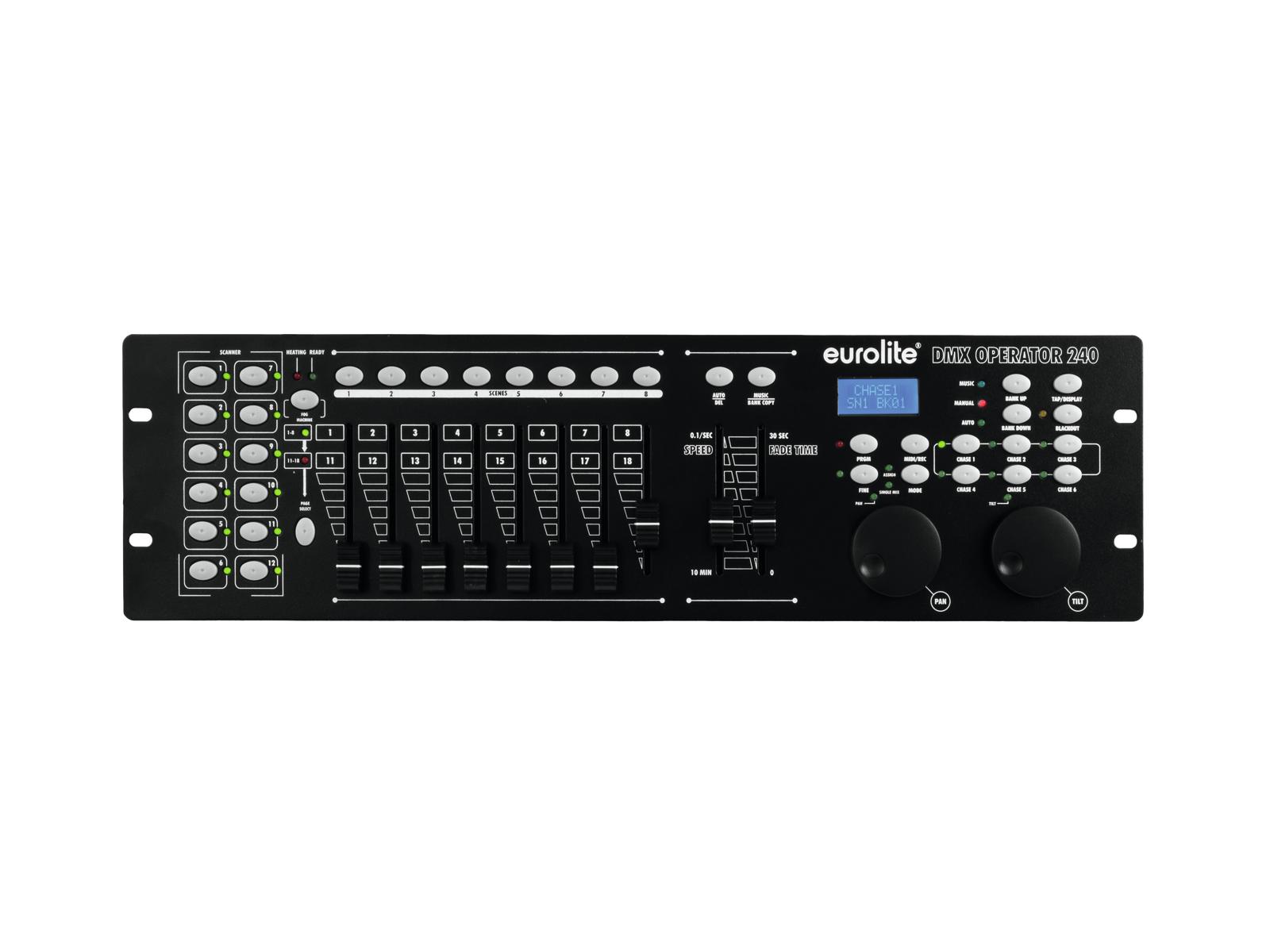

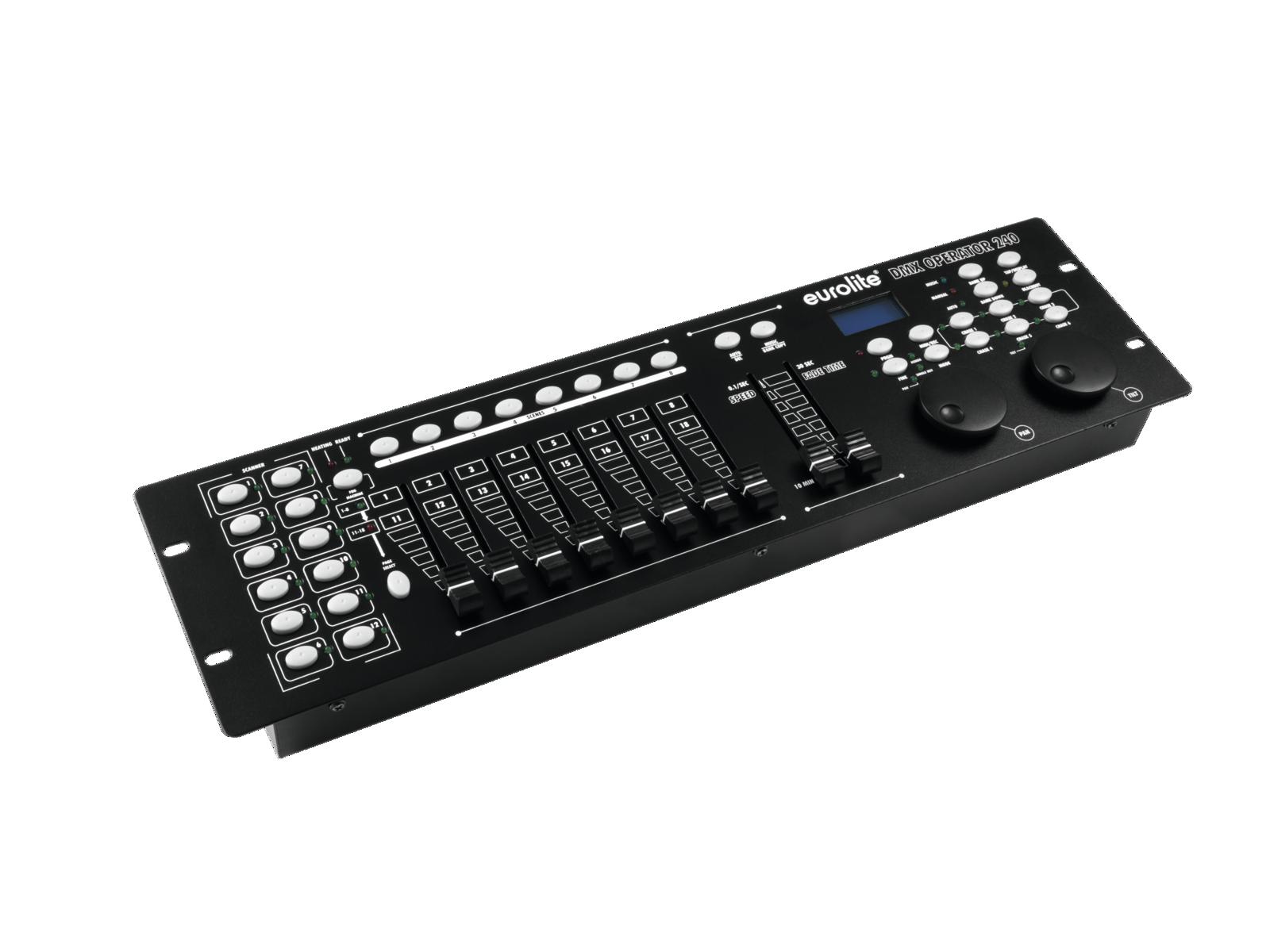

Eurolite DMX Operator 240

DMX controller for 12 moving head units, scanners or LED spots:

• can control 12 units with a maximum of 20 channels each
• 240 DMX channels, assignable, reversible
• USB port for firmware storage
• 240 programmable scenes, 30 banks x 8 scenes
• 6 programmable chases, each with 240 steps
• chase control modes: manual, time, sound-controlled
• adjustable fade between scenes: 0 - 30 s
• copy function for scenes and banks
• 2 faders for DMX level
• 8 DMX channel faders
• 2 jog wheels for Pan and Tilt
• blackout function
• integrated microphone for sound control modes
• RDM support
• possibility to control fog machine, 5-pin DIN connector
• supports standard MIDI
• 3-pin XLR connector with polarity selector
• rack-mountable, 3U
• dimensions: 483 x 135 x 71 mm
• weight: 2 kg
