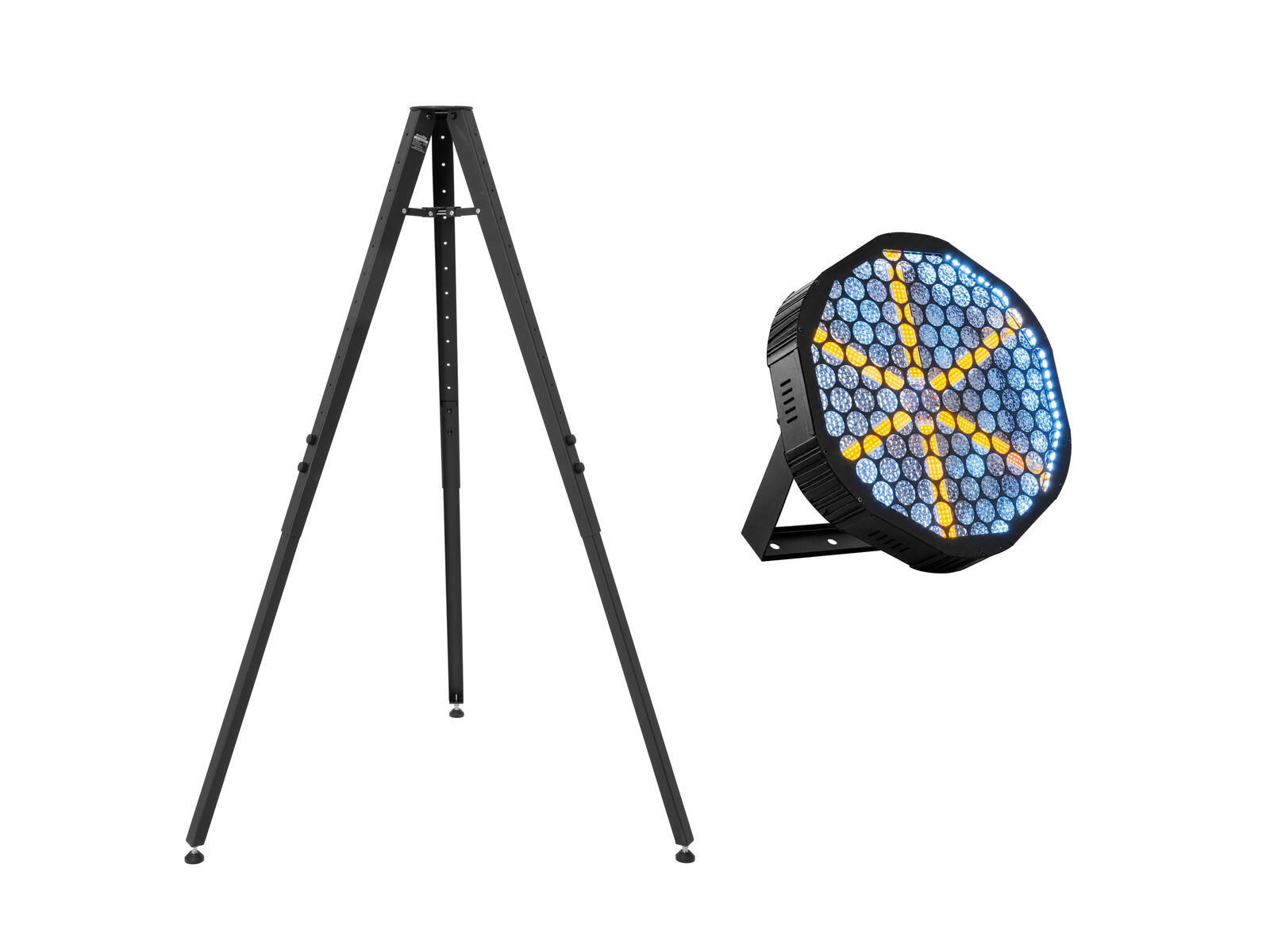

EUROLITE LED RETRO 6 Spot ABL
Warm white blinder with additional colored LEDs for atmospheric lighting
- 6 LEDs 60 W COB (chip-on-board) amber (A)
LEDs controlled separately - 108 LEDs 0.1 W SMD 5050 3in1 R/G/B (homogenous color mix)
12 segments controlled separately - Dimmer electronic
- Blinder effect
- 3 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via DMX; stand-alone; sound to light; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 120°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater; restaurants, bars and hotels; rental
- Very quiet working noise
- Application possibility: Standing; suspended
- Fixtures available for Light Captain
EUROLITE RS-1 Retro Stand
Retro style lighting stand with bag, maximum load 25kg, height 92-155 cm
- The article is delivered pre-assembled
- The article is delivered with practical transport bag
- Adjustable height
- For application areas such as: Wedding/gala/events
Scope of delivery
1 x EUROLITE LED RETRO 6 Spot ABL
- 1 x spotlight
- 1 x power cord
- 1 x user manual
1 x EUROLITE RS-1 Retro Stand
- 1 x stand
- 1 x bag
- 1 x screw
- 1 x nut
| Weight: | 15.80 kg |
| EUROLITE LED RETRO 6 Spot ABL |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 200 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.5 mm² H05VV-F |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 6 x 60 W COB (chip-on-board) amber (A)
108 x 0.1 W SMD 5050 3in1 R/G/B (homogenous color mix) |
| Flash rate: | 0.8 - 20 Hz |
| DMX channels: | 6; 10; 12; 16; 49 |
| DMX input: | 3-pin XLR (M) mounting version
5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version
5-pin XLR (F) mounting version |
| Cooling: | 2 x temperature-controlled fan |
| Control: | DMX; stand-alone; sound to light; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: | Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 4000 Hz |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color temperature: | 1800K |
| Lamp life: | 30000 h |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| USB port: | Type A |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Metal |
| Dimensions: | Width: 36 cm
Depth: 11 cm
Height: 37.5 cm |
| Weight: | 5.00 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE RS-1 Retro Stand |
| Maximum load: | 25 kg |
| Height: | Maximum: 155 cm
Minimum: 92 cm
Adjustable in 12 steps |
| Attachment system: | Ã 12mm
6x M6 thread |
| Type (general stands): | Other stands |
| Material: | Steel (powder-coated) |
| Color: | Black |
| Transport dimensions: | 97 cm x 14 cm x 14 cm |
| Base area: | Ã 120 cm |
| Mounting size min.: | 67 cm x 57 cm x 92 cm |
| Mounting size max.: | 102 cm x 88 cm x 155 cm |
| Weight: | 9.50 kg |
