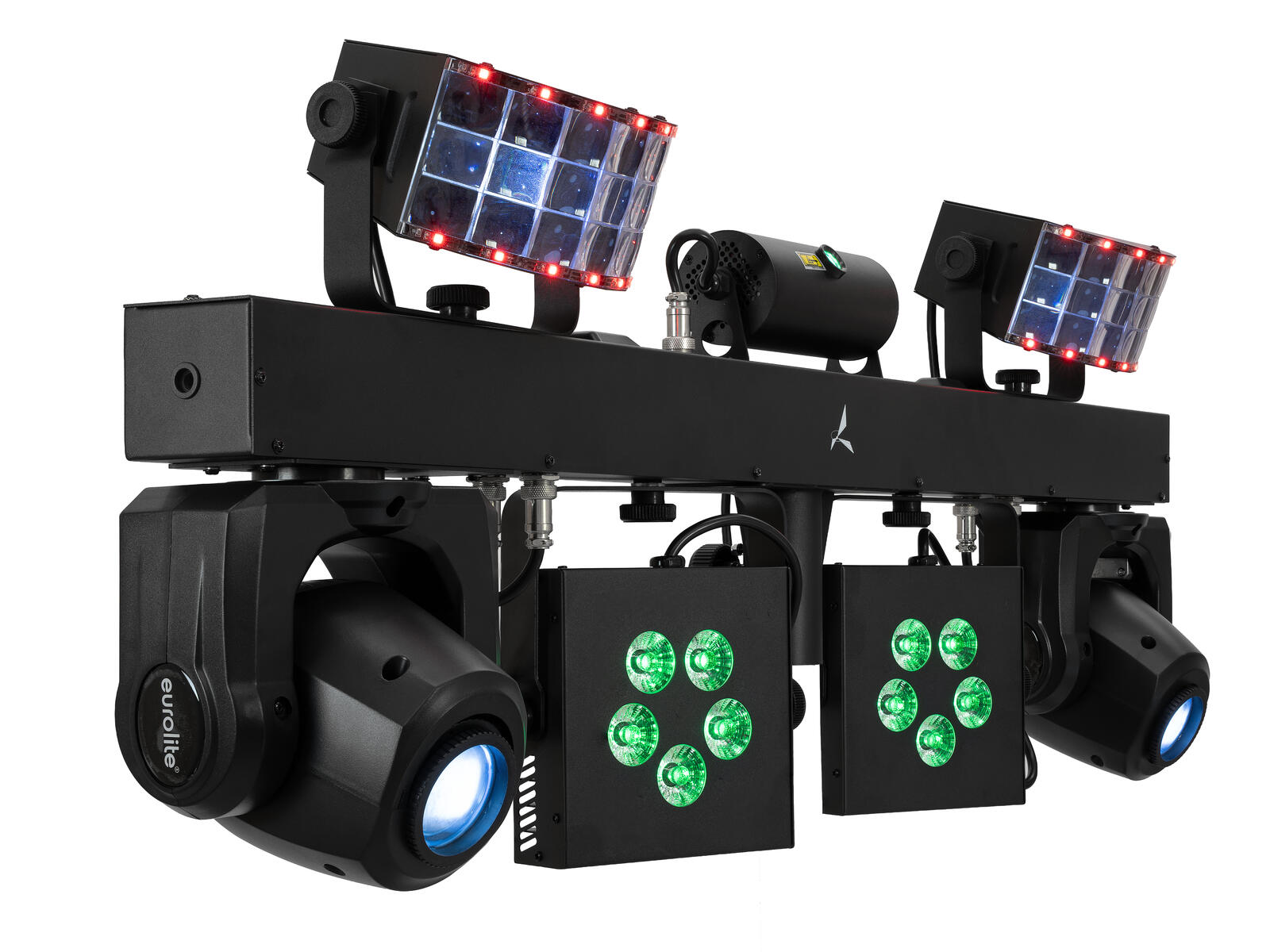

This KLS system provides a complete lighting solution for any party. It features two spots with a total of ten 10 W LEDs with RGBW color mixing for wide-area illumination. The system is complemented by two derby effects, whose beams shine in red, green, blue, and white. Each unit also includes two rows of eight RGB LEDs, capable of creating color moods, chases, and strobe effects.At the center, there is a star laser that projects a large number of rotating red and green points. It complies with laser class 2M, meaning no laser safety officer or emergency stop is required in Germany (regulations may differ in other countries).Additionally, two moving spotlights are mounted underneath the bar. Each is equipped with a 21 W cold white LED and can pan 540° and tilt 180°. They offer seven gobos and seven colors plus white for a wide range of effects.As part of the Eurolite Air series, the KLS Move FX AIR includes an integrated wireless system. This allows system-wide control via a wireless remote, wireless master-slave operation, and the use of an optional wireless foot switch. Alternatively, the system can be controlled via DMX and offers four different DMX modes depending on the level of control required.The bar is delivered in a practical carrying bag and can be used flexibly on a stand or suspended from a truss.
Compact bar with spots, derbies, laser, twinkle LEDs, 2 moving heads, AirW wireless system (2.4 GHz), RF remote control and bag
Crossbar with integrated DMX control unit and stand sleeve
The article is delivered with practical transport bag
Integrated AirW radio transceiver for wireless master/slave operation
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
AirW: operating range up to 70m
117 integrated show programs
With mounting bracket
Application possibility: Suspended; on stand
Mains input and output for power linking up to 8 units
Can be operated in 3; 26; 46; 45 CH mode
Control via stand-alone; sound to light via microphone; master/slave function; DMX; AirW; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional)
For application areas such as: Party room; mobile djs / entertainer; restaurants, bars and hotels
laser
Laser class 2M does not require additional protective measures or appointment of a laser safety officer
The device is cooled by cooling fan at the head
spotlight
10 LEDs 15 W SMD 6065 4in1 RGBW (homogenous color mix) 2 spots controlled separately
2 LEDs 40 W COB (chip-on-board) cold white (CW) 2 moving lights effects controlled separately
Exact positioning (16 bit resolution)
Focus manual; gobo wheel with static gobos; color wheel
Color wheel with 7 dichroic filters plus open rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open shake effect
The device is cooled by temperature-controlled fan at the head
remote control
Wireless remote control: operating range up to 30m with line-of-sight
twinkle effect
28 LEDs 0.2 W SMD 3838 3in1 RGB
Scope of delivery
1 x device
1 x user manual
1 x power cord
1 x declaration of conformity
2 x mounting bracket
1 x remote control
1 x bag
2 x knurled screw
2 x washer
1 x battery
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
190 W
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (grey), mounting version Bypass
Fuse:
5 x 20 mm, T 3.15 A fuse replaceable
Lamp type:
LED lamp
Flash rate:
1 - 30 Hz
DMX channels:
3; 26; 46; 45
DMX input:
3-pin XLR (F) mounting version
DMX output:
3-pin XLR (F) mounting version
Control:
Stand-alone; sound to light via microphone; master/slave function; DMX; AirW; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional)
Fixtures available for:
Light´J
Projection:
Flicker-free
Range:
AirW: range up to 70m
Carrier frequency:
2.4 GHz
DMX fail mode:
Hold; blackout; auto; full on
Attachment system:
Tube: 1x à 35mm 2x M8 thread 2x mounting bracket
Display type:
1 x multicolor OLED display
Status LED:
DMX
USB port:
Type A
Dimensions:
Length: 103 cm Width: 13.3 cm Height: 45.2 cm
Weight:
15.70 kg
Noise classification:
Class 2 (slight noise)
Photobiological safety:
Risk Group
Device
Housing color:
Black matte
Power cord
Cable construction:
3 x 1.0 mm² H05VV-F
Cable length:
Approx. 3 m
Remote control
Battery:
1 x 12 V 23AE alkaline manganese
Range:
Wireless remote control: range up to 30m with line-of-sight
Carrier frequency:
433.92 MHz
Bar
Diameter mounting holes:
2 x Ã10mm
Material:
Metal, painted
Light effect
LED type:
8 x 2.2 W SMD 5054 R/G/B/W
Spotlight
LED type:
10 x 15 W SMD 6065 4in1 RGBW (homogenous color mix)
