Cameo ROOT® BAR BATTERY


12 x 4 W RGBW-LED Battery Bar

  • compact LED bar available in three versions
  • flexible positioning at various angles, with or without feet
  • magnetic Quick Alignment System for precise alignment of multiple units
  • includes frost filter, neon tube filter, and glare shield for versatile lighting effects
  • control via DMX, or W-DMX (with optional Cameo iDMX Stick)
Cameo
44305
Currently unavailable. Request details
Central warehouse: 0
Add to cart
2294 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

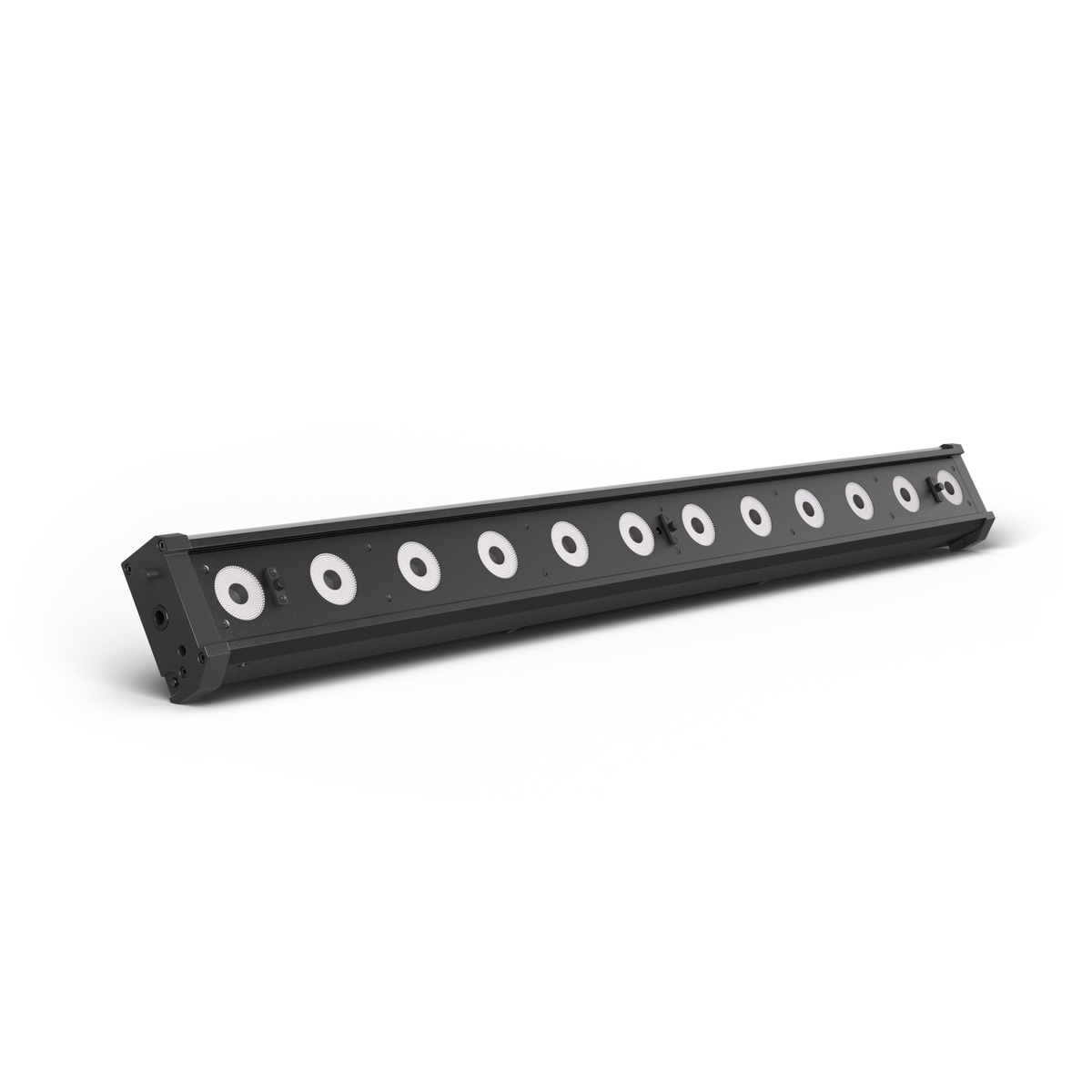

The Cameo ROOT® BAR is a linear LED bar available in three versions. Its compact design and impressive versatility make it ideal for creative lighting in trendy clubs, small bars, or exclusive events, providing stunning lighting effects in any setting.

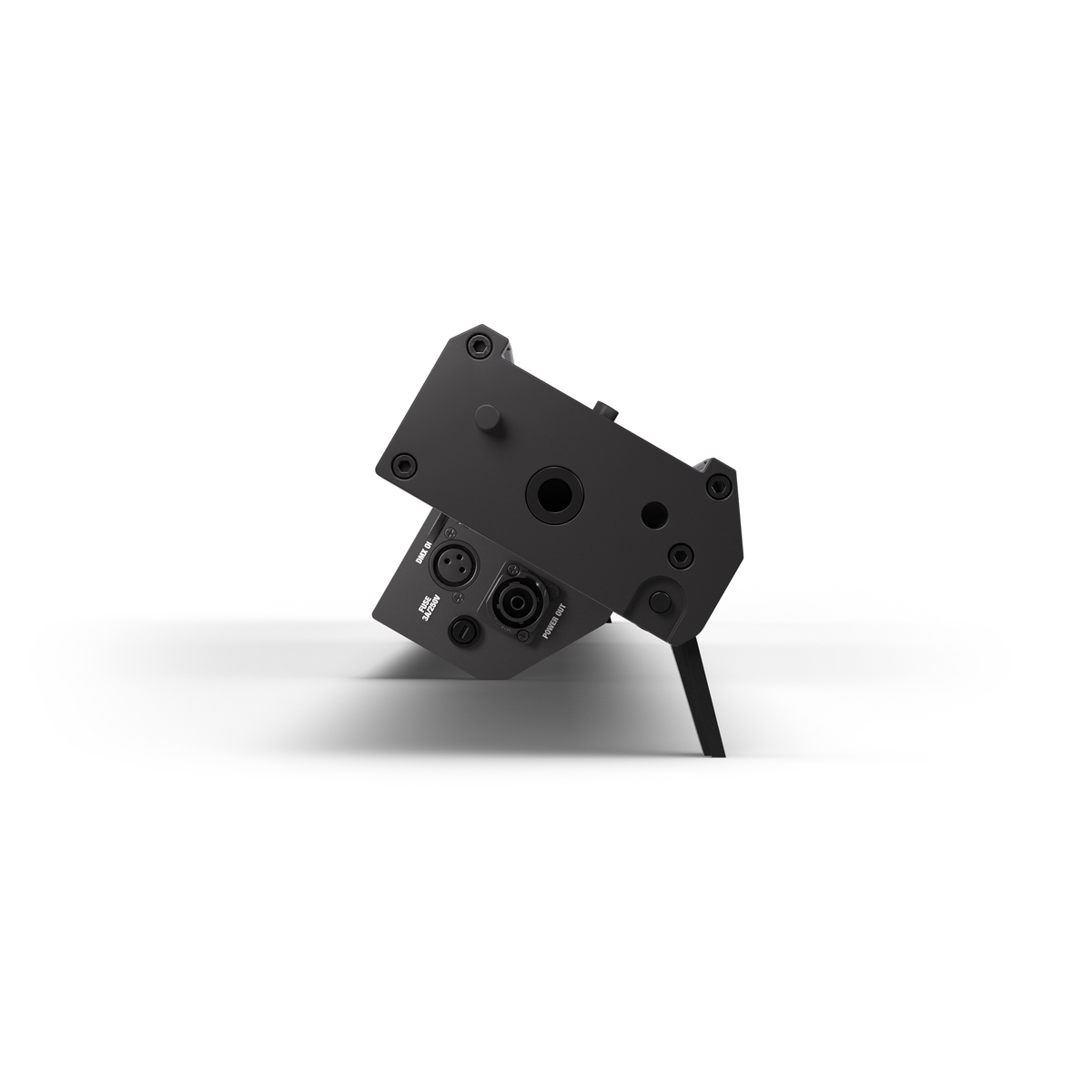

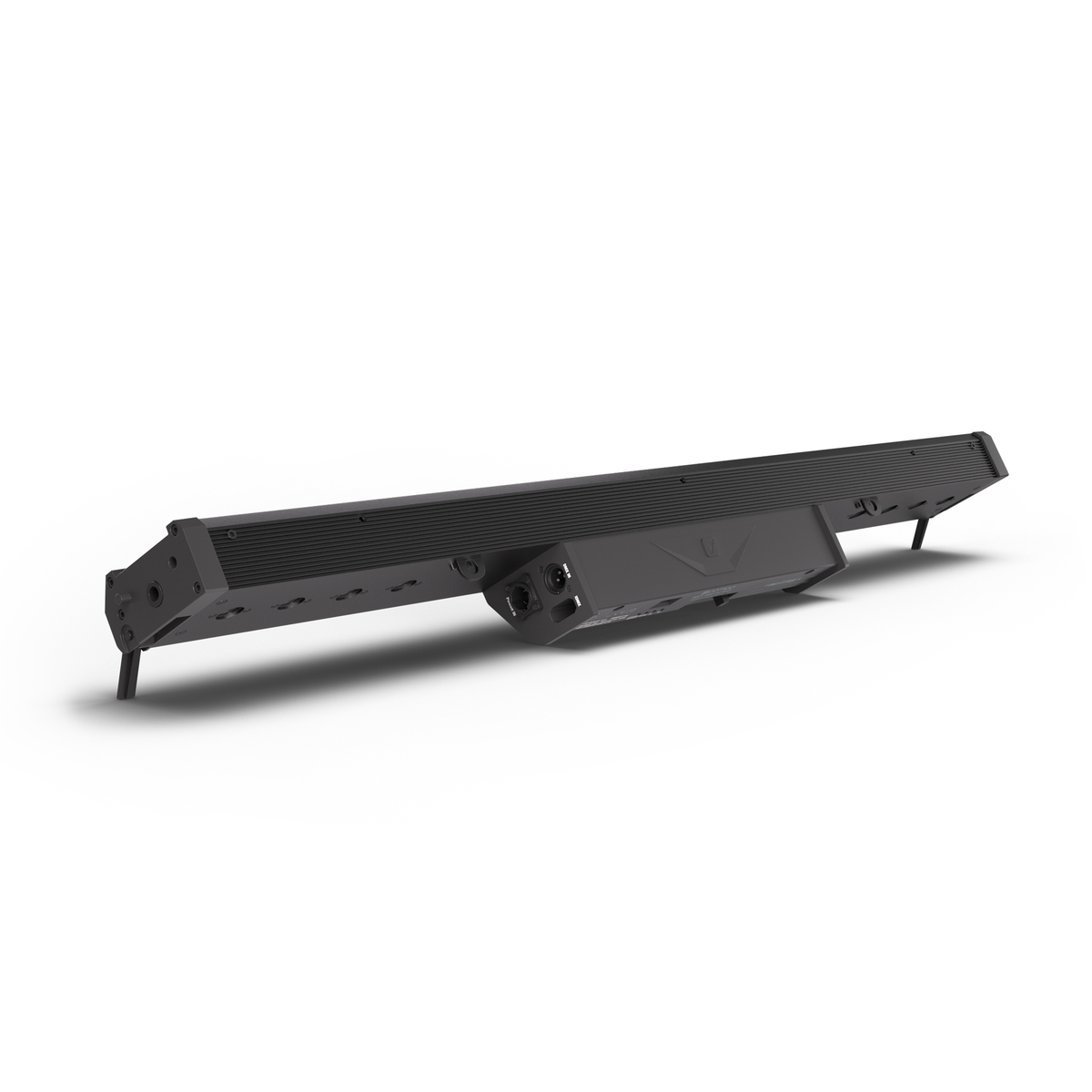

The intelligent design allows for flexible positioning at various angles without the included feet. The practical threaded mount supports both hanging and standing use, making it adaptable to different environments.

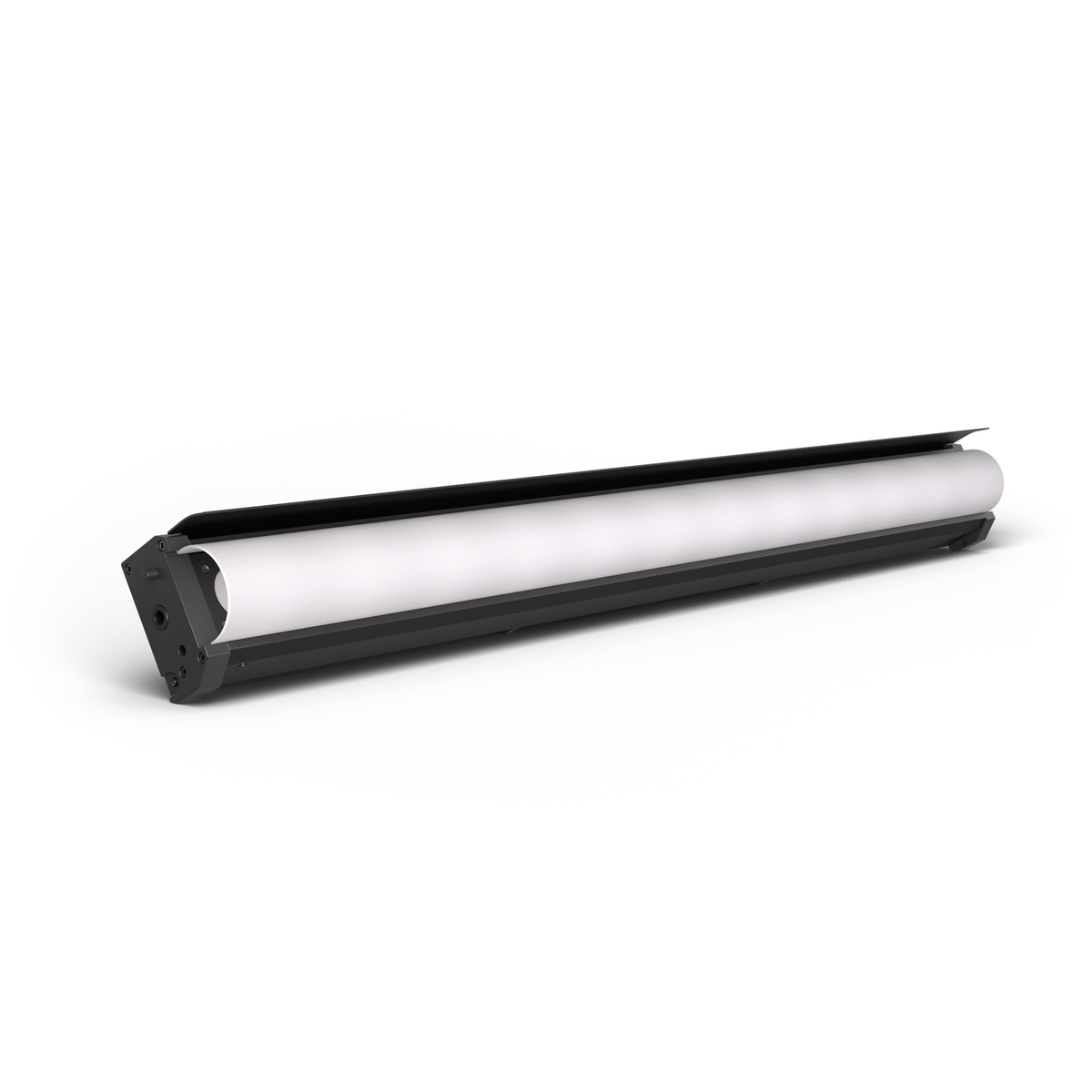

The magnetic Quick Alignment System, combined with various Quick Lock options, enables quick and precise alignment of multiple LED bars, creating seamless transitions and spectacular lighting installations. The included frost filters, neon tube filter, and glare shield provide numerous creative possibilities, adding impressive visual accents.

In addition to DMX protocol control, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Additionally, the unique patented EZchase® DMX delay function allows for the creation of captivating chase patterns and colour transitions with minimal programming effort.

The Cameo ROOT® BAR stands for high quality, reliability, and modern design. It sets new standards in event lighting and transforms any venue into an unforgettable experience.

Specifications:

Illuminant type: RGBW LED
Illuminant power: 48 W
LED data: 12 x 4 W RGBW LED
Luminous flux: 2,300 lm
Beam/Field angle: Beam: 20° / Field: 37°
LED PWM frequency: 650 Hz, 1,530 Hz, 2,000 Hz, 4,000 Hz
Dimmer resolution: 16 Bit
Colour mix functions: RGB
LED colours: Red, Green, Blue, White
Strobe: 0 - 20 Hz
Controller protocols: DMX512
Additional DMX features: DMX delay, LED segment dimmer, System settings
Stand alone operating modes: Autorun, Master/slave, Static

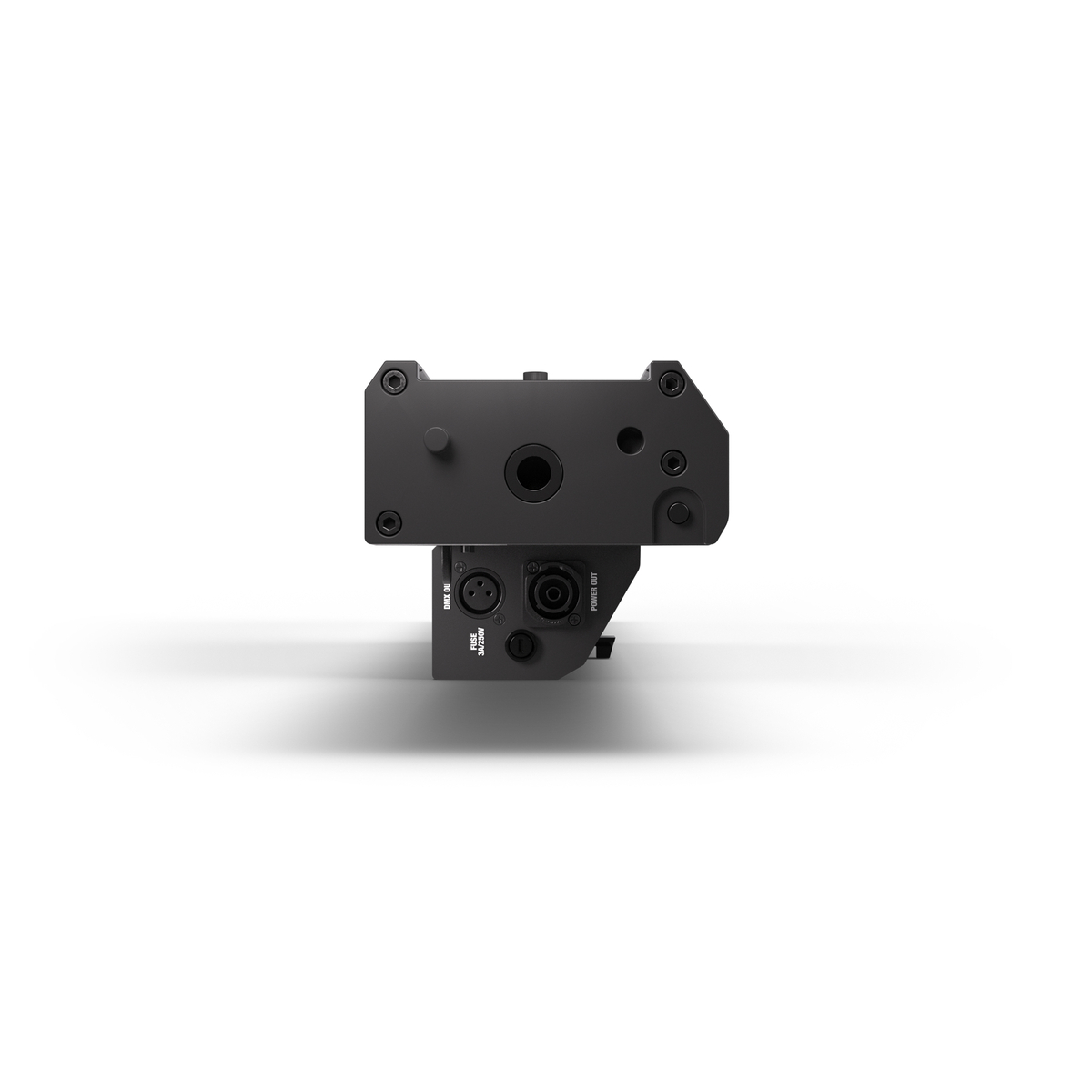

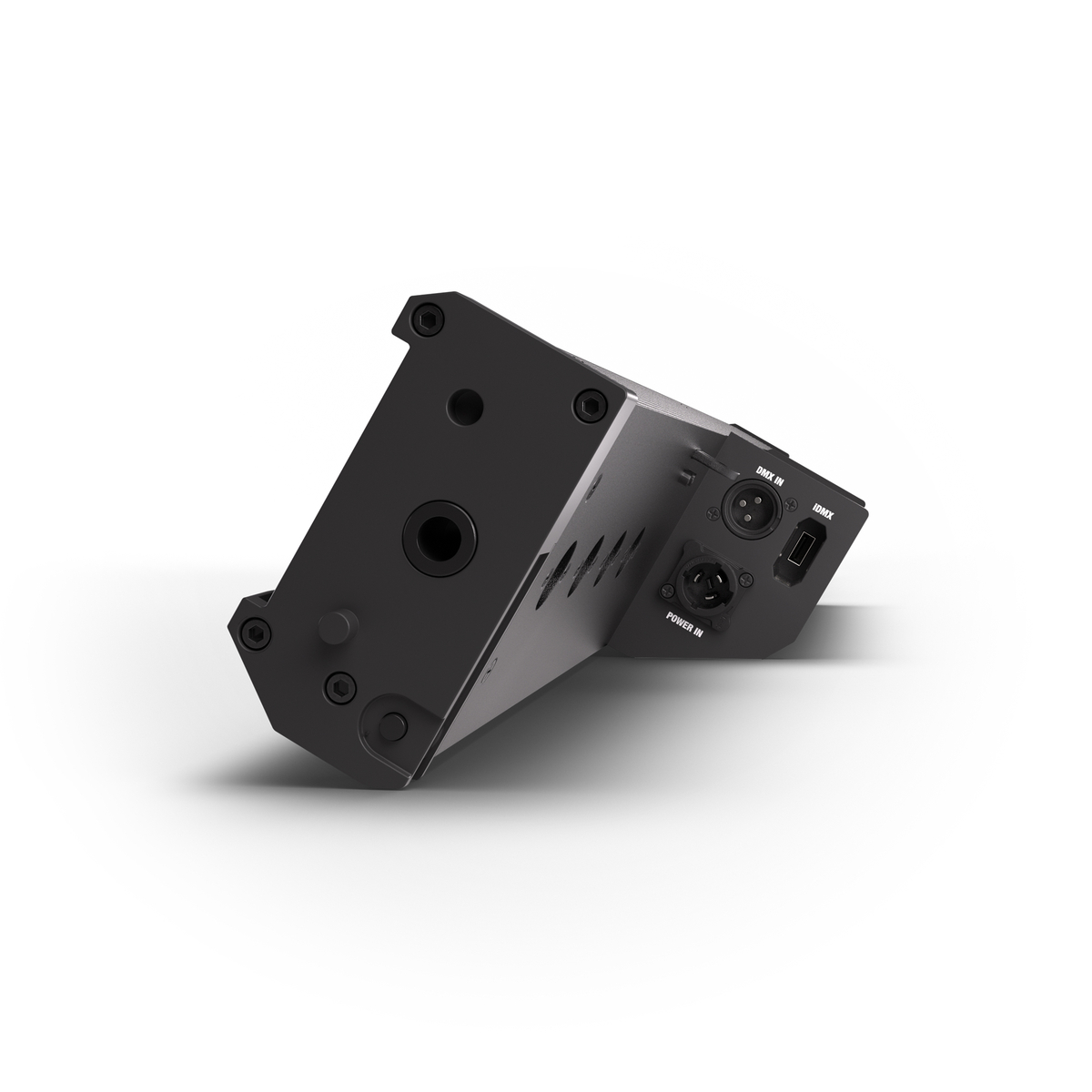

Data in connector: XLR 3-pole male

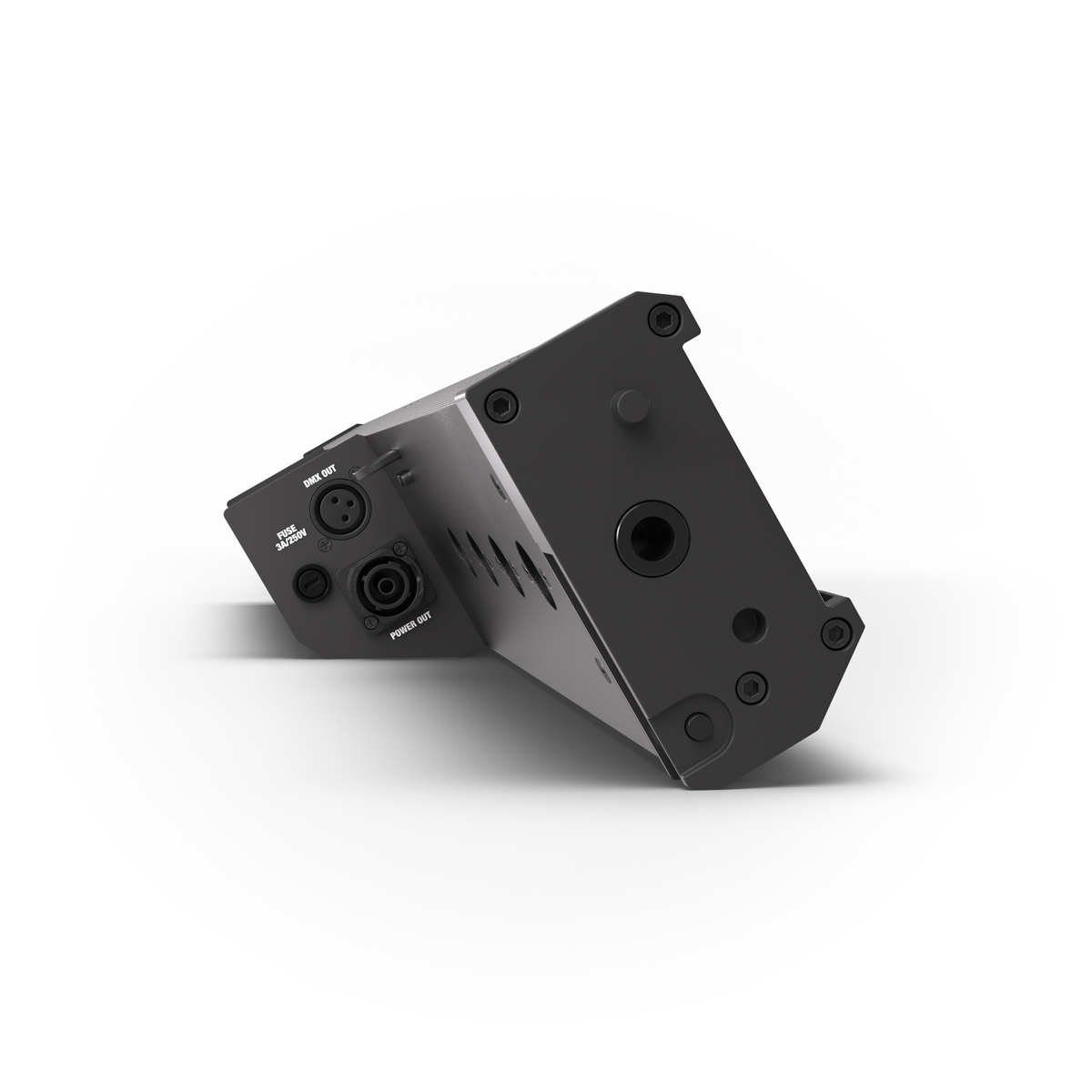

Data out connector: XLR 3-pole female
Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Rated power: 62 W
Mains connector: Mains plug device outdoor male & TRUE1®
Power out connector: Mains plug device outdoor female & TRUE1®
Cell technology: Lithium-ion
Battery capacity: 6.4 Ah
Battery life: 3 h (FULL) - 5.5 h (ECO)
Cabinet material: Aluminium, Plastic
Colour: Black
Cooling system: Convection cooling
Protection class: IP20
Noise level in operation: 0 dB
Ambient temperature: 0 - 40 °C
Width: 1,042 mm
Height: 116 mm
Depth: 106 mm
Weight: 5 kg
Included Accessories: Mains cable, Filter, Mounting bracket

Product code: CLROOTBARBAT

Unit of sale: piece

Specifications:
Power per LED: 4 W
Number of LEDs: 12
