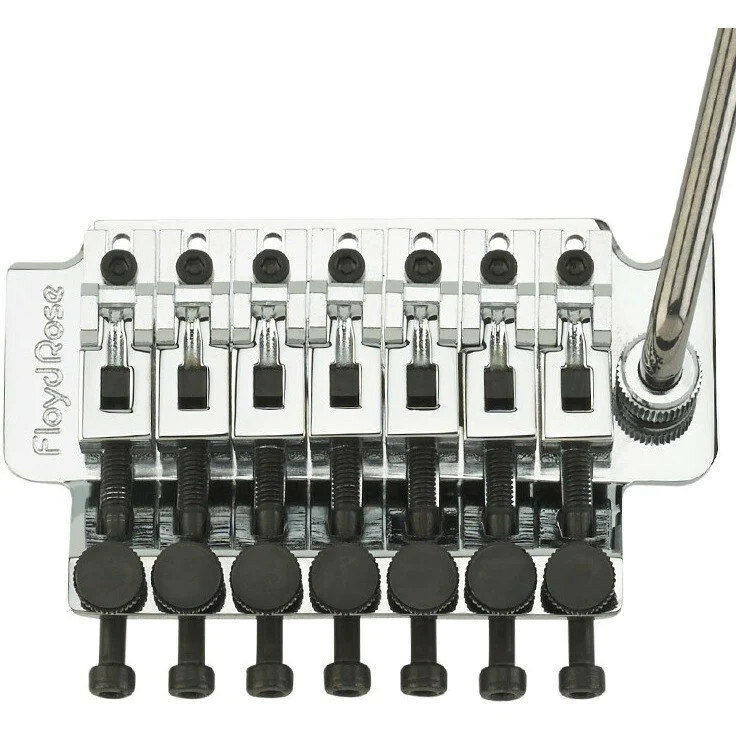

Floyd Rose FRTS100 - Original Tremolo System, 7-String - Chrome

Floyd Rose System

original Floyd Rose vibrato system for electric guitar.
features double locking and bidirectional design.
suitable for 7-string guitars with 10.75 mm string spacing.
includes all necessary hardware for installation.
made from high-quality steel with a chrome finish.

755⁶³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

3922 points of loyalty

Shipping free

Returns 14 days

request details

Floyd Rose FRTS100 - Original Tremolo System, 7-String - Chrome Add to cart: 755⁶³ €

Original Floyd Rose vibrato system for electric guitar:

- Double locking design
- Bidirectional design
- 7 strings
- String spacing 10.75 mm
- Distance from B string to e string 64.5 mm
- Radius of the bridge 20" (508 mm)
- Radius of the locking nut 15" (381 mm)
- Height of the bridge and adjustable string intonation
- Locking nuts with fine adjustment screws for each string
- 2-point mounting - requires special routing of the body
- Made from high-quality steel

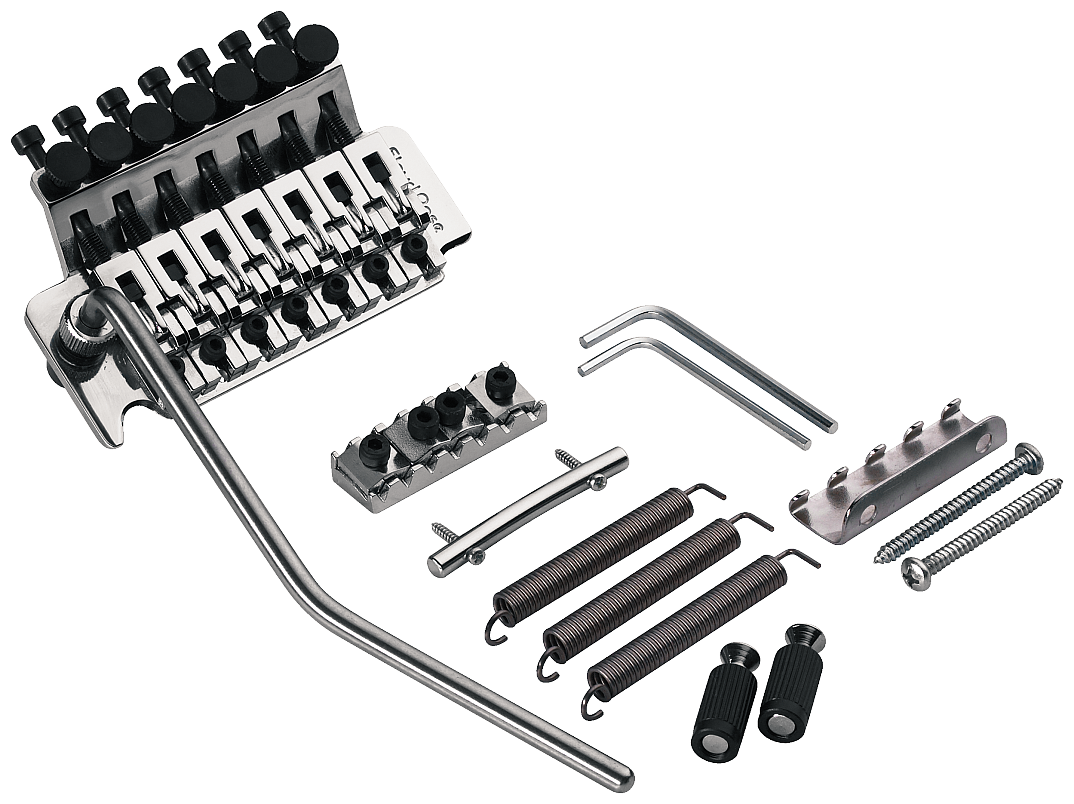

- Includes 37 mm nickel-plated tremolo block, vibrato arm, locking nut, springs, claw, mounting studs, hex key, and mounting hardware
- Chrome

Downloadable files:

Schematic Drawing 7_String_Dimensions.pdf

Routing Diagram FR_7-STG_Routing_mm.pdf

Product code: FL FRT-S100 C

Unit of sale: piece
