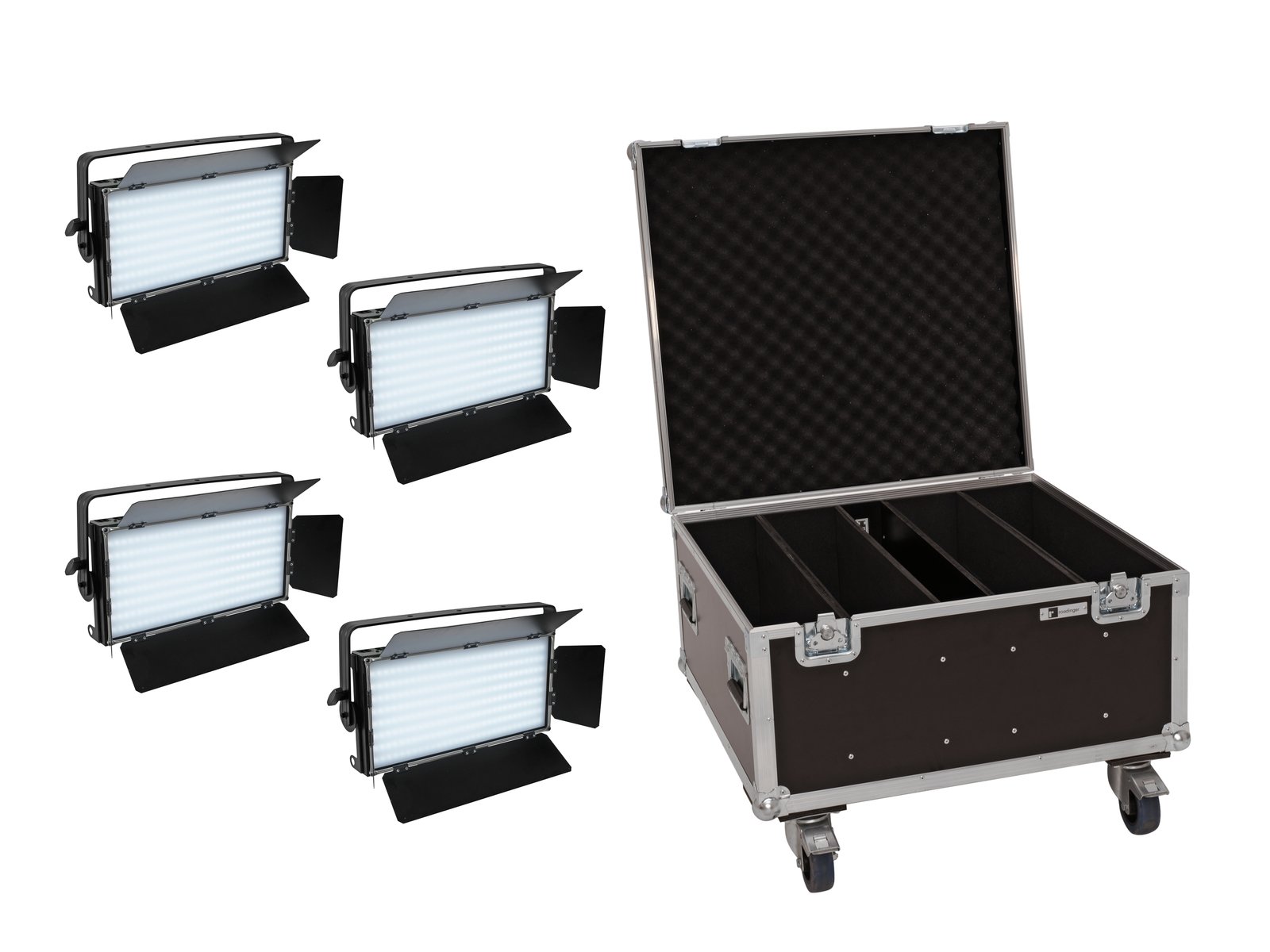

EUROLITE LED PLL-480 QCL Panel
Surface light controlled via DMX with 480 RGBW 4-in-1 LEDs
- 480 powerful SMD 5050 4in1 QCL RGBW LEDs (homogeneous colour mixing)
- The frost filter provides a soft, even light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Silent operation
- Stepless colour mixing; adjustable colour change; adjustable fade; electronic dimmer; variable pulse width modulation
- Strobe effect
- Can be operated in 6; 4 CH mode
- The device is cooled by passive convection cooling
- DMX control; standalone; master/slave function
- Flicker-free
- With a beam angle of 120°
- With mounting bracket
- LCD display
- Thin and robust metal housing
- Support or truss installation
- For applications such as: Video and Photography; Stage
- Preprogrammed in Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Robust transport handle
- Network input and output for connecting power up to 8 units
Package contents
- 1 x reflector, 1 x user manual, 1 x power cable, 1 x plug (male)
ROADINGER Flightcase 4x LED PLL-480
- 7 mm, dark brown, laminated
- Wheels
- Branded hardware
| Weight: | 72.20 kg |
| EUROLITE LED PLL-480 QCL Panel |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 205 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), power cable mounting version with safety plug (supplied) |
| Output power: | P-Con (grey), mounting version |
| Lamp type: | LED lamp |
| LED: | 480 x SMD 5050 4in1 QCL RGBW (homogeneous colour mixing) |
| DMX channels: | 6; 4 |
| DMX input: | Mounting version XLR (M) with 3 pins |
| DMX output: | Mounting version XLR (F) with 3 pins |
| Cooling: | Passive cooling by convection |
| Control: | DMX; standalone; master/slave function |
| Preprogrammed in: | Light'J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Illumination in lux (lx): | Red (R) 1m: 438 lx, 3m: 61 lx, 6m: 18 lx
Green (G) 1m: 633 lx, 3m: 88 lx, 6m: 25 lx
Blue (B) 1m: 209 lx, 3m: 29 lx, 6m: 8 lx
Cool White (CW) 1m: 2130 lx, 3m: 296 lx, 6m: 87 lx
All 1m: 2696 lx, 3m: 380 lx, 6m: 112 lx |
| Lamp lifespan: | 50000 h |
| Luminous flux: | 17103 lm |
| Housing colour: | Black |
| Mounting system: | Mounting bracket |
| Display type: | LCD screen |
| Transport handle: | 1 pcs/piece |
| Dimensions: | Width: 64 cm
Depth: 13 cm
Height: 33.5 cm |
| Weight: | 12.60 kg |
| Noise rating: | Class 0 (no noise) |
| Energy efficiency class (A - G): | F |
| ROADINGER Flightcase 4x LED PLL-480 |
| Maximum capacity: | 100 kg |
| Transport aid: | Wheels |
| Brand usage: | Branded hardware |
| Colour: | Dark brown, laminated |
| Internal dimensions: | 70 cm x 66 cm x 35 cm |
| Accessory compartment: | 8 cm x 66 cm x 35 cm |
| Device compartment: | 14 cm x 65.5 cm x 35 cm |
| Material thickness: | 7 mm |
| Dimensions: | Length: 74 cm
Width: 71 cm
Height: 52.5 cm |
| Weight: | 21.80 kg |
