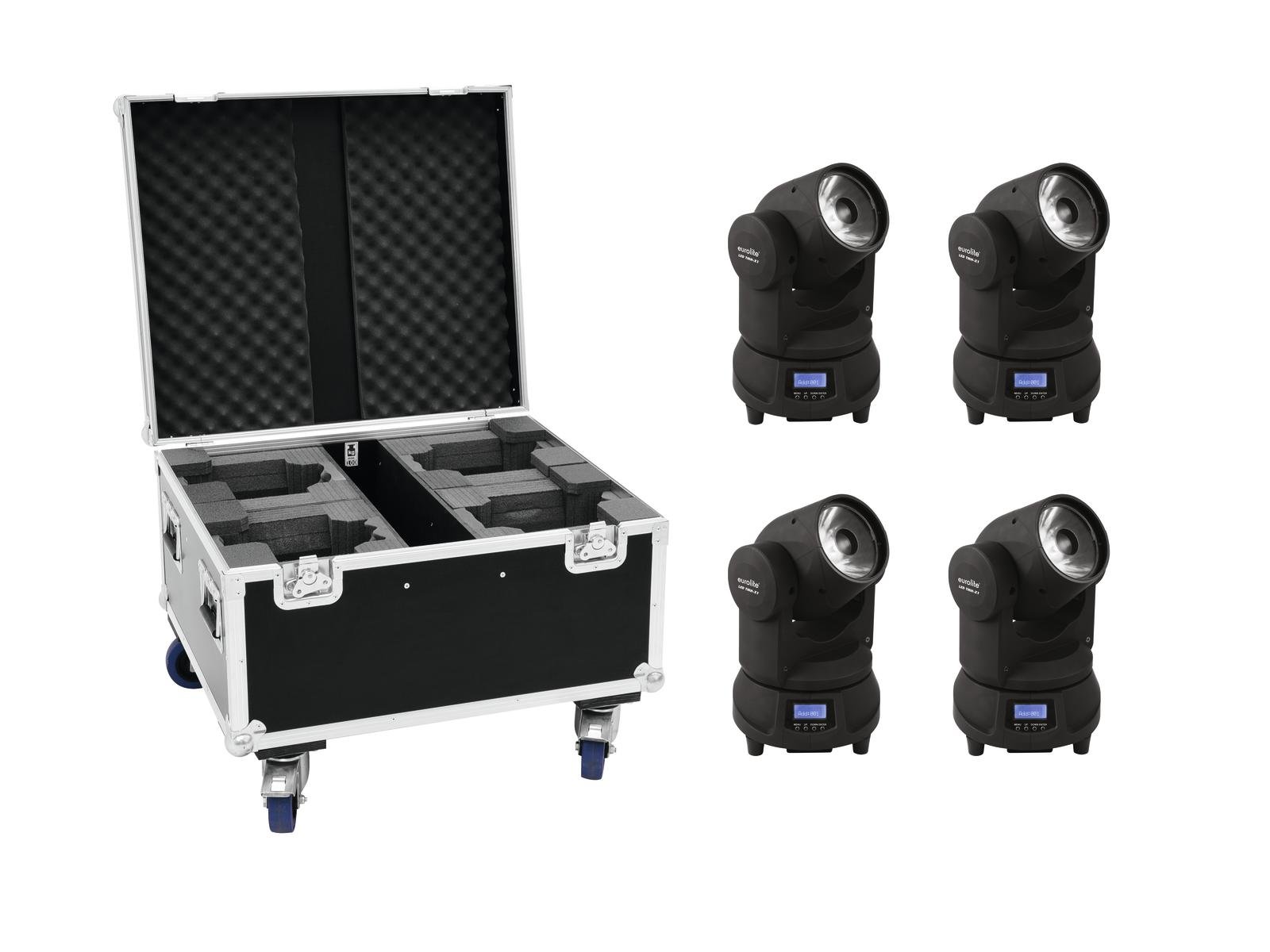

4x 60 W beam, compact, narrow angle, RGBW colours, including PRO case
- Positioning in PAN and TILT
Moving beam EUROLITE LED TMH-X1
60 W beam, compact, narrow angle, beautiful RGBW colours
- Compact and lightweight
- 1 powerful 60 W COB (chip-on-board) 4in1 QCL RGBW LED
- Positioning at 540° PAN and 220° TILT
- Automatic position correction (feedback)
- Exact positioning (16-bit resolution)
- Colour selection; smooth colour mixing; electronic dimmer
- Beam effect; strobe effect
- Integrated show programmes
- Can be operated in 14 CH mode
- The device is cooled by a cooling fan
- DMX control; standalone; integrated microphone
- Flicker-free
- With a beam angle of 3°
- Included OSRAM bulb
- Preprogrammed in Light’J; LED PC-Control 512; Light captain
- Network input and output for connecting power up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cable, 1 x omega bracket, 1 x XLR cable
ROADINGER Flightcase 4x LED TMH-X1 Moving head with wheels
PRO flightcase for 4 x TMH-X1
- With accessory compartment
- With 4 compartments for devices
- High-quality workmanship with 7 mm birch multiplex, dark brown, laminated
- Interior with foam lining
- 25mm aluminium profile frames with rounded edges
- 4 case handles with hinges, chrome-plated
- 1 chrome latch for overturning
- 2 high-quality butterfly latches
- 4 wheels with 2 locking brakes
- 4 stacking tubes integrated into the lid
- Brand hardware
- Made in Europe
- For more information about this product, please consult the technical sheet in “Downloads”
| Weight: | 39.78 kg |
| Moving beam EUROLITE LED TMH-X1 |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP rating: | IP20 |
| Power connection: | Network input via P-Con (blue), power cable mounting version with safety plug (supplied) |
| Output power: | P-Con (grey), mounting version |
| Type of lamp: | LED lamp |
| LED: | 1 x 60 W COB (chip-on-board) 4in1 QCL RGBW |
| Max. TILT movement: | 220° Exact positioning (16-bit resolution) Automatic position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16-bit resolution) Automatic position correction (feedback) |
| Strobe rate: | 0 - 10 Hz |
| DMX channels: | 14 |
| DMX input: | XLR (M) mounting version with 3 pins |
| DMX output: | XLR (F) mounting version with 3 pins |
| Cooling: | Cooling fan |
| Control: | DMX; standalone; Sound to light via microphone |
| Preprogrammed in: | Light’J; LED PC-Control 512; Light captain |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 7° |
| Illuminance in lux (lx): | Red (R) 3m: 3251 lx, 6m: 712 lx
Green (G) 3m: 4684 lx, 6m: 1125 lx
Blue (B) 3m: 819 lx, 6m: 220 lx
Cool white (CW) 3m: 7909 lx, 6m: 1899 lx
All 3m: 15489 lx, 6m: 3655 lx |
| Case colour: | Black |
| Brand usage: | Included OSRAM bulb |
| Dimensions: | Width: 20.7 cm
Depth: 19.6 cm
Height: 31.3 cm |
| Weight: | 4.29 kg |
| Legal specifications |
| special product: | Not designed for lighting a household room |
| Intended use: | Show lighting with effect |
| ROADINGER Flightcase 4x LED TMH-X1 Moving head with wheels |
| Maximum capacity: | 100 kg |
| Aluminium profile frames: | 25 mm |
| Case handles: | 4 pcs/piece |
| Stop hinge: | 1 pcs/piece |
| Lock: | Butterfly lock: 2 pcs/piece |
| Transport aid: | 4 x wheels with 2 locking brakes
4 x stacking tubes integrated into the lid |
| Brand usage: | Brand hardware |
| Material: | Birch multiplex, 7 mm |
| Colour: | Dark brown, laminated |
| Accessory compartment: | 10.5 cm x 60 cm x 27 cm |
| Compartment dimensions: | 27 cm x 14 cm x 27 cm |
| Internal dimensions: | 64.5 cm x 26 cm |
| Dimensions: | Width: 71 cm
Depth: 61 cm
Height: 53 cm |
| Weight: | 21.90 kg |
