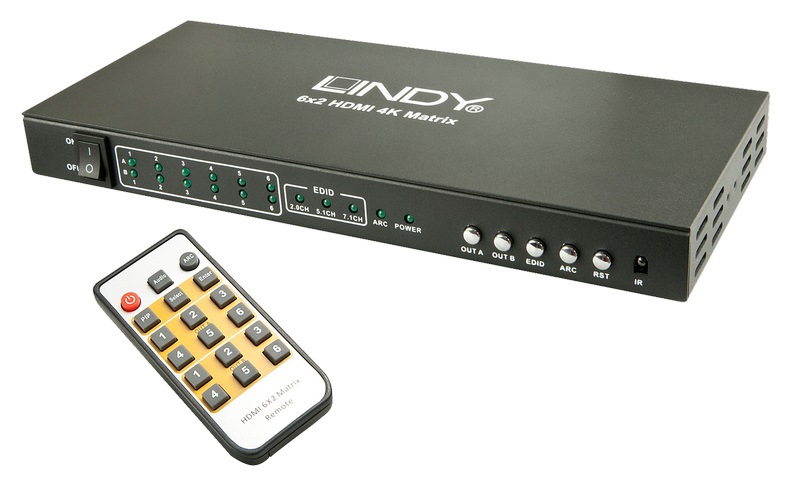

Lindy HDMI 2.0 4K UHD - HDMI 4K 2.0 UHD matrix/switch, capable of displaying resolutions up to 3840x2160, four times greater than HD 1080p 30Hz resolution. It is also compatible with older HDMI versions supporting resolutions 1080p/1080i/720p/720i, as well as 1080p 3D.
It is ideal for use with sources such as SKY HD Boxes, PlayStation 3 and 4, Xbox360, Xbox One, Blu-Ray players, and many more. The outputs are compatible with LED, LCD, Plasma HDTVs, as well as projectors and monitors.
- Supports resolutions up to 4K2K@60Hz, including 1080p 3D
- Supports 7.1 channel of LPCM digital audio signals, Dolby TrueHD, and DTS-HD Master Audio
- Compliant with HDCP 2.2
- Supports cable distances of up to 20 m (10 m in, 10 m out)
Technical Specifications:
- Inputs: 2 x HDMI Type A, male, 19-pin
- Outputs: 6 x HDMI Type A, male, 19-pin
- Power: Multi-country PSU
Housing:
- Material: metal
- LED Indicators: operation, active HDMI port, active EDID channel, ARC
- Colour: black
- Power Supply: 5V DC 2000mA
- Dimensions: 260x120x30 mm
- Weight: 720 g
- Supported bandwidth width: 340MHz/ 10.2 Gbps
- Maximum resolution: 4096 x 2160p 60Hz, including 1080p 3D
- Maximum colour depth: 36 bit (12 bits/channel)
- Supported audio: 7.1 LPCM, Dolby TrueHD, and DTS-HD Master Audio
- Supports Picture in Picture
- Audio Return Channel (ARC): on input 1
- Infrared support: Yes
- Remote control: Yes
- Chipset: Silicon Image
- Included PSU: Yes
- Power consumption: 10 W
- Operating temperature: 0°C – 40°C
- HDMI: v2.0
- HDCP: V2.2
- CE
- FCC
- RoHS 2.2.
- Signal type: HDMI
- Remote control: YES
- Number of inputs: 6
- Number of outputs: 2
- Maximum length: 20 m
- Maximum resolution: 4K
- HDCP support: YES
