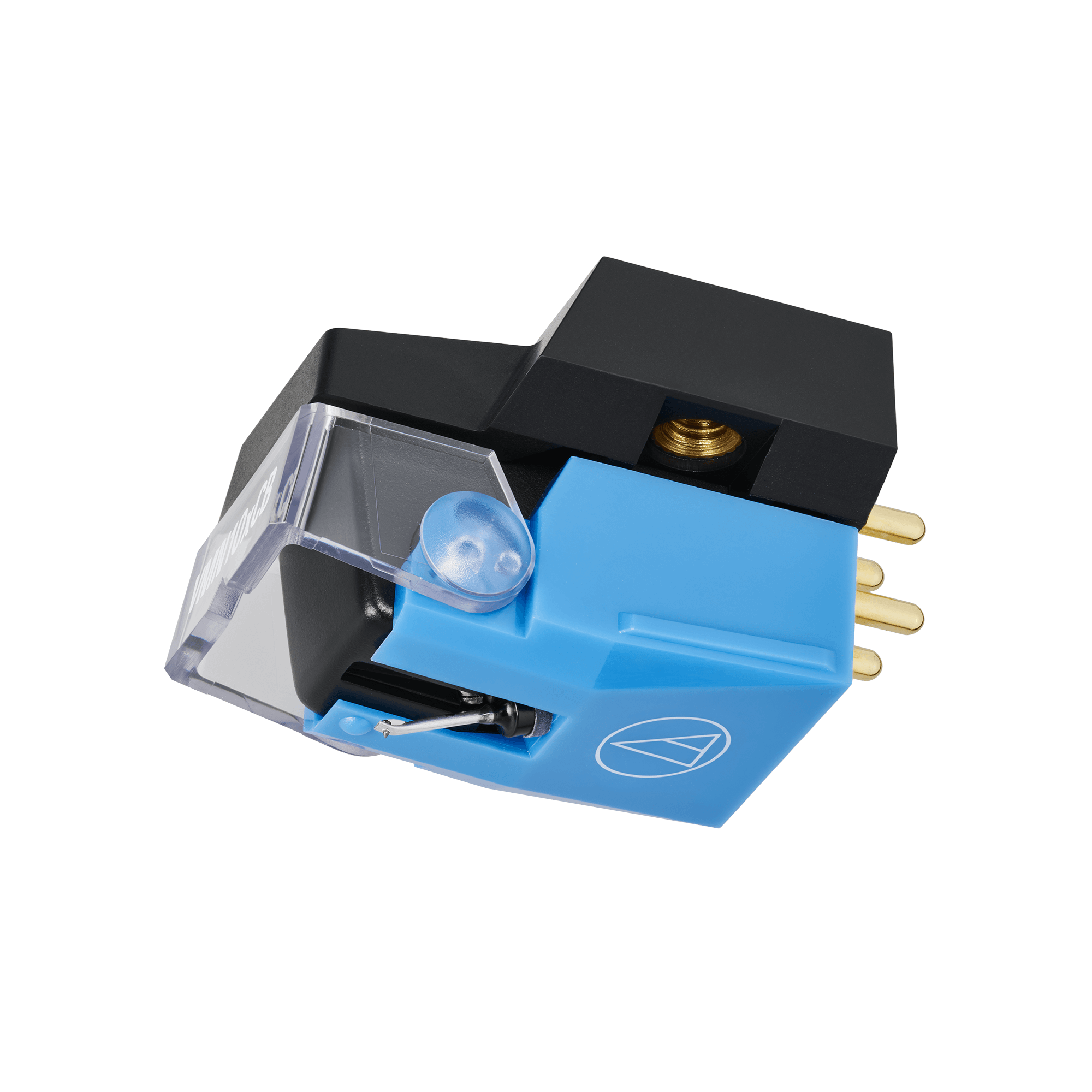

Audio-Technica AT-VM510xCB

Audio-Technica AT-VM510xCB - A cartridge ideal for vinyl enthusiasts seeking detailed, balanced, and realistic playback. The design with two stacked coils for each channel enhances stereo separation and reduces crosstalk for a clear sound image.

The 0.6 mil conical stylus precisely follows the groove of the vinyl, ensuring durability and consistent performance. Additionally, installation is facilitated by threaded inserts, and the stylus protector features a V-guidance for easy positioning.

Main Features:

• Cartridge for DJ turntable
• Type: Dual Moving Magnet (MM)
• 0.6 mil conical stylus – offers precise tracking and high durability
• Tubular aluminium cantilever
• Output voltage: 5.0 mV
• Channel separation: 24 dB at 1 kHz
• Frequency response: 20 – 20,000 Hz
• Recommended tracking force: 2.0 g
• Easy mounting – threaded inserts + stylus protector with V-guidance
• Replacement stylus: AT-VMN10xCB (sold separately)

Technical Specifications:

• Coil impedance: 3.2 kΩ
• Coil inductance: 480 mH
• DC resistance: 750 Ω
• Recommended load impedance: 47 kΩ
• Recommended load capacitance: 150 – 250 pF
• Tracking angle: 20°
• Dimensions: 28 × 18.3 × 17.6 mm
