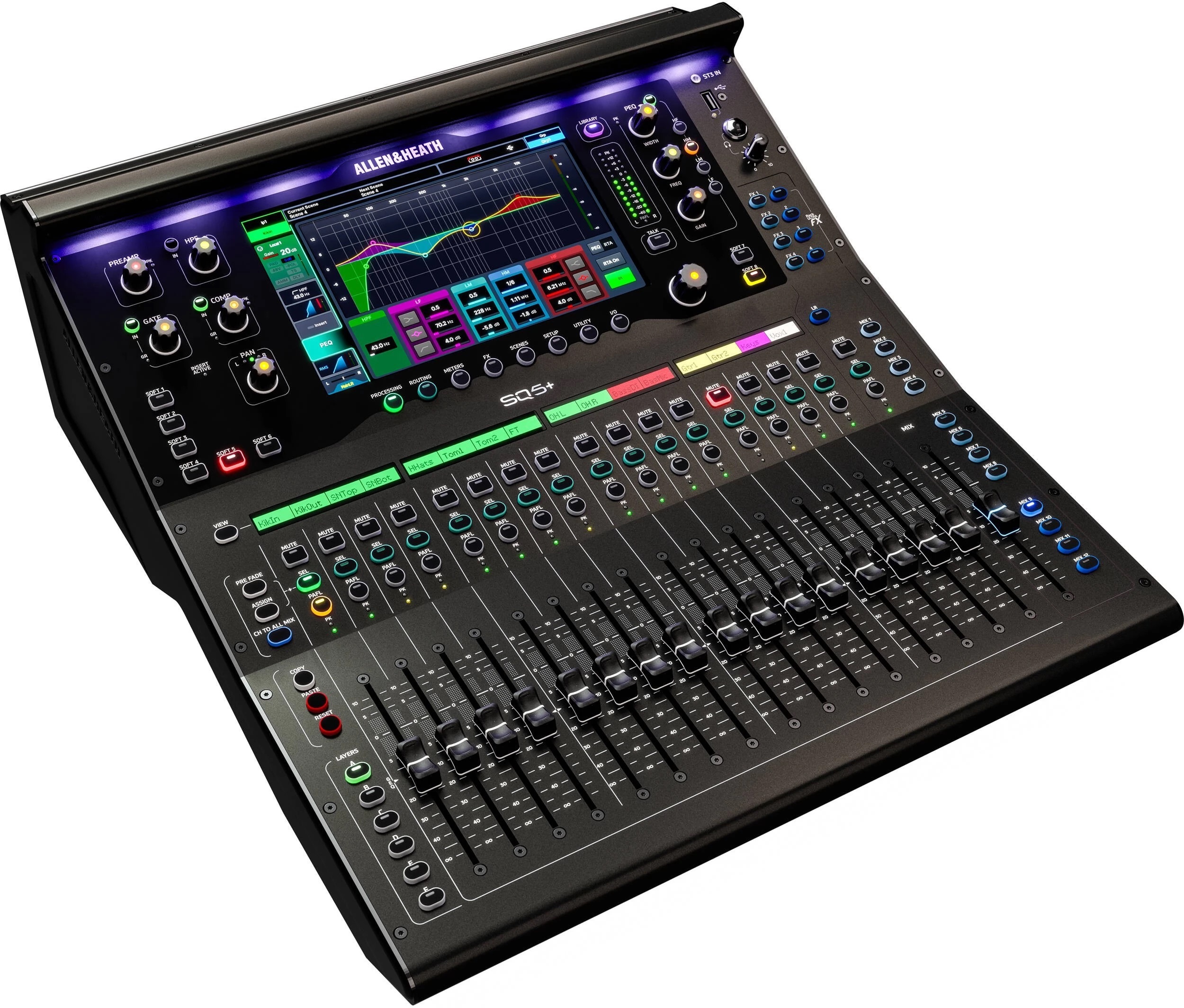

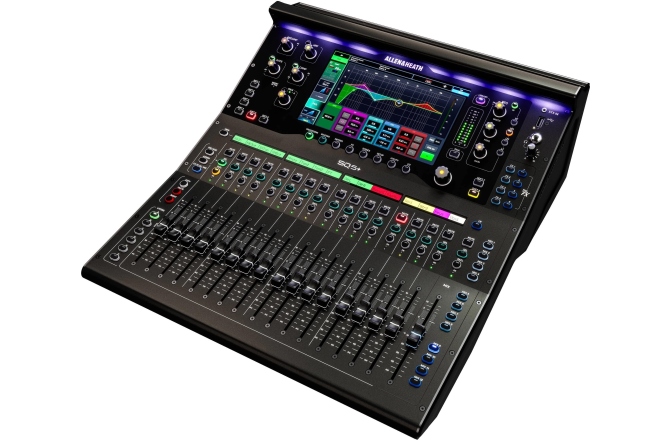

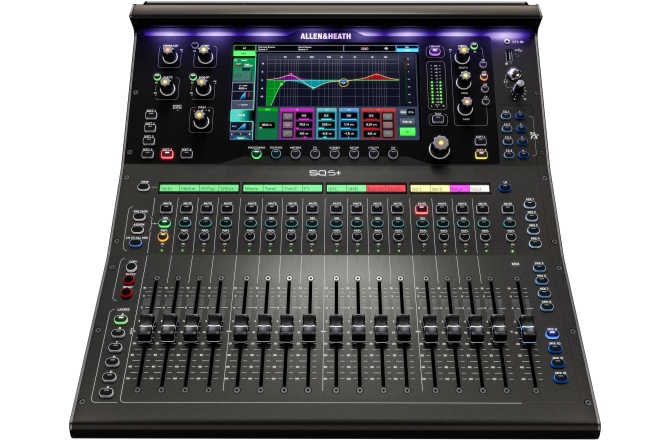

Allen & Heath SQ-5+ - digital mixer with 48 input channels, based on XCVI FPGA processing at 96 kHz and a latency of 0.7 ms. It features 17 motorised faders, a 9-inch touchscreen, and analogue, digital, and USB connectivity for audio recording and playback. It supports optional DEEP processing, integrated effects, and expansion via the SLink system and I/O cards.
- Digital mixer with 48 input channels
- Input channels: 48
- Processing: XCVI FPGA, 96 kHz
- Latency: 0.7 ms
- Mix buses: 44
- Groups: 8 DCA / Mute groups
- Faders: 17 motorised, 100 mm, with 6 layers
- Display: 9-inch touchscreen
- Level indicators: 12-segment LED and colour display
- Control: illuminated buttons and encoders, LCD displays for channels, 8 assignable SoftKeys
- Additional processing: optional DEEP Processing, integrated in channel without increasing latency

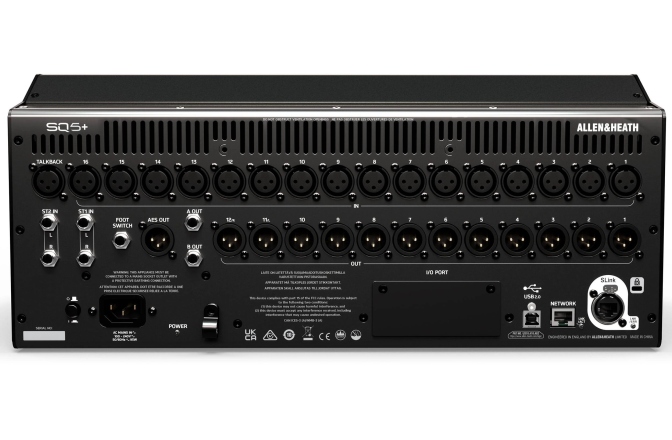

- XLR mic/line inputs: 16
- Stereo line inputs: 2 × 6.3 mm TRS jacks and 1 × 3.5 mm TRS jack
- Talkback input: 1 × XLR
- Analogue XLR outputs: 12 × line
- Analogue TRS outputs: 2 × line
- Digital output: 1 × AES3 stereo XLR
- Headphone output: 1 × 6.5 mm TRS jack
- Connectivity for extensions: SLink, 128 × 128 channels
- I/O card port: 64 × 64 channels; up to 128 × 128 with an SLink card
- USB-B audio interface: 32 × 32 channels, 48/96 kHz, 16/24 bits
- USB recording/playback: SQ-Drive via USB-A, stereo or multichannel
- SQ-Drive formats: stereo at 48/96 kHz, 24 bits; 16 channels at 96 kHz, 24 bits; 32 channels at 48 kHz, 24 bits
- Dimensions (L × W × H): 440 × 514.9 × 198 mm
- Weight: 11.2 kg
