LD Systems HPA 2

2-Channel headphone amplifier

two channel headphone amplifier
two line inputs with independent gain controls
two line level outputs
2 x mini jack (front) and 2 x jack (rear) headphone connections

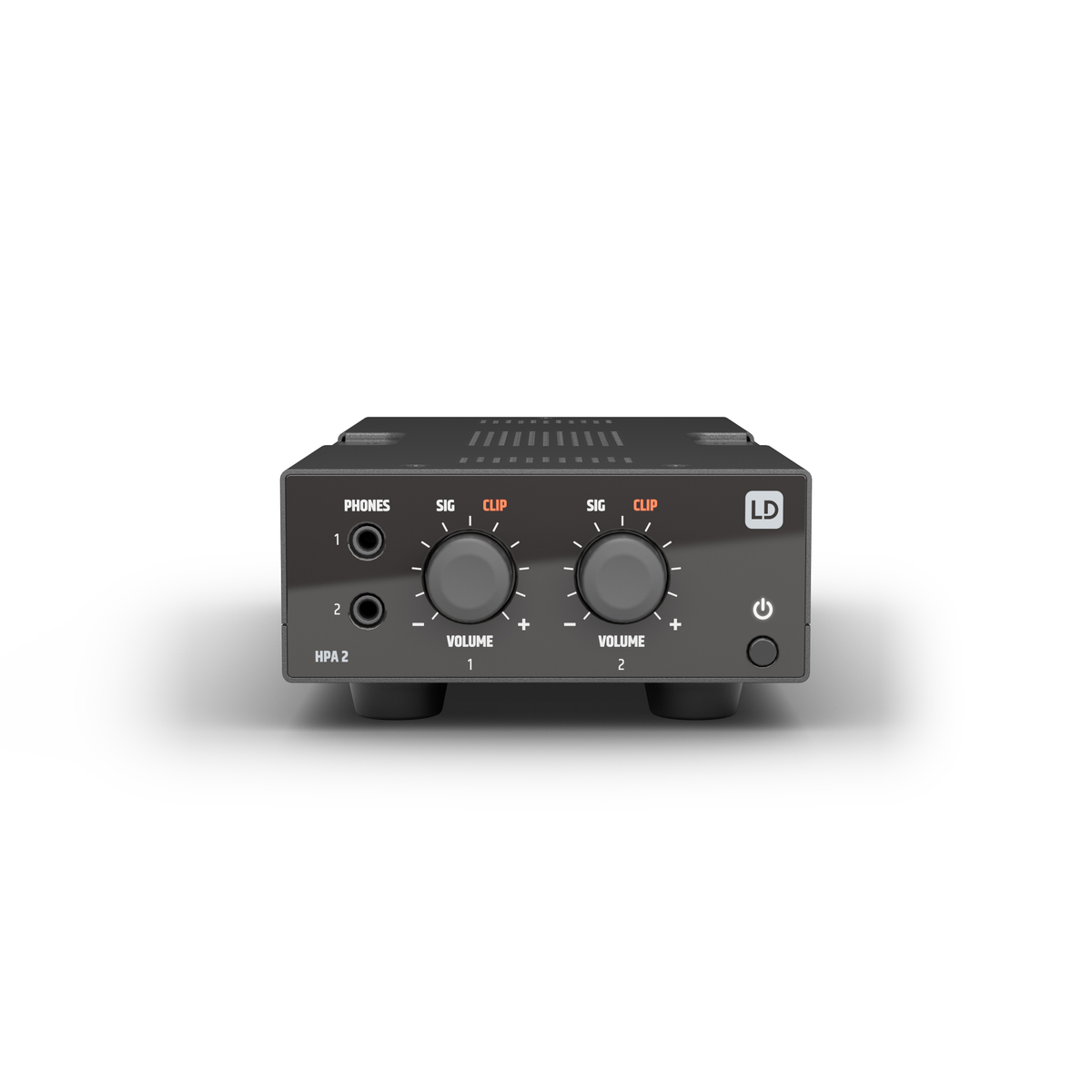

signal and clip lights on each channel

293²² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1519 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

LD Systems HPA 2 Add to cart: 293²² €

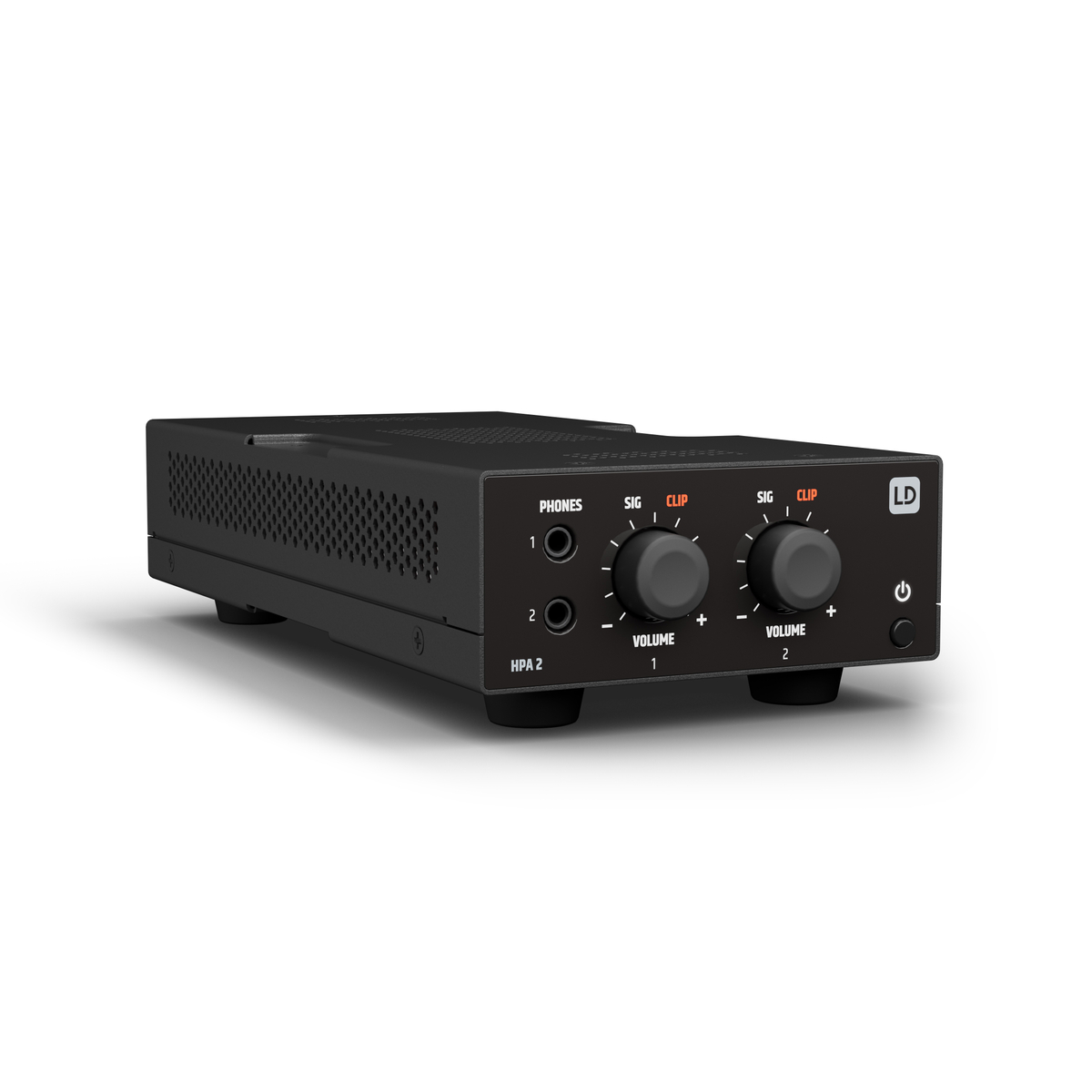

Part of the TICA®series, the HPA 02 is a two-channel headphone amplifier designed to make monitoring flexible and easy.

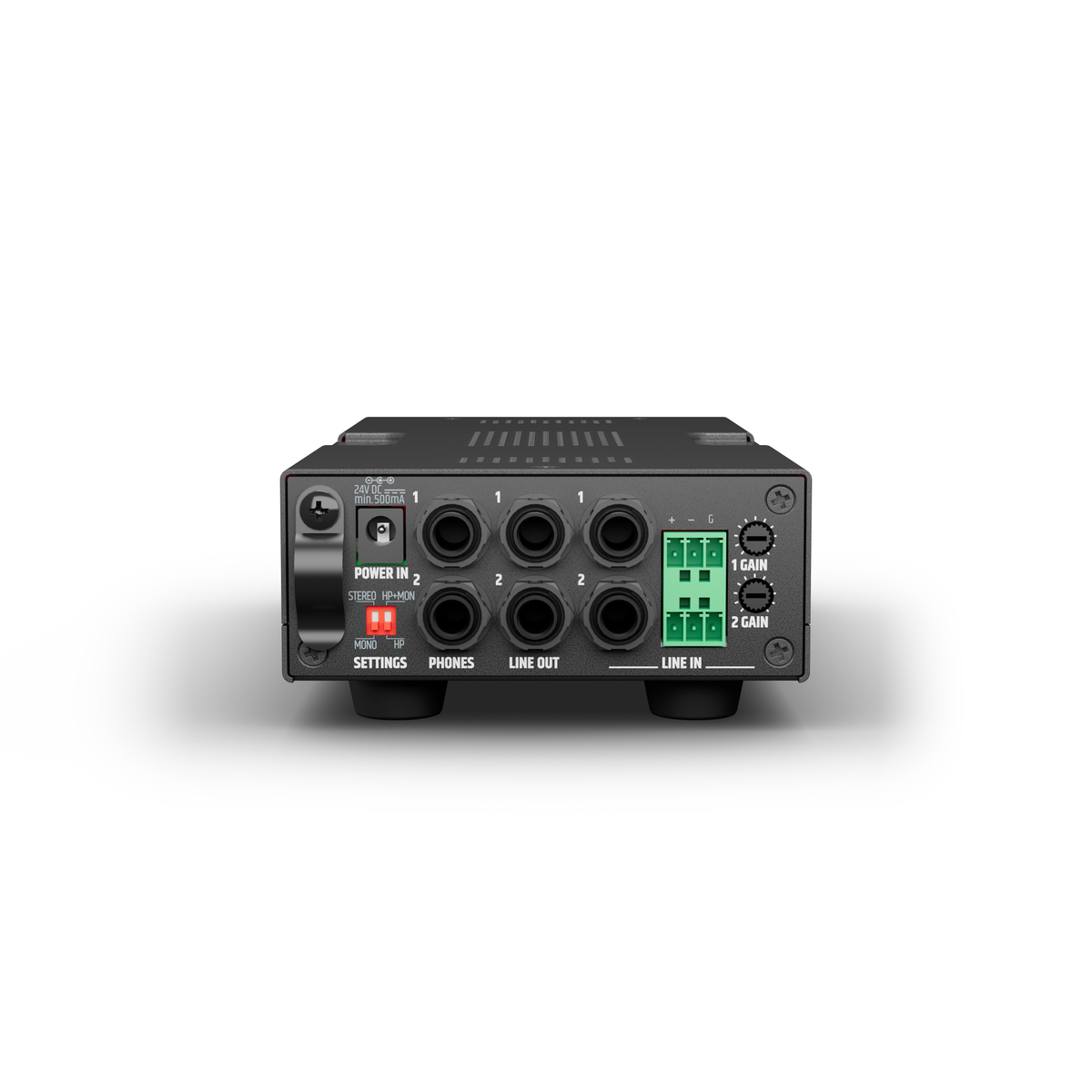

The two line inputs have independent gain control. Connect using standard 1/4" (6.35mm) jack or terminal block connections.

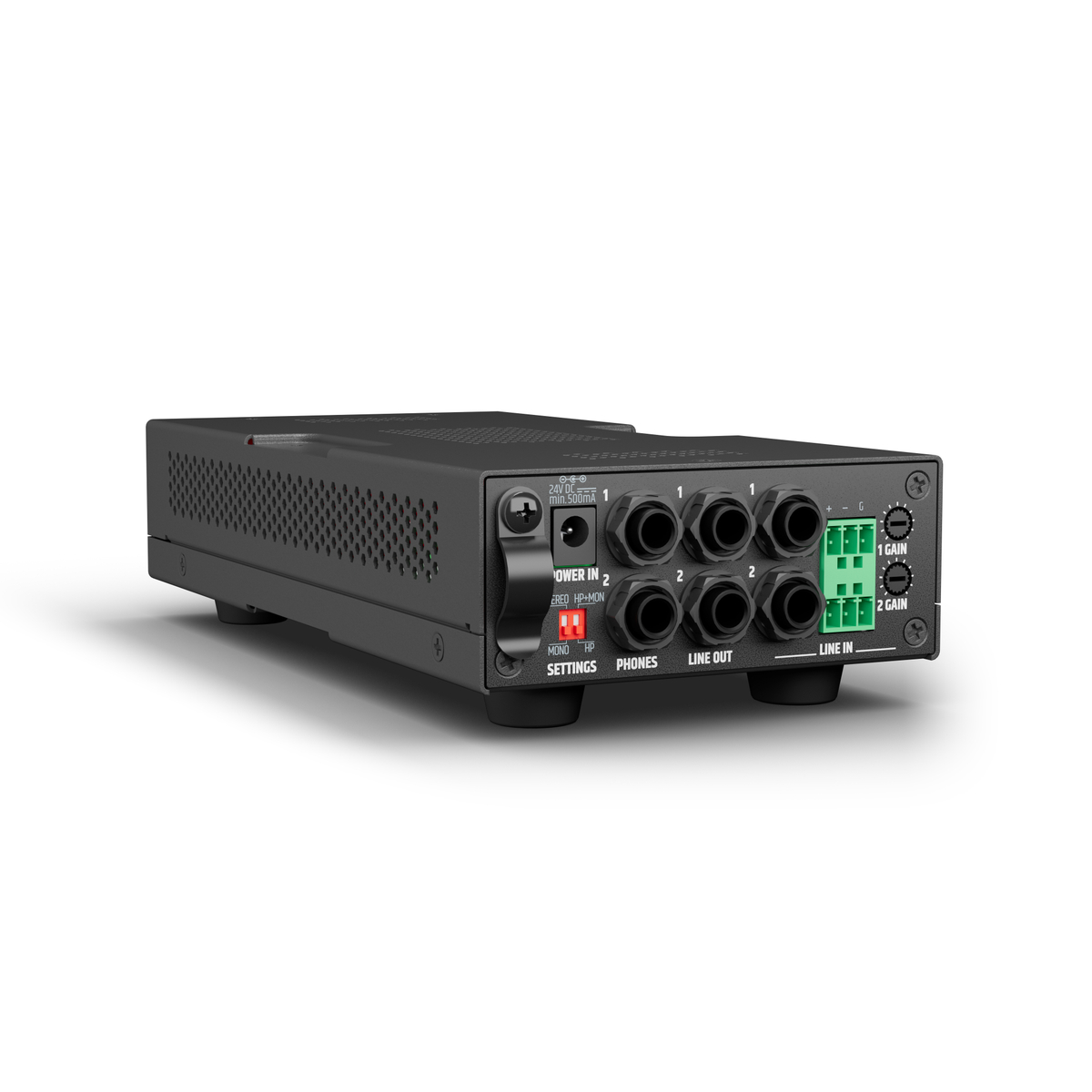

The HPA 2 comes with two headphone outputs and two line outputs using 1/4" (6.35mm) TRS jacks and two 3.5mm headphone outputs connected in parallel to these. Daisy chain multiple units together for group listening environments. Input signal and clip lights help you keep everything in check.

The configuration switches let two people listen to the same stereo signal with independent volume control, or listen to independent mono signals per headphone channel, acting as two independent headphone amplifiers. Further options let you configure the volume knobs for individual headphone volume control or configure one knob for global headphone volume control and the other as a separate monitor output level control.

The HPA 2 works with high impedance headphones and very low impedances down to16ohms. Its capacitor-free output stage means that the frequency response is not affected no matter what type of headphones you use - low or high impedance.

Its tiny (106 x 44 x 225) form factor and included mounting plates allow it to be installed discreetly. Alternatively, it fits into ¼ 19 inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

A great monitoring solution for audio professionals.

Specifications:

Product type: Installation Dual Headphone Amplifier

Line inputs: 2

Line input connectors: 2 x 6.3 mm (1/4") TRS, Pitch 3.81 mm terminal block (3-pin), Balanced line inputs

Line outputs: 2

Powered outputs: 2 x stereo

Cooling: Convection

Nominal input sensitivity: - 9 dBu

Nominal input clipping: 17 dBu

THD + N: < 0,03 %

Input impedance: 15000 Ohm(s)

SNR: > 100 dB (HP1/2 OUT, 14 dBu, 20 kHz BW, a-weighted)

CMRR: > 50 dB

Gain: Max. 12 dB

Line output signal: Balanced

Output modes: HP / HP+ MON, Stereo / Mono

Line output connectors: 2 x 6.3 mm (1/4") TRS

Max. Line Output Level: 15 dBu

Frequency range: 18 Hz - 50 kHz (-0,5 dB)

Type: Capless Output

Output modes headfones: HP / HP+ MON, Stereo / Mono

HP out connector: 2 x 3.5 mm (1/8") TRS, 2 x 6.3 mm (1/4") TRS

RMS output power: 2 x 75 mW @ 33 ohm

Minimum load impedance: 16 ohms

Frequency response (- 5 dB): 18 Hz - 50 kHz

Type1: External SMPS

Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz

Fuse: No

Secondary Voltage: 24 V DC

Secondary Current: 0.5 A

Secondary connector: Barrel connector 5,5mm / "+" inside

Primary Connector: External power supply with interchangeable plugs

Safety class: 3

Max. power consumption: 5W (sine 1kHz with 2x 33 ohm load)

Idle power consumption: 3.5 W (no signal input)

Standby power consuption: < 1 W

Mains Inrush Current: 1.7A @ 230V AC

Operating temperature ( non-condensing ): 0°C - 40°C; < 85% humidity

Material: Plastic Front panel, Steel chassis

Dimensions (W x H x D) ( height with rubber feet ): 106 x 53 x 225 mm

Accessories (included): External power supply with interchangeable plugs, Terminal blocks for electrical connections., Mounting plates for surface mount applications

Weight: 1,47 kg

Product code: LDHPA2

Unit of sale: piece
