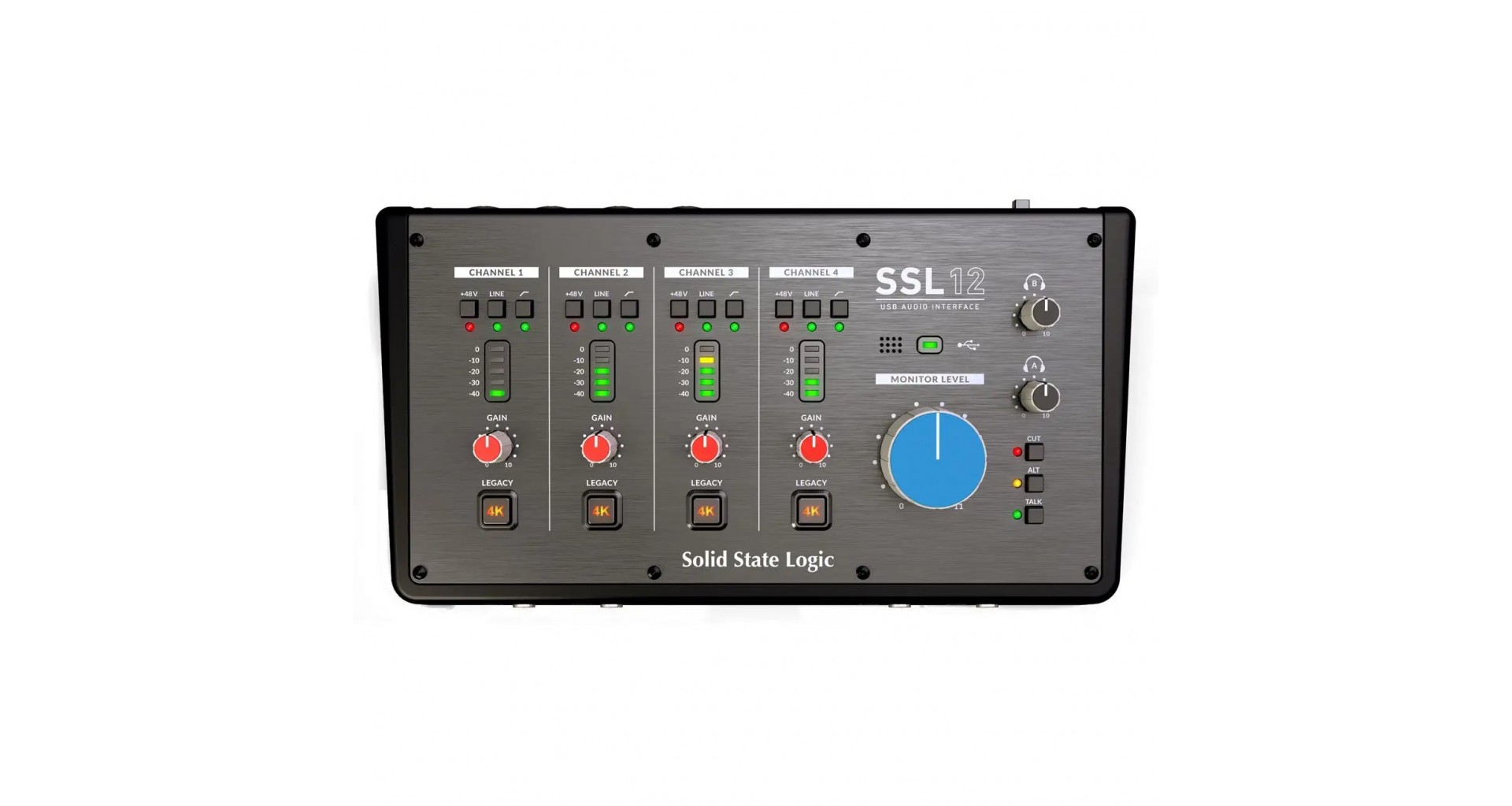

SSL 12 USB-C

SSL 12 USB-C - SSL 12 is a USB audio interface with 12 inputs and 8 outputs featuring 4 SSL analogue preamplifiers. The package also includes an SSL Production Pack software bundle.

The front panel features access jacks for 2 DI inputs for instruments and 2 independent outputs for headphones.

At the back, the SSL 12 has Neutrik® XLR Combo for Mic/Line inputs, TRS jack outputs for 2 sets of speakers, 5-pin MIDI DIN I/O, 8 channels of digital audio input via ADAT, a USB connector, and a power button.

• Legacy 4K switches per channel
• 2 x Hi-Z instrument inputs for guitars, bass, or vintage instruments
• 2 x headphone outputs
• 32-bit / 192 kHz AD/DA converters
• ADAT IN - expands the number of input channels by up to 8 channels of digital audio
• Built-in talkback that can be directed to outputs for headphones A, B, and Line 3-4
• 4 x dedicated balanced outputs and monitoring level
• USB Loopback with selectable source
• DC coupled outputs for controlling CV input instruments and FX
• 3 x user-assignable switches on the front panel
• SSL Production Pack software bundle including a free 3-month subscription to SSL Complete, plus an exclusive collection of DAWs, virtual instruments, and plug-ins.
• USB powered audio interface for Mac/Windows - powered via USB 3.0, audio through USB 2.0 protocol

Technical Specifications:

• System requirements and specifications:

  • Mac OS 10.15 or later
  • Windows 10, Windows 11 | Install the included ASIO/WDM driver
• Connectivity:

  • USB 3.0 Type C connector (Box includes Type C to C and Type C to A)
  • Microphone preamplifiers
  • 4 x XLR-¼.” combo (Mic/Line)
  • Microphone amplifier EIN (A-weighted): -130.5 dBu EIN
  • Microphone amplifier gain: 62 dB
• Instrument/Line:

  • 2 x ¼.” (Hi-Z)
  • Maximum instrument input level: +14 dBu
  • Maximum line input level: +24 dBu
  • Monitor outputs
  • Dynamic range: >.120 dB
  • Maximum output level: +24 dBu
• Headphone outputs:

  • 2 x ¼.”
  • Dynamic range: 112 dB (high impedance mode) / 115 dB (balanced line output mode)
  • Maximum output: +18 dBu (high impedance mode) / 24 dBu (balanced line output mode)
  • Output impedance: <.1 Ohm
• Digital inputs:

  • 1 x optical (ADAT)
• Sampling rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
