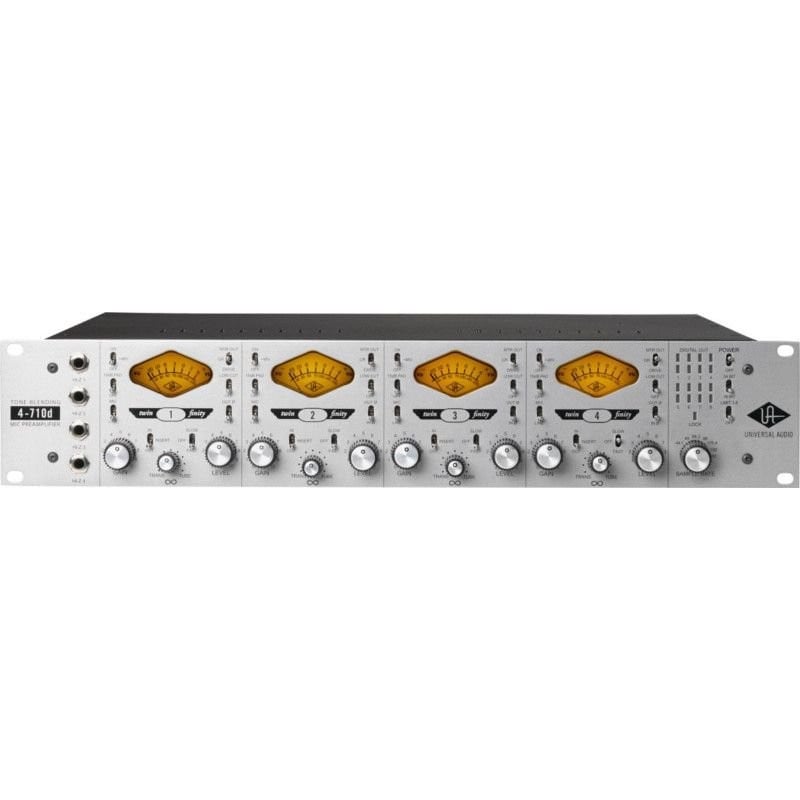

Universal Audio 4-710d

Universal Audio 4-710-d is an analog preamplifier with a classic analog design, including modern features and improvements in operation. With 4 high-end preamps that combine tube and solid-state tones, as well as classic 1176 compression for each microphone channel, the 4-710d also offers digital inputs/outputs to expand your setup.

• Four TEC 710 Twin-Finity preamplifiers, each with:
• Dual preamp - Class A tube 285V and solid-state with transimpedance.
• Combination of tube and solid state with aligned phases.
• 1176 type compressor for each preamp.
• D.I. input and high-impedance input with input protection.
• Backlit VU meters for input, gain level, and gain reduction.
• Balanced send-return.
• Phantom Power.
• Low cut 75 Hz.
• Polarity switch.
• Monolithic balanced output stage.

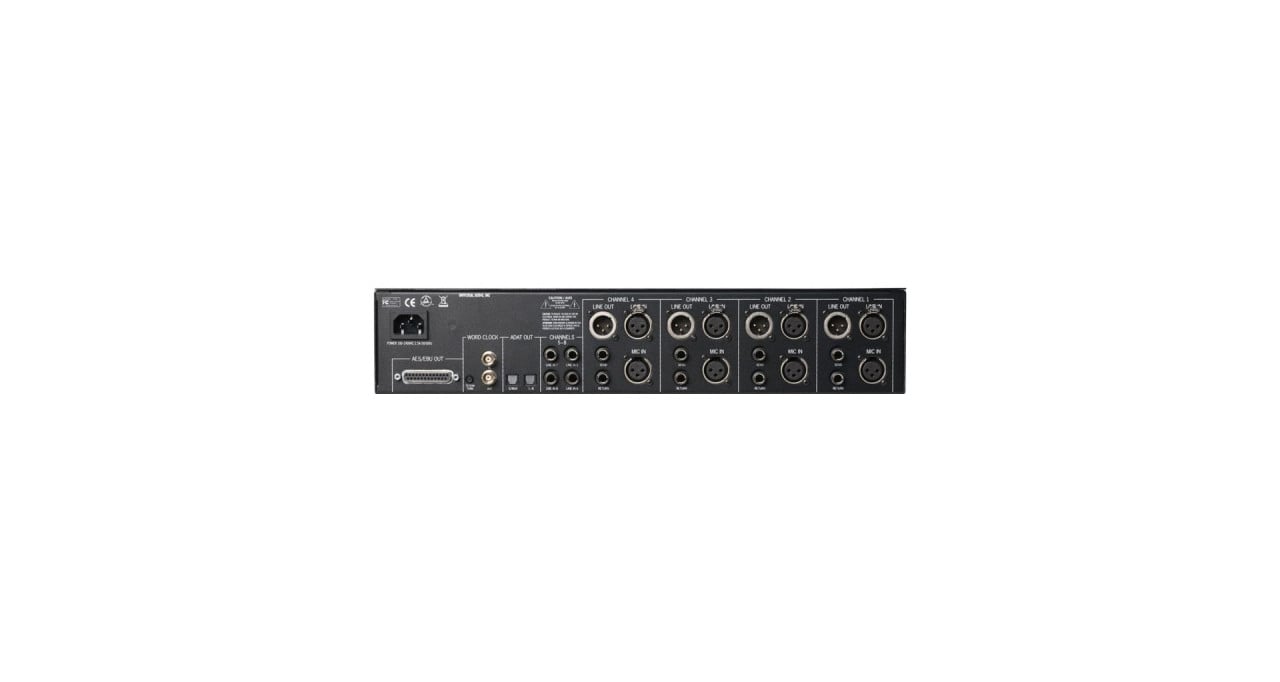

Connections:

• 4x XLR microphone input.
• 4x XLR line input.
• 4x line input jack.
• 4x Hi-Z input.
• 4x Send/Return (1x per microphone channel).
• 4x XLR connectors, ADAT & AES/EBU with line output.
• Wordclock I/O on BNC.
