LD Systems XS-700

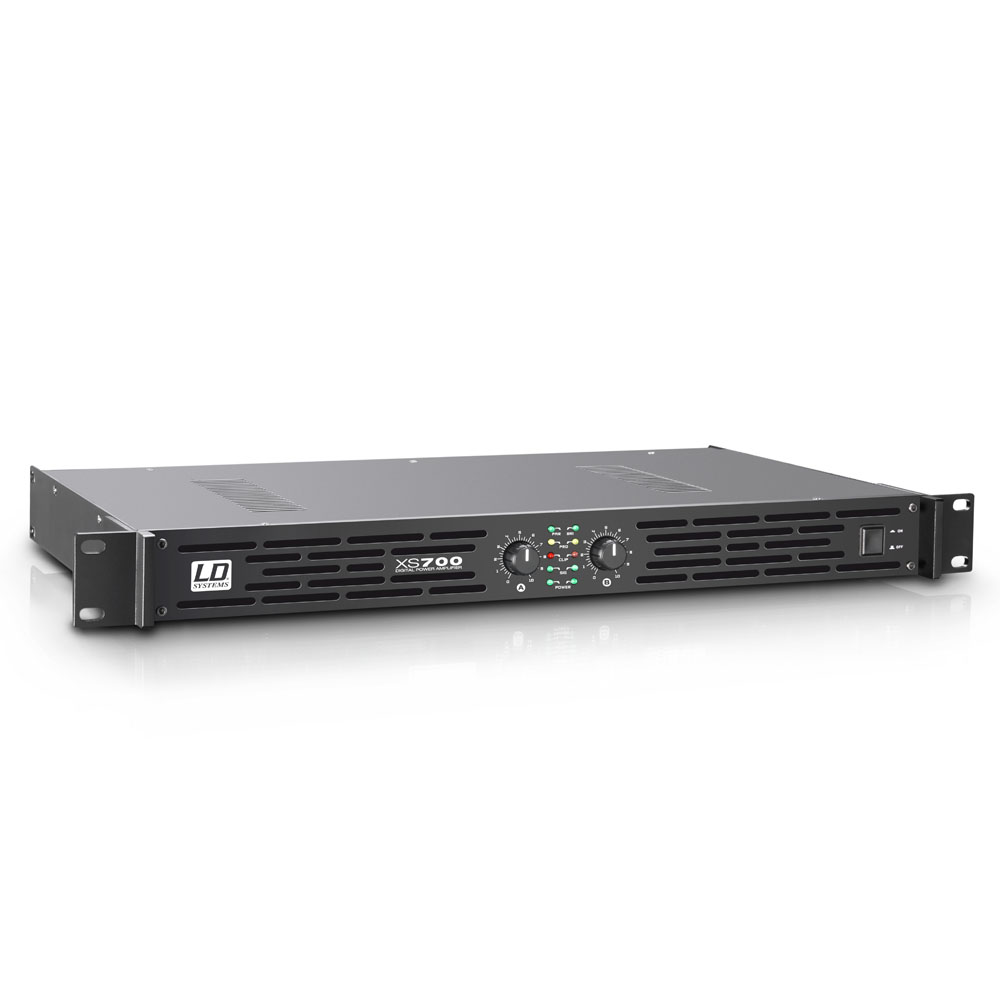

LD Systems XS-700 - power amplifier of 2 X 350 W 4 Ohm class D. It is the pinnacle of the XS series, featuring a construction that occupies only one rack unit, and weighs 3.4 Kg. It has various output options and power levels, 2x 350W at 4 Ohm, 2x 200W at 8 Ohm, and 700W in bridge mode. It is equipped with short circuit protection, overvoltage, overheating, and soft start delay. Inputs with XLR, RCA, and jack connectors, and speakon and screw outputs. On the back of the unit, the operating mode, gain level, limiter activation, and ground-lift function can be selected. On the front of the device, the LED indicators show operation, signal presence, clipping, protection circuit activation, and operating mode.

Technical specifications:

• Number of channels: 2
• Power (1kHz at 4 Ohms): 2 x 350W
• Power (1kHz at 8 Ohms): 2 x 200W
• Power (1kHz at 8 Ohms, in bridge mode): 700W
• Amplifier class: D
• Frequency response: 20 - 20000Hz
• THD: < 0.1 %
• Gain: 36 dB / 27 dB / 31 dBdB
• Protection circuits: overvoltage, soft start, overheating, short circuit, DC
• Controls: On / Off, ground lift, mode, Gain, volume, limiter
• Indicators: mode, protection (protection circuit activated), power, clip, signal
• Line inputs: 2
• Input connectors: RCA, 6.3 mm Jack
• Speaker outputs: 2
• Speaker output connectors: Speakon, screw
• Cooling: low noise fan
• Operating voltage: 115 V AC / 230 V AC (selectable)
• Dimensions (W/H/D): 482 / 44 / 244mm
• Weight: 4kg
