Fonestar SKY-8

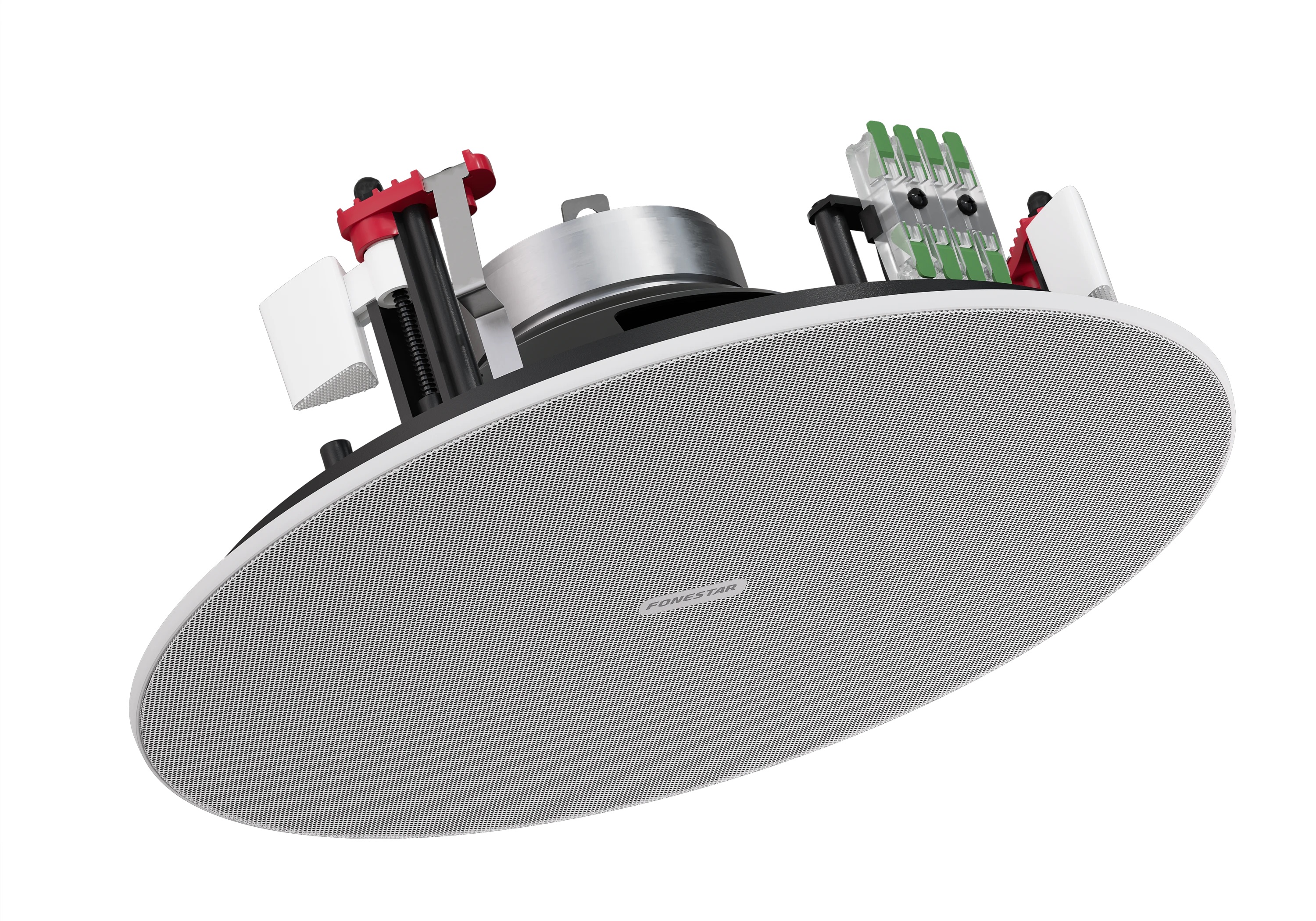

Fonestar SKY-8 - Ceiling speaker with low impedance, designed for professional installations where quality sound and discreet design are essential. With a frameless grille, paintable and without a visible logo, it offers impeccable aesthetic integration in any space.

It delivers 27 W maximum power, frequency response of 40–15,000 Hz, and an 8” polypropylene diaphragm with a dual cone for high fidelity. It is dust and splash protected (IP44) and features a quick, secure, and stable installation system, including quick terminals, spiral supports, and a safety hook.

Made from durable materials (UV-resistant ABS and corrosion-resistant aluminium), the SKY-8 is ideal for commercial and industrial projects requiring reliability, aesthetics, and excellent acoustic performance.

FEATURES:

• Low impedance ceiling speaker
• Frameless grille with a low profile, made of rust-resistant aluminium
• Detachable grille with a rotation fixing system
• Detachable and paintable logo
• Quick connection terminals with high conductivity
• Anti-fall system for safety during installation
• Safety cable hook
• Stable supports with spiral grip for ceiling mounting
• Protection against dust and water splashes

POWER:

• 20 W RMS
• 27 W MAX

DIAPHRAGM:

• Dual cone polypropylene diaphragm, 8''

FREQUENCY RESPONSE:

• 40 – 15,000 Hz @ -10 dB
• 90 – 15,500 Hz @ -3 dB

IMPEDANCE:

• 8 Ω

SENSITIVITY:

• 88 dB @ 1 W / 1 m

ACOUSTIC PRESSURE:

• 103 dB continuous @ max. W / 1 m
• 105 dB peak @ max. W / 1 m

COVERAGE ANGLE:

• H/V (-6 dB): 70° @ 500 Hz, 90° @ 1 kHz, 70° @ 2 kHz, 50° @ 4 kHz

PROTECTIONS:

• IP-44 according to IEC 60529
• Neutral salt spray test EN ISO 9227:2006

MATERIALS:

• UV-resistant ABS
• Liquid painted aluminium grille

CONNECTORS:

• Quick terminals, high conductivity
• Compatible with cables of 0.4 – 4 mm²

OPERATING TEMPERATURE:

• -20°C – 70°C (48 h)

STORAGE TEMPERATURE:

• 10°C – 40°C

MAXIMUM HUMIDITY:

• 95%

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Speaker: Ø 306 mm x 114 mm height
• Grille section: 7 mm
• Built-in height: 107 mm
• Mounting cutout: Ø 273 mm
• Maximum ceiling thickness: 30 mm

WEIGHT:

• 1.3 kg

ACCESSORIES:

• Installation template
