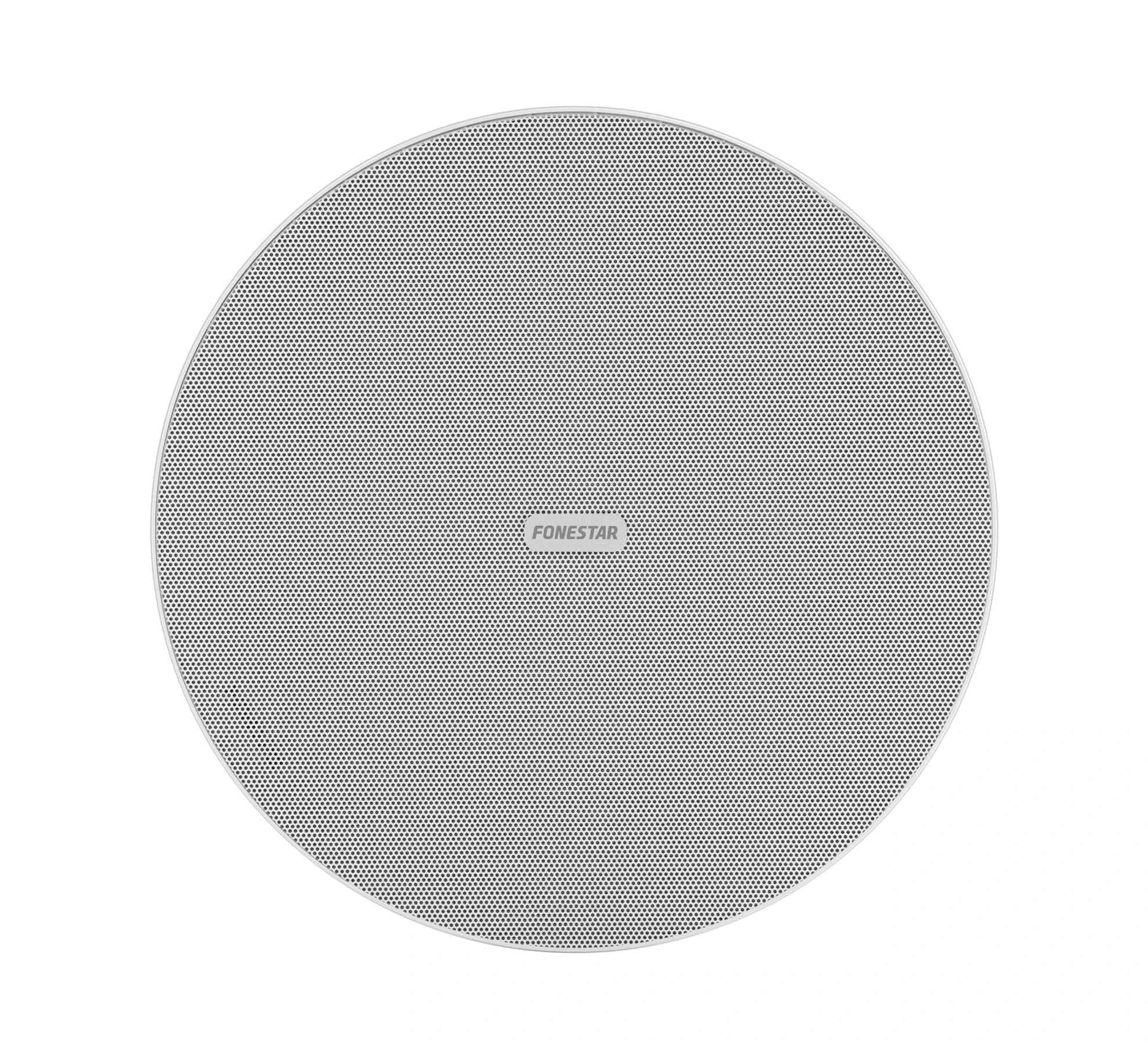

Fonestar SKY-6T

Fonestar SKY-6T - Ceiling speaker, specially designed for 100 V line sound systems. With an elegant design and a low profile, this model is ideal for professional installations in commercial spaces, offices, hotels, or public buildings where uniform sound distribution is essential without compromising aesthetics.

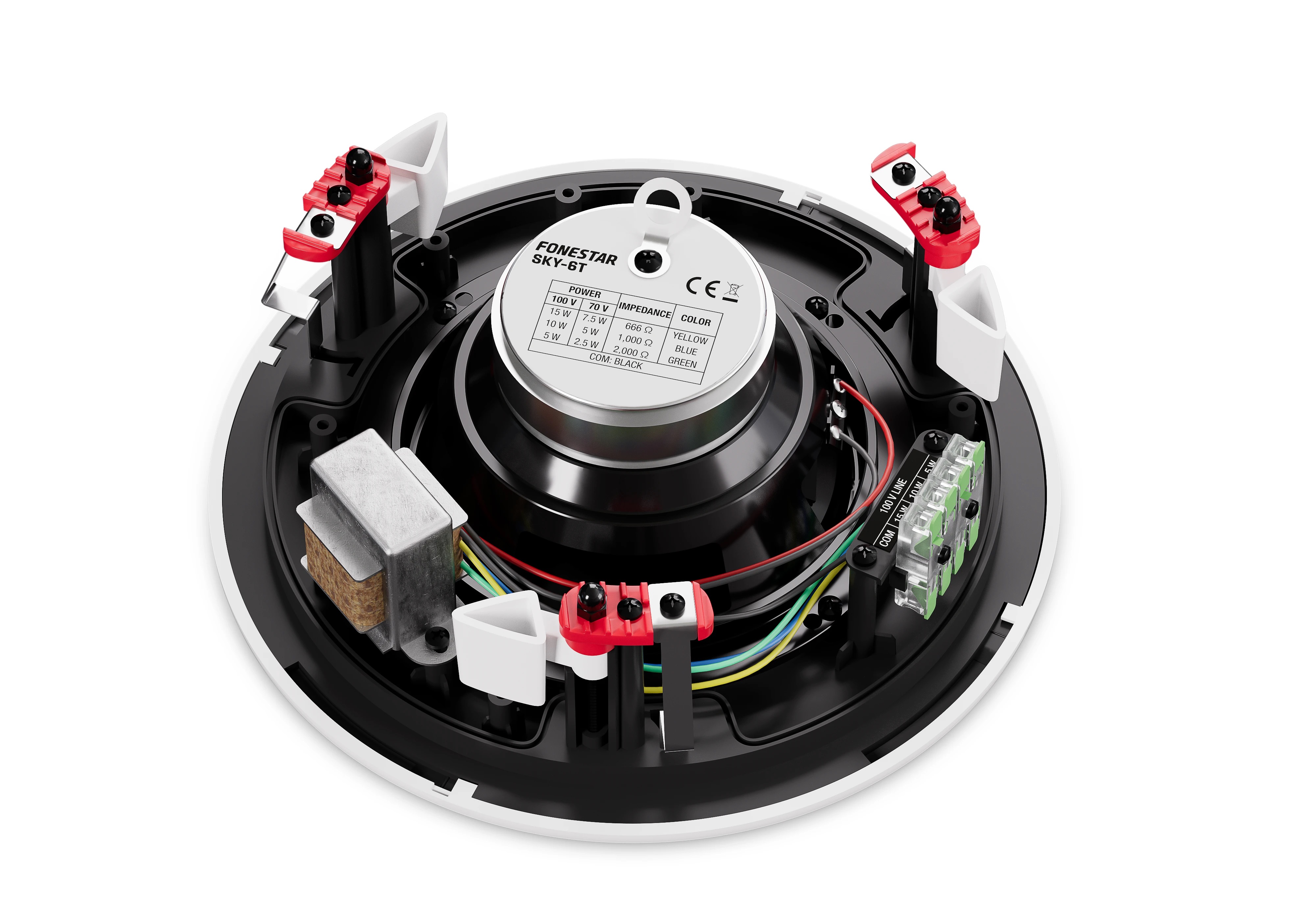

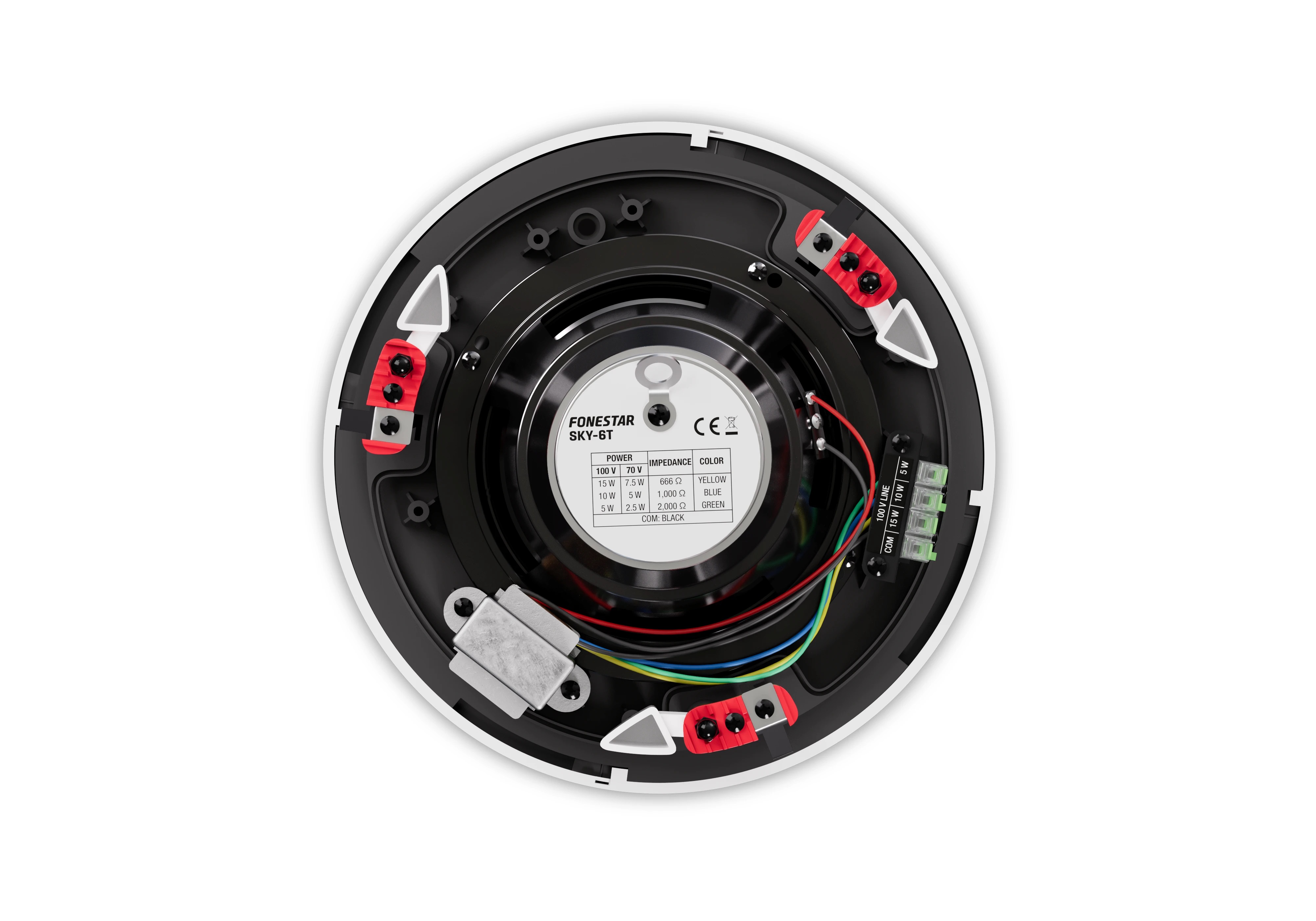

Equipped with a 6” coaxial speaker and a polypropylene diaphragm, the Fonestar SKY-6T offers a balanced frequency response and clear sound quality, suitable for voice and ambient music. It includes a multi-tap line transformer (1.25/2.5/5/10/20 W), allowing easy adaptation to the acoustic requirements of each space.

The housing is made of UV-resistant ABS, and the grille is constructed from powder-coated aluminium, resistant to rust. The IP-44 protection makes it suitable for use in humid or dusty environments, and the corrosion resistance test ensures long-term durability. Installation is quick and secure, thanks to the anti-fall system, quick-connect terminals, and mounting brackets with a screw mechanism.

FEATURES:

• Ceiling speaker with transformer for 100 V line

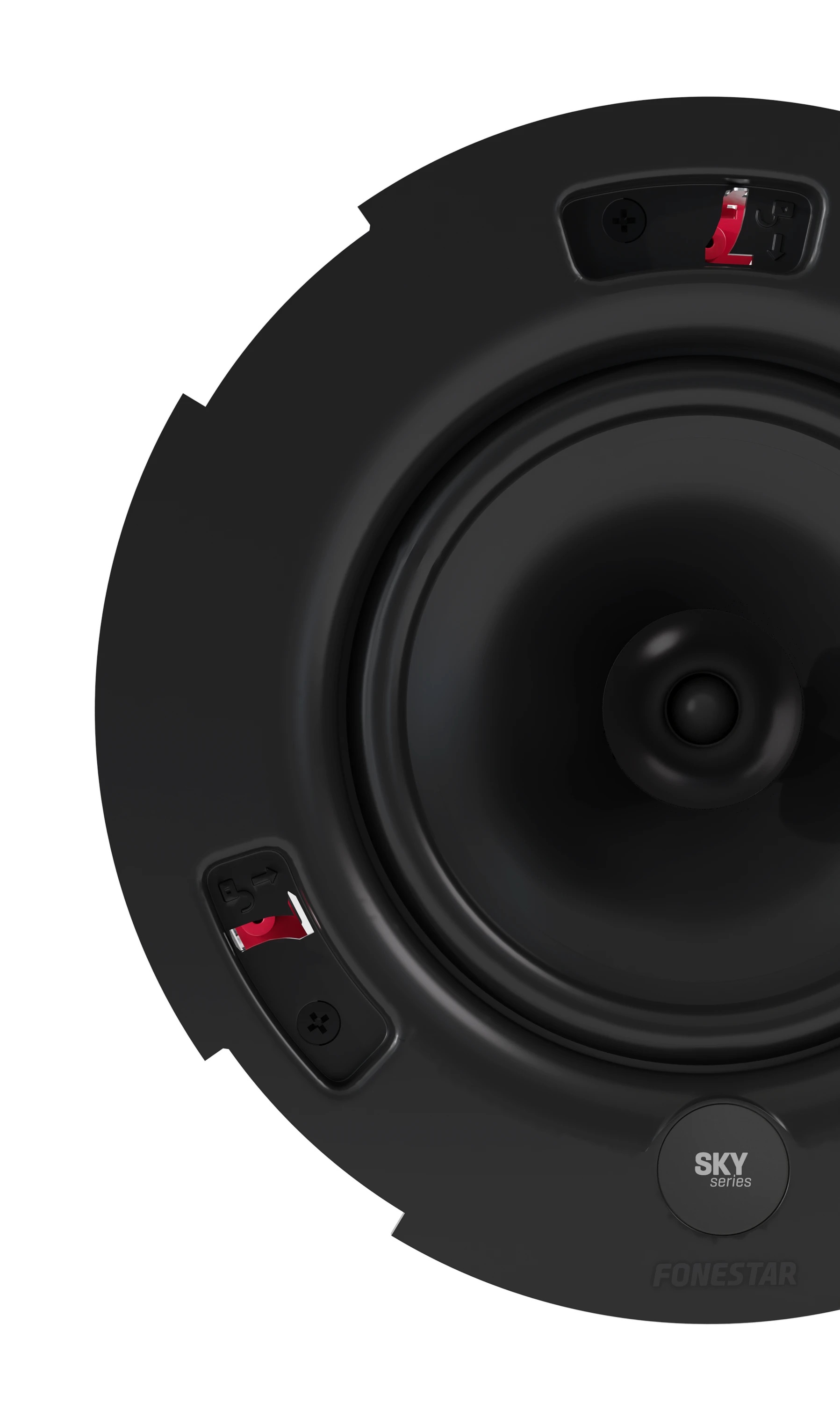

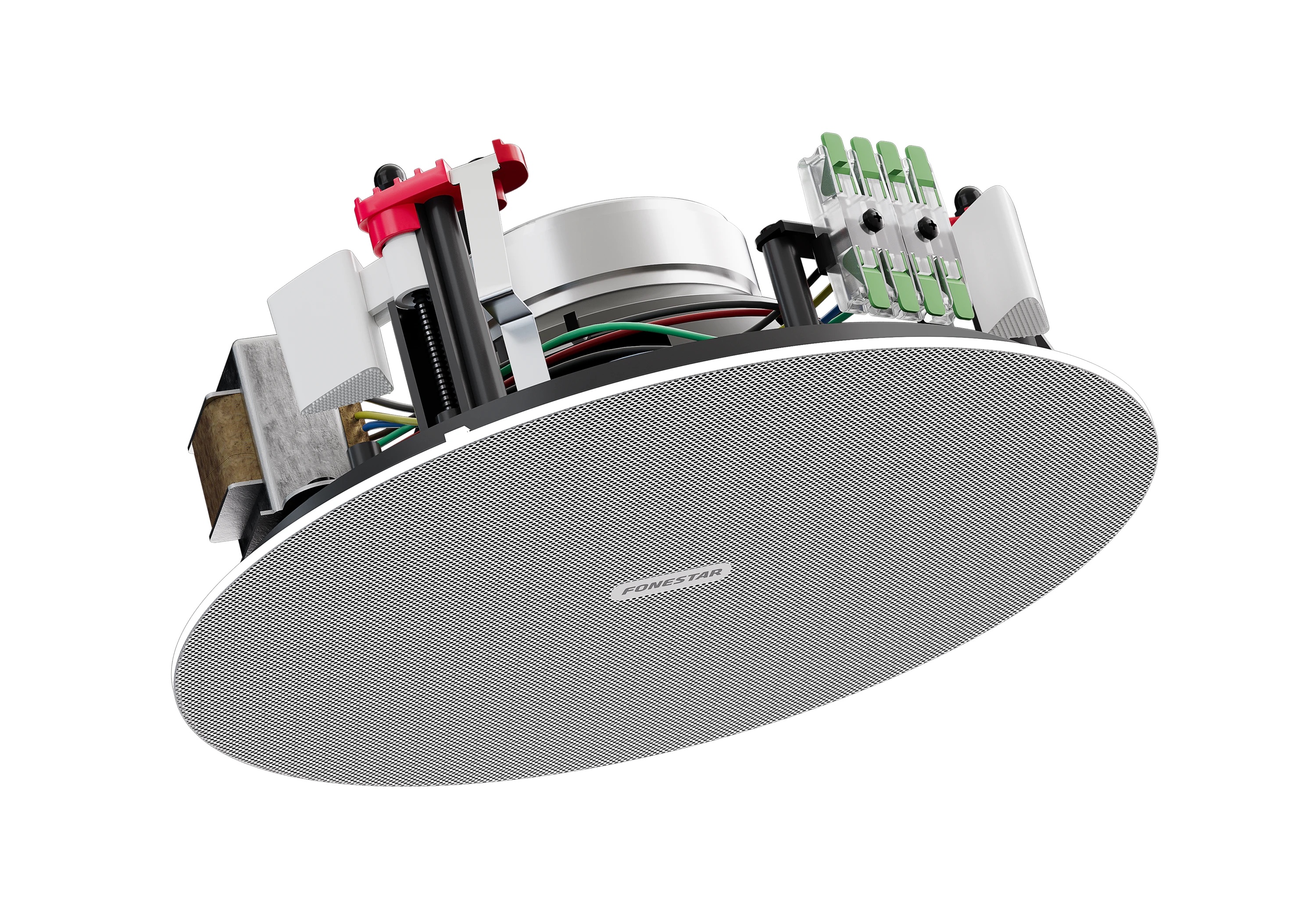

• Low-profile, rimless grille made of rust-resistant aluminium

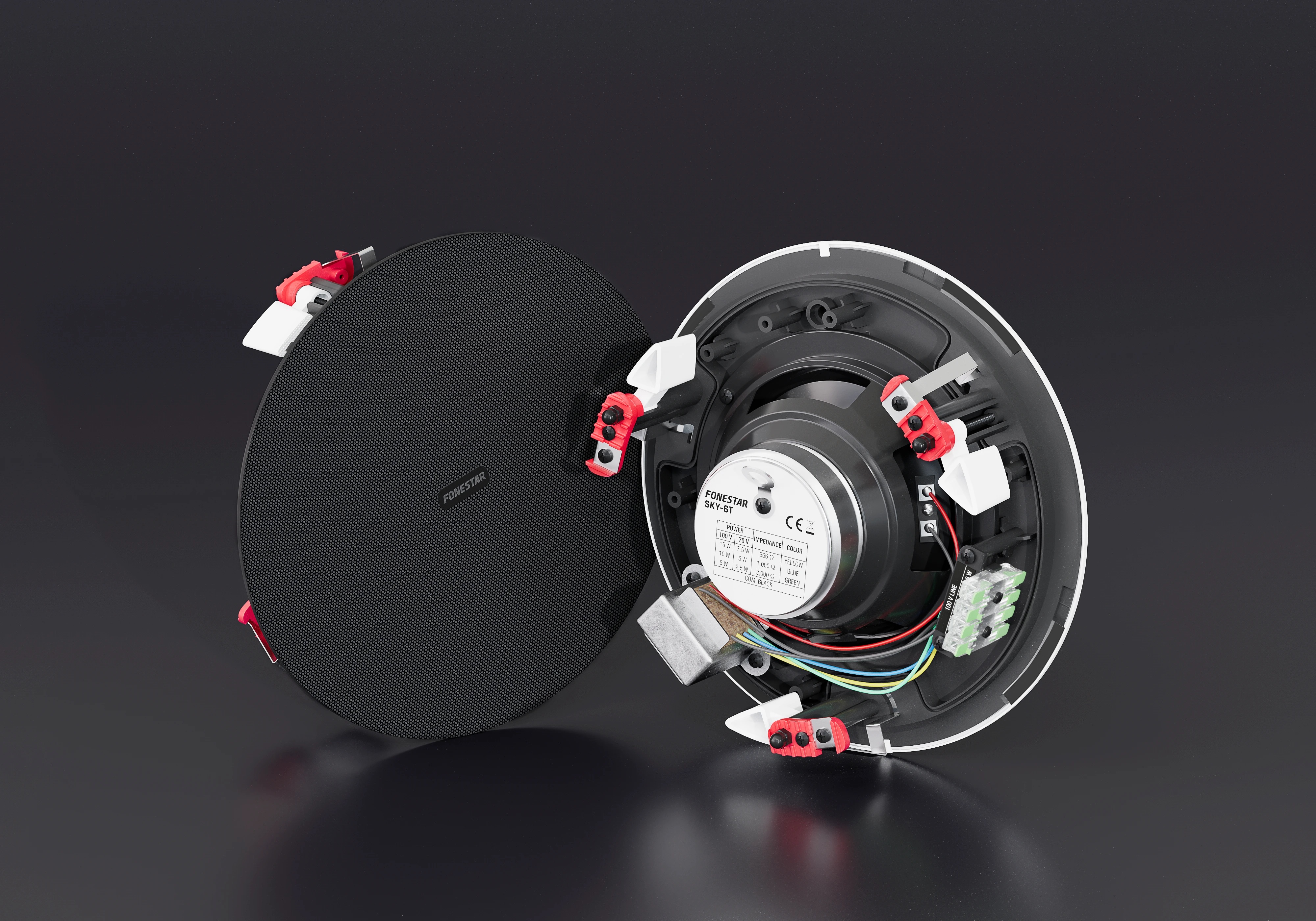

• Detachable grille with a rotation fixing system
• Detachable and paintable logo

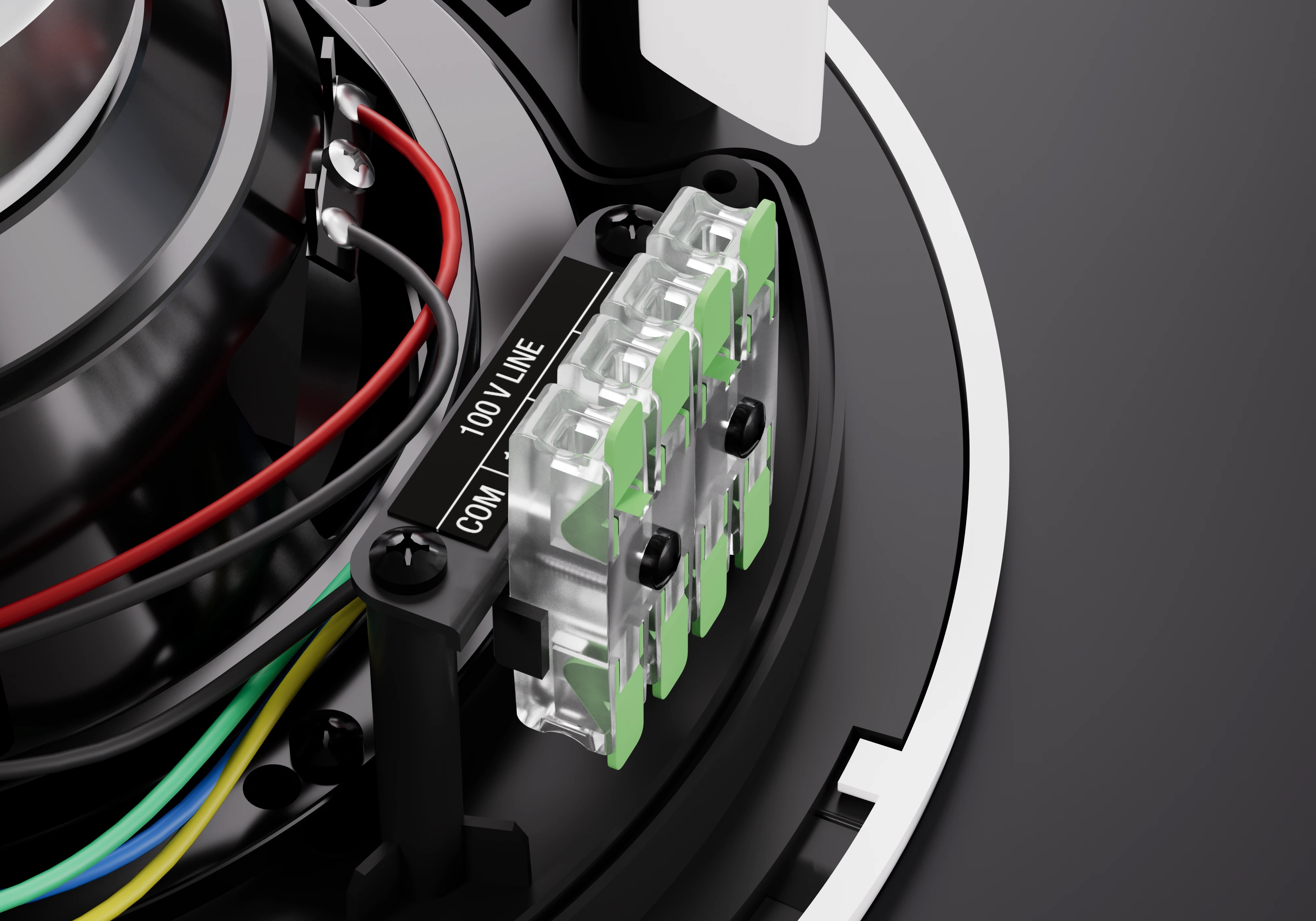

• Quick-connect terminals with high conductivity
• Anti-fall system for safety during installation
• Safety cable hook

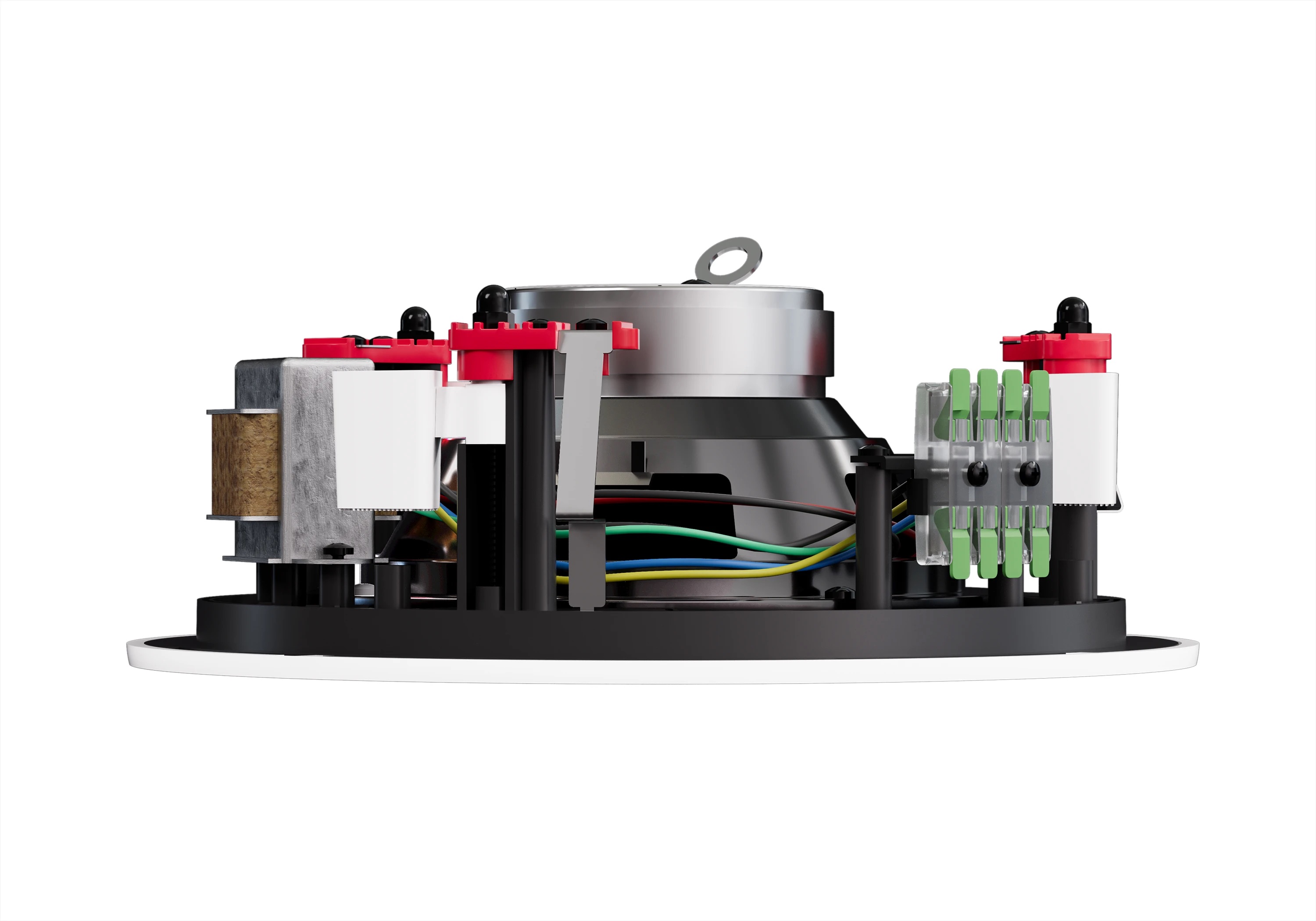

• Stable mounting brackets with screw grip for ceiling installation
• Protection against dust and water splashes

POWER:

• 15 W RMS
• 20 W MAX

DIFFUSER:

• Dual cone diaphragm made of polypropylene, 6''

FREQUENCY RESPONSE:

• 55–18,000 Hz @ -10 dB
• 85–18,000 Hz @ -3 dB

IMPEDANCE AND POWER LEVELS:

• 15 W RMS @ 100 V (666 Ω)
• 10 W RMS @ 100 V / 70 V (1,000 Ω / 490 Ω)
• 5 W RMS @ 100 V / 70 V (2,000 Ω / 980 Ω)
• 2.5 W RMS @ 70 V (1,960 Ω)

SENSITIVITY:

• 88 dB @ 1 W / 1 m

ACOUSTIC PRESSURE:

• 97 dB @ max. continuous, 1 m
• 100 dB @ max. peak, 1 m

COVERAGE ANGLE:

• 150° @ 1 kHz (-6 dB)

PROTECTIONS:

• IP-44 according to IEC 60529
• Neutral salt spray test EN ISO 9227:2006

MATERIALS:

• UV-resistant ABS
• Powder-coated aluminium grille

CONNECTORS:

• Quick-connect terminals, high conductivity
• Compatible with cables of 0.4 – 4 mm²

OPERATING TEMPERATURE:

• -20°C – 70°C (48 h)

STORAGE TEMPERATURE:

• 10°C – 40°C

MAXIMUM HUMIDITY:

• 95%

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Speaker: Ø 249 mm x 85 mm height
• Grille section: 5 mm
• Built-in height: 80 mm
• Mounting cutout: Ø 219 mm
• Maximum ceiling thickness: 30 mm

WEIGHT:

• 0.95 kg

ACCESSORIES:

• Installation template
