Palmer PRM-MS

Microphone signal splitter

4-channel modular passive microphone signal splitter.
each channel features an input and output for phantom power.
2x isolated transformer outputs per channel.
maximum input level of +4 dB.
durable metal housing with electrostatic paint finish.

321⁷⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1606 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Palmer PRM-MS Add to cart: 321⁷⁶ €

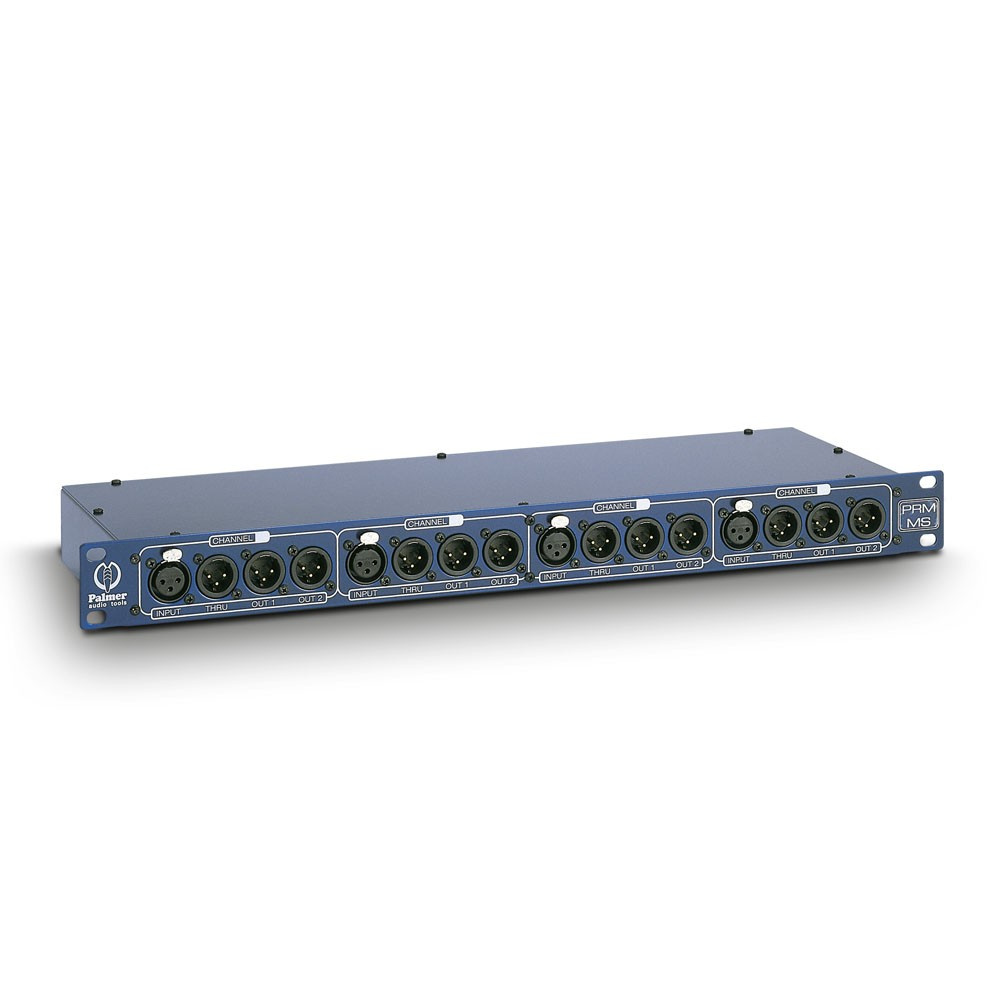

Palmer Pro PRM-MS - modular passive microphone signal splitter with 4 channels. Each channel has an input and an output connected in parallel, allowing phantom power to pass through, and 2x isolated transformer outputs. Each output has the option to be decoupled via a resistor. Nominal input/output impedance is 200 Ohms. Maximum input level is +6 dBu.

Technical specifications:

Type: microphone splitter
Channels: 4
Inputs: 1
Input connectors: XLR
Maximum input level: +4 dB
Number of split outputs per channel: 2
THRU outputs per channel: 1
Maximum output level: +4 dB
Output connectors: XLR
Isolated transformer outputs: yes
Housing: metal
Finish: electrostatic paint
Dimensions (W/D/H): 480x165x44.5 mm
Weight: 2.18 kg
